Depeng Factory Supply High Precision Small Laser Cutter Laser Cutting Machine For Art Craft Industry

Views: 0     Author: hu     Publish Time: 2022-11-25      Origin: dapeng

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Depeng Factory Supply High Precision Small Laser Cutter Laser Cutting Machine For Art Craft Industry

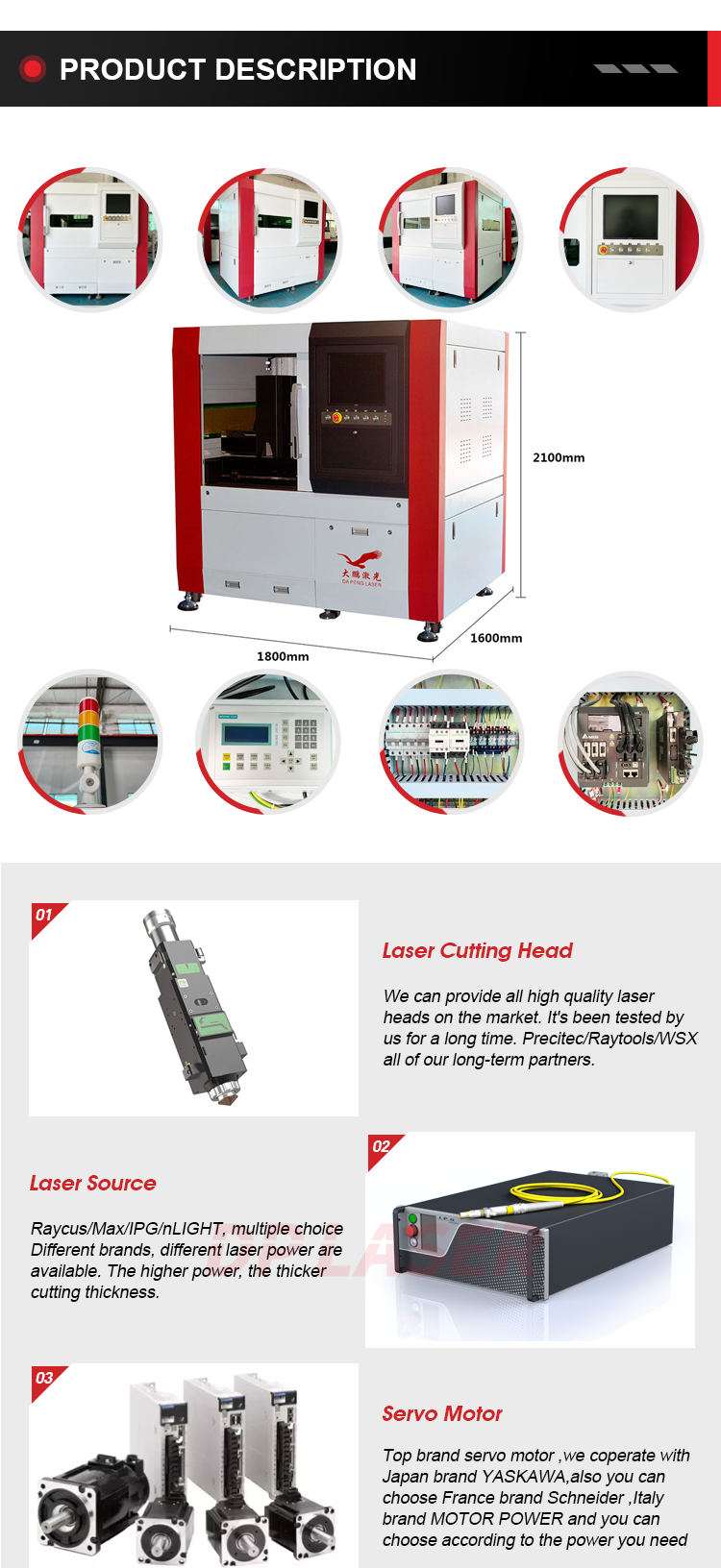

Product Description：

Specification：
Model
DPE-0606L
Laser source type
Fiber source
Laser Out Power
1070nm
Laser wavelength
500W-2200W
Cutting range
600×600mm
Minimum line width
<0.1mm
Transfer method
Double Drive Linear Motor
Cutting speed and thickness
Depending on  specific material
Repeatability
±0.02mm
Machine operating temperature
0~40℃
Electricity demand
380V/50Hz
Cooling method
Water cooling
Continuous operating time
24 hours
Weight
6500KG
Dimensions
1850×1400×1900mm
Maximum operating speed
120m/min
Maximum acceleration
1.2G
X/Ypositioning accuracy
0.03mm
Minimum slit width
0.15mm
Features:

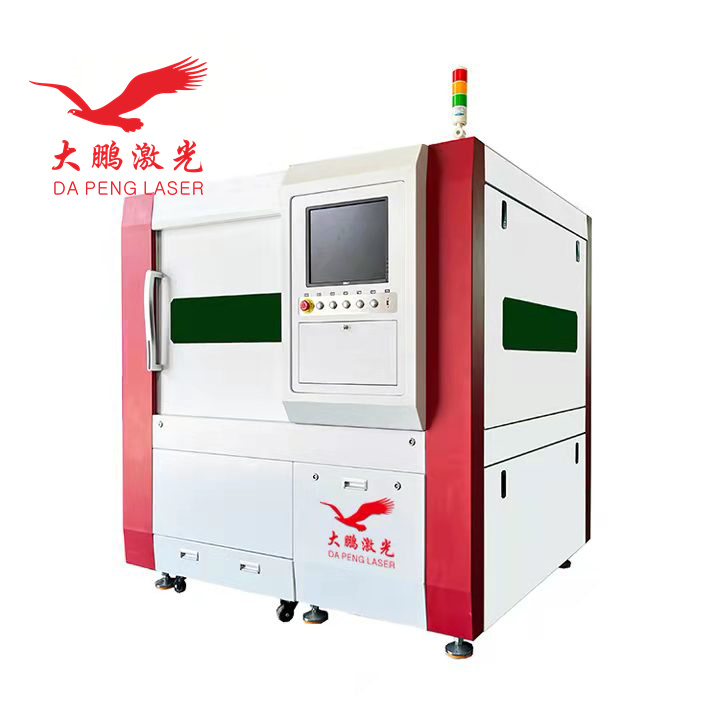

0606L Fiber precision Laser Cutting Machine
Adopt gantry type structure, linear motor, guide rails adopt fully enclosed protection, reduce dust pollution; Double-side drive with linear motor, high precision, high acceleration, fast speed;
Laser processing is a non-contact flexible processing, not affected by the shape of the workpiece, can process arbitrary graphics;
Dedicated laser control system, powerful, quick to master, low entry to technical personnel. Can cut a variety of metal foil, mainly used for silver foil, copper foil;
Mainly used in jewelry, glasses and other industries.
