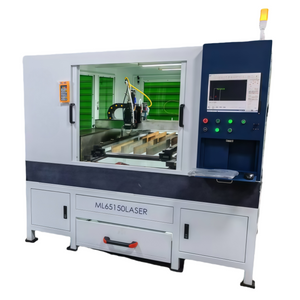

Full Enclosure Cover Fiber Laser Cutting Machine with Pallet Changer

Full Enclosure Cover Fiber Laser Cutting Machine with Pallet Changer. It is available with
• Most proven for industrial fabrication
• More power for more speed for higher thickness of material.
• Option of Automatic Pallet changer system get maximum production to achieve targets
• Increased safety

Quantity:
  • DPL-F4020D
  • DAPENG LASER

Full Enclosure Cover Fiber Laser Cutting Machine with Pallet Changer

How Laser Cutting Works:

Laser cutting is a technology that uses a laser to cut materials, and is typically used for sheet metal fabricators, but is also starting to be used by schools, small businesses, and hobbyists. Laser cutting works by directing the output of a high-power laser most commonly through optics. The laser optics and CNC (computer numerical control) are used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas,  leaving an edge with a high-quality surface finish. Industrial laser cutters are used to cut flat-sheet material as well as structural and piping materials.


DP Laser Advantage Features:

1) Cost saving on power consumption/ only 20-30% of co2 laser cutting machine

2) Higher cutting speed 120m/min and Imported servo motor and gearing system ensure precision cutting

3) Easy of operation

4) Error detection, diagnosis & solution

5) Scan cutting: Short distance cutting without head lifting

6) Automatic search edge function: if work piece put slanting, machine can auto detect it and automatic adjust cutting, so less waste of material and no need to move the metal sheet

7) Memory cutting: Once power off suddenly, the software has memory of cut stop point, when power on, the machine will continue cutting from the break point.

8) Adopts Proportional Valve: Control the air pressure automatically replace of manually, save much time.

9) Safety Features : Pause / Emergency Stop (can we pause or stop machine during cutting )

10) Stable working table: DAPENG cutting bed around 6.5 tons in weight, Dual drive, aging treatment, stress relief test, make sure longe time lasting without changing shape.

11) Automatic pallet changer get maximum production to achieve targets

12) Full enclosure body cover increased safety


Applicable Materials:
Stainless steel, Mild steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.



Full Enclosure Cover Fiber Laser Cutting Machine with Pallet Changer SPECIFICATIONS:


Model

DPL-F4020D

Laser power

1000W/1500W/2000W/3000W

Cutting area(mm)(L×W)

3000mm×1500mm

Max cutting speed(m/min)

120 m/min

Max Accelerated

1.5G

Positioning accuracy

±0.02mmmm

Repeatability accuracy

±0.02mm

Min line width

0.1mm

Max Cutting depth (MS)

12mm/14mm/16mm/20mm

Stainless Steel N2

5mm/6mm/8mm/10mm

Aluminum

3mm/4mm/6mm/8mm

Driving Way

Imported servo motor

Tranmission Way

Imported gear rack & pinion double driver

Electrical Requirements

380V/50Hz.60Amp

Power Consumption

12KW/15KW

Work Piece Weight

800kg

Weight

8800kg

Outline size(mm)

10500mm×3500mm×1980mm(L×W×H)


DP 3015 FIBER LASER CUTTING MAIN COMPONENTS LIST:


No.

Description

Made of origin place and Manufacturer

1

Fiber Laser source

RAYCUS or IPG

2

Laser Head

Raytools, Precitec

3

Guide Rails

Hiwin from Taiwan or RexRoth Guide rail

4

Rack & Pinion

YYC from Taiwan or Appex Race pinion gear.

5

Speed Reducer

Shimpo from Japan

6

Servo Motor & Driver

Schneider from France or yaskawa servo motors

7

Proportional Valve

Aventics from Germany

8

Pneumatic Components

Airtac from Taiwan

9

Circuit Breaker

Schneider from France

10

Relay

 Omron from Janpan

11

Chiller

China TONGFEI

12

Cutting System

China Cypcut

13

Bed

DAPENG 7800kg

14

Cable Carrier

IGUS

15

Free Consumable with machine

Nozzles 20 sets, Protective windows 10 nos.,  Mounting plates , Rubber Gloves and cleaning Buds
