DPH-1000/1500/2000-SC
DAPENG
DPH-1000/1500/2000-SC

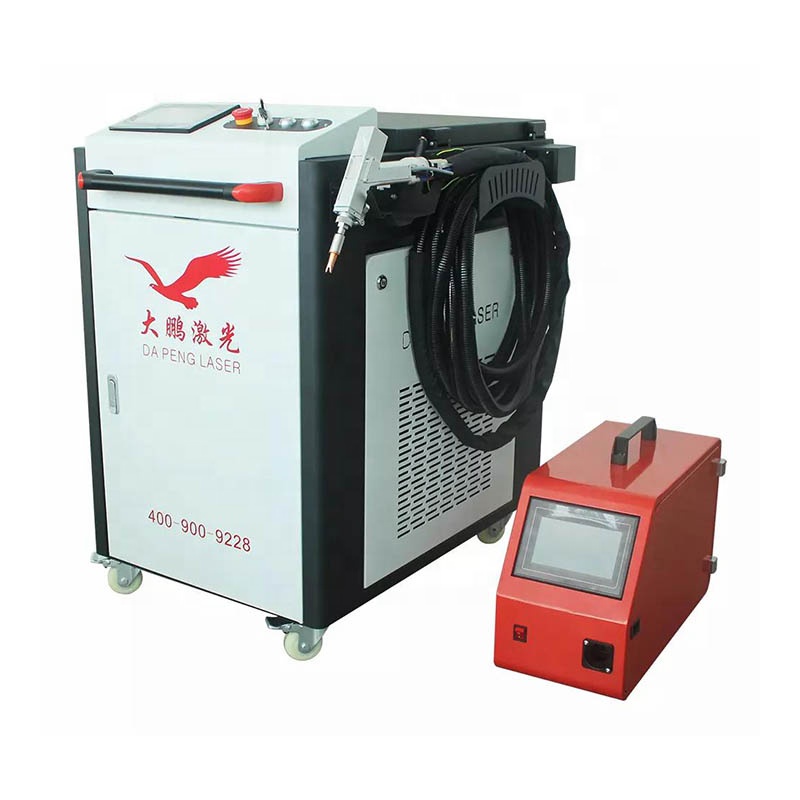

DPH-1000/1500/2000-SC handheld laser welding machine
1000w Low price portable handheld laser welding machine for aluminum iron stainless steel tubes
Model features:
1.High energy density, low heat input, small amount of thermal deformation, and narrow melting depth in the heat and heat affected zone of the melting zone.
2.The cooling rate is high, so that the weld structure can be fine and the joint performance is good.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly improving work efficiency.
4.The weld is fine, the penetration is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs
6.The laser is transmitted through the optical fiber and can work with the assembly line or the robot.
7.The touch switch is equipped with a safety clip, and the laser beam can only be emitted when the welding nozzle touches the metal.
8.Red light positioning is used to verify the position during welding.
9.The laser welding machine adopts 1000-2000 watt fiber laser source, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times that of YAG laser.
Model | DPH-1000 | DPH-1500 | DPH-2000 | DPH-3000 |
Laser Out Power | Fiber source | Fiber source | Fiber source | Fiber source |
Laser Source Type | 1000W | 1500W | 2000W | 3000W |
Laser Wavelength | 1070nm | 1070nm | 1070nm | 1070nm |
Laser Source | Raycus/Max/IPG | Raycus/Max/IPG | Raycus/Max/IPG | Raycus/Max/IPG |
Focal Spot Diameter | 0.5-2mm | 0.5-3mm | 0.5-4mm | 0.5-5mm |
Laser Frequency | 1-50Hz | 1-50Hz | 1-50Hz | 1-50Hz |
Repeatability | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
Machine Operating Temperature | 0~40℃ | 0~40℃ | 0~40℃ | 0~40℃ |
Electricity Demand | 220V/380v | 220V/380v | 220V/380v | 220V/380v |
Cooling Method | Water chiller | Water chiller | Water chiller | Water chiller |
Continuous Operating Time | 24 hours | 24 hours | 24 hours | 24 hours |
Weight | 150kg | 150kg | 150kg | 150kg |
Dimensions | 120*60*104cm | 120*60*104cm | 120*60*104cm | 120*60*104cm |
Laser Control System | Dapeng Touch screen | Dapeng Touch screen | Dapeng Touch screen | Dapeng Touch screen |

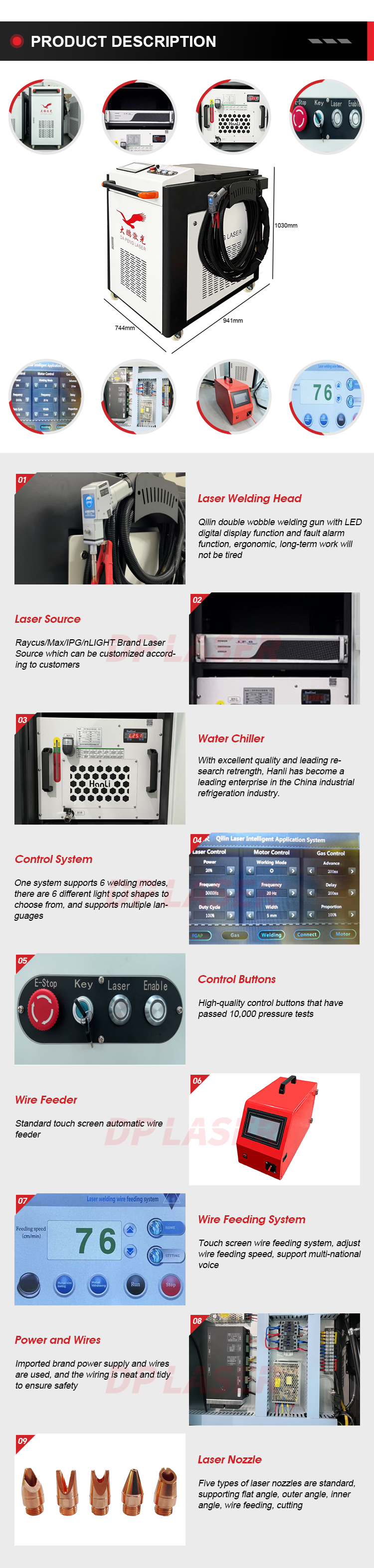

Product details
Hand-held laser welding machine with raycus continuous fiber laser and suplaser hand-held welding head
The light of the laser is transmitted by the optical fiber line to the hand-held laser welding gun and emits the laser. The laser becomes heat and is transferred to the surface of the carrying object for melting or the welding wire is melted. The welding bead is formed by the auxiliary inert gas protection, so that the two objects are firmly bonded together. .
(The chiller water flows to the laser and the hand-held welding head to cool down and maintain the temperature, thereby protecting important components.)
Worthing Hand-held welding head ND18A
Product features The internal design is smart, with a good interactive control system, which expands the tolerance range of the processed parts and the width of the welding seam, solves the disadvantage of small light spot, and makes the welding seam better. The shape is light, and the body engineering design method is adopted, and the grip is comfortable; it is easy to grasp with one hand, and the operation is simple and easy to use. With multiple safety alarms, the light will be automatically locked after the workpiece is removed, which is highly safe. The welding seam is beautiful, the speed is fast, and there is no need for later polishing after welding. It can be equipped with wire nozzle components and various angle copper nozzles to meet the welding needs of different products. Product size Product parameters Maximum power 1500W Collimation focal length 50mm Focus focal length 150mm Weight 1
Product Features
The internal design is smart, with a good interactive control system, which expands the tolerance range of the processed parts and the width of the welding seam, solves the disadvantage of small light spots, and makes the welding seam better.
The shape is light, and the body engineering design method is adopted, and the grip is comfortable; it is easy to grasp with one hand, and the operation is simple and easy to use.
With multiple safety alarms, the light will be automatically locked after the workpiece is removed, which is highly safe.
The welding seam is beautiful, the speed is fast, and there is no need for later polishing after welding.
It can be equipped with wire nozzle components and various angle copper nozzles to meet the welding needs of different products.
MFSC 700W-1500W single-mode continuous fiber laser adopts modular design, highly integrated system, maintenance-free, and high reliability. The laser power is continuously adjustable, with high beam quality and high laser stability. It is an ideal laser source for laser fine cutting, precision welding and other applications. Using optical fiber with QBH head output, it can be used with laser processing heads, galvanometers, etc. to integrate with robots, machine tools, etc., and is widely used in 3C, hardware, medical, automotive, aviation and other fields.
Product Description
MFSC 700W-1500W single-mode continuous fiber laser adopts modular design, highly integrated system, maintenance-free, and high reliability. The laser power is continuously adjustable, with high beam quality and high laser stability. It is an ideal laser source for laser fine cutting, precision welding and other applications. Using optical fiber with QBH head output, it can be used with laser processing heads, galvanometers, etc. to integrate with robots, machine tools, etc., and is widely used in 3C, hardware, medical, automotive, aviation and other fields.
Product leaflet
Product Manual
Modular design, stable performance
The internal structure adopts the photoelectric module separation design, and the operating performance is more stable
Easy maintenance, reducing downtime
Optical modules, electrical modules, control units, and drive units can be directly replaced, upgraded, and maintained at the client
Can be customized to meet a variety of needs
Users can choose fibers with different core diameters according to different processing needs to meet differentiated processing needs
Even spot energy distribution, stable processing
Reduce welding spatter, thick plate cutting ability is more stable
Multi-scene, wide application
It can be used with laser processing heads, galvanometers, etc. for system integration with robots, machine tools, etc., for laser fine cutting, precision welding, and application in 3C, hardware, medical, automotive, aviation and other fields
MFSC-2000W Single Module Continuous Fiber Laser
It can be quickly and conveniently integrated into machine tool equipment and automated production lines of large processing manufacturers.
Product Description
Chuangxin Laser's new generation single-module 2000W laser, this product integrates high power, lightweight size, humanized control, high-quality beam quality, and high light conversion efficiency. It can meet the requirements of precision processing. 3C product welding and high-reflection material cutting capabilities are significantly improved. It is suitable for remote processing. The laser cutting frequency is high and the cutting surface is smooth. It can be quickly and conveniently integrated into machine tools and large-scale processing manufacturers' automated production lines.
High power output, compact size
Combines high power, compact size, user-friendly control, high-quality beam quality, and high light conversion efficiency in one
Modular design, easier to maintain
Adopt photoelectric separation design, quickly replace the optical path or circuit module on site
Independent control to reduce downtime
Adopt single pump control technology, can realize independent control, quickly shut down a single abnormal pump source and still run
Intelligent monitoring, easy operation
Embedded with a new generation of intelligent software independently developed by Chuangxin Laser, real-time dynamic monitoring of various operating indicators of the laser
High integration and wide application
It can be quickly and easily integrated into machine tool equipment and automated production lines of large processing manufacturers
