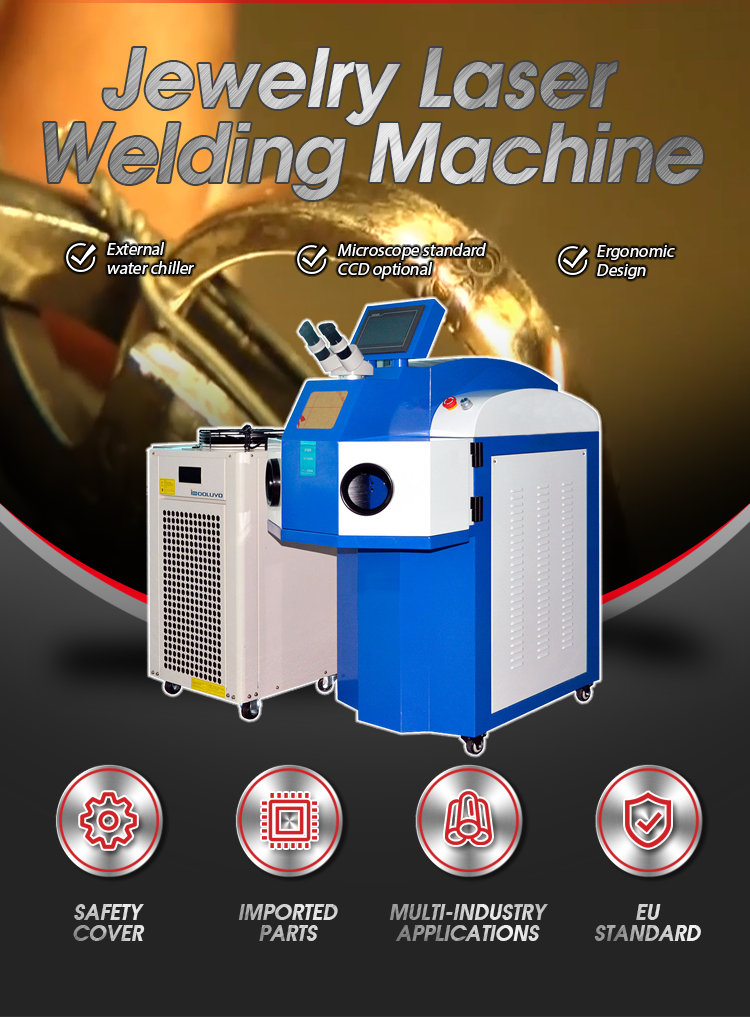

Jewelry Laser Welding Machine 200W Spot Welder

Jewelry laser welder is mainly used in perforating and spot welding of white gold, platinum, carbon steel. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool.
Availability:
Quantity:
  • DPH-200
  • Dapeng laser
  • 8515809090
1064nm Laserable Repairing Workstation Personal Customized Female Necklace Adjustable Soldered Point Laser Welder For Jewelry
Specification
Model
DPH-200-YAG
Laser source type
Fiber source
Laser Out Power
200W
Laser wavelength
1070nm
Laser Source
YAG
Focal spot diameter
0.1-3mm
Laser frequency
1-50Hz
Repeatability
±0.01mm
Machine operating temperature
0~40℃
Electricity demand
220V
Cooling method
Water Chiller Hanli
Continuous operating time
24 hours
Weight
300kg
Dimensions
96*85*80cm
Features:
1.Jewelry laser welderis high precision (0.1-2mm spot size)welding methold and laser beam is very thin.
2.Laser is quick, Frequency can reach 20HZ.
3. Jewelry, glasses frame, mould, dental teeth need laser welding way which have beautiful welding
joints.
4.Jewelry Laser welding machine is widely used in all kinds of metal like gold, sillver, bronze, aluminum,
steel and titanium!
5.Laser welding is new product, Buying this product can help you win advanced cleaning market!
6.We manufacture power supply which have big advantage in prices and after sale service.
7.Engineer door to door service.

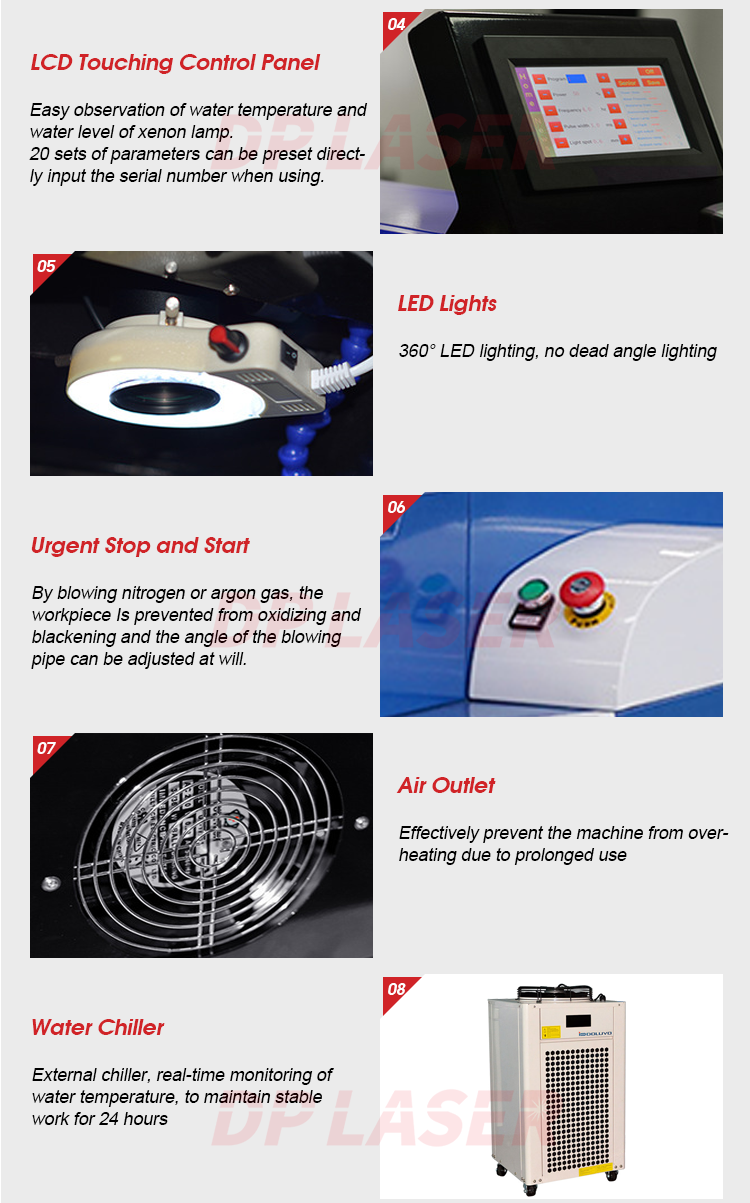

LCD Touching Control Panel: Easy observation of water temperature and water level of xenon lamp. 20 sets of parameters can be preset, directly input the serial number when using.

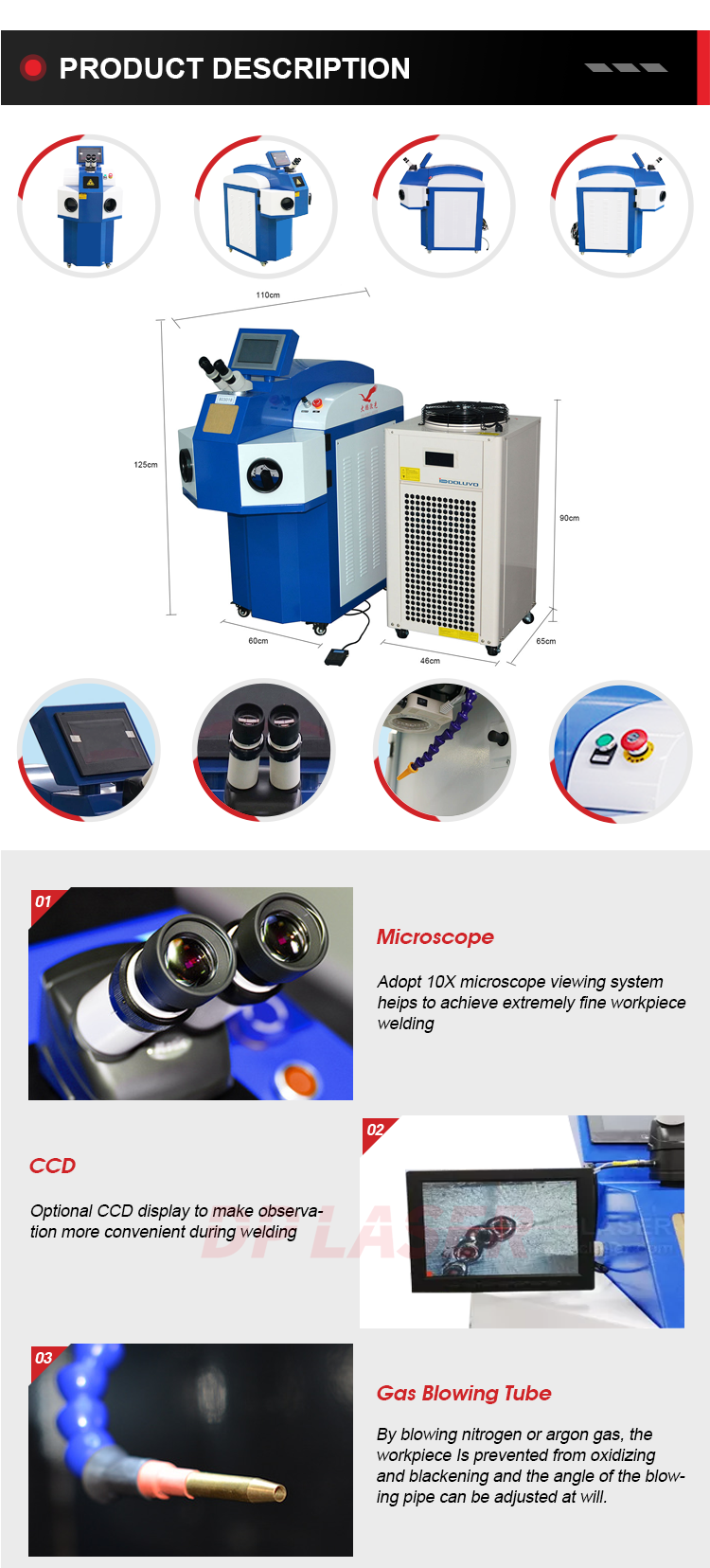

Microscope :Adopt 10x microscope viewing system, helps to achieve extremely fine workpiece welding.
Gas Blowing Tube:By blowing nitrogen or argon gas,the workpiece is prevented from oxidizing and blackening and the angle of the blowing pipe can be adjusted at will.

Product features: 1. Good safety, protect operator's eyes. 2. Powerful anti-jamming performance. 3. Easy and convenient operation. 4. High stability. 5. Microscope system ensure the precise welding 6. The protective gas controlled by program ensure the quality of the welding 7. Adopt ceramic laser cavity, high laser beam reflectivity, high optic-electric transferring efficiency. 8. The optimum welding spot has symmetrical energy distribution. 9. Fast welding speed, deeper melts pool, less distortion. 10. Tight welding spot, easy to operate, no maintain, no need fllng material.

Application: Widely used in aviation, aerospace, sports goods, jewel, golf head, medical instrument, electronics, mechanical process, car industries. Suitable for gold, silver, copper, titanium, stainless steel and other metals' patch welding, spot welding, Docket repairina and iaw hand welding when mount parts.

Standard accessories:
  1.  Laser power supply, 1 set
   2. Laser crystal rod, 1set
   3. Focus mirror & Beam expander, 1 set
   4. Ceramic converging cavity, 1set
   5. Microscope x10, 1set
   6. Xenon lamp, 1set
   7. Protective lens, 1set
   8. Cooling system, 1set
   9. Foot switch, 1 set


Specification:

Laser power

200W

Laser wavelength

1064nm

Pulse frequency

1-100Hz

Pulse width

0.3-20ms

Spot size

0.2-2mm

Power require single phase

Single phase 220 ±15% VAC 50Hz 30A

Spot adjustment

Manual

Cooling system

Water cooling

Laser power source

8KW with touch screen

YAG Laser crystal rod

Φ7*145mm

Laser Xenon lamp

Φ8*125*270mm

Microscope

x10

Ceramic converging cavity

import from UK

Focusing mirror

F=110mm

Beam expander

Three times

Protective lens

Φ20mm

Consumables

Xenon lamp, protective lens

Dimension

Machine:60*100*121cm Chiller:47*60*88cm

Weight

220Kg

Standard accessories:

1.Laser power supply, 1 set

2.Laser crystal rod, 1set

3.Focus mirror & Beam expander, 1 set

4.Ceramic converging cavity, 1set

5.Microscope x10, 1set

6.Xenon lamp, 1set

7.Protective lens, 1set

8.Cooling system, 1set

9.Foot switch, 1 set
