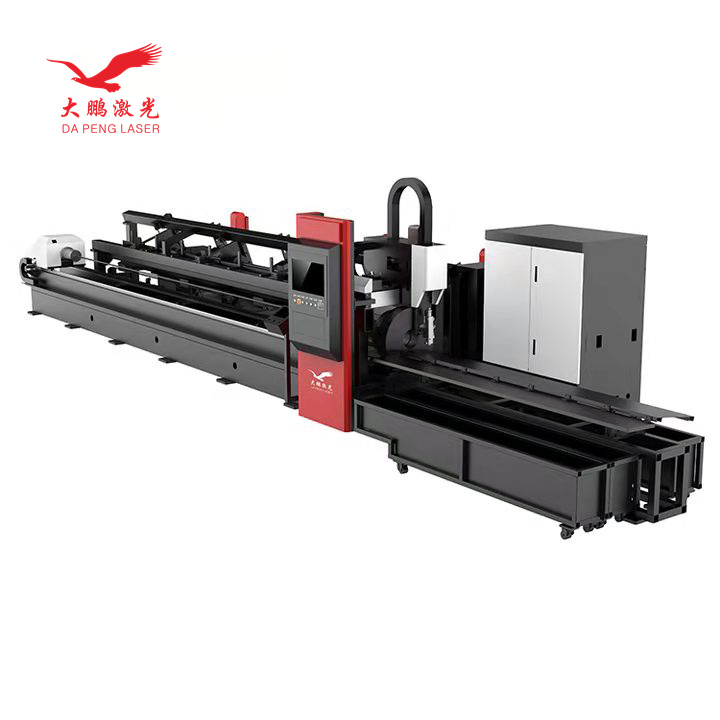

Tube Pipe Fiber Laser Cutting Machines 1000W 2000W 4000W 6000W Sheet Metal Laser Cutting Machine For Carbon Steel Tube

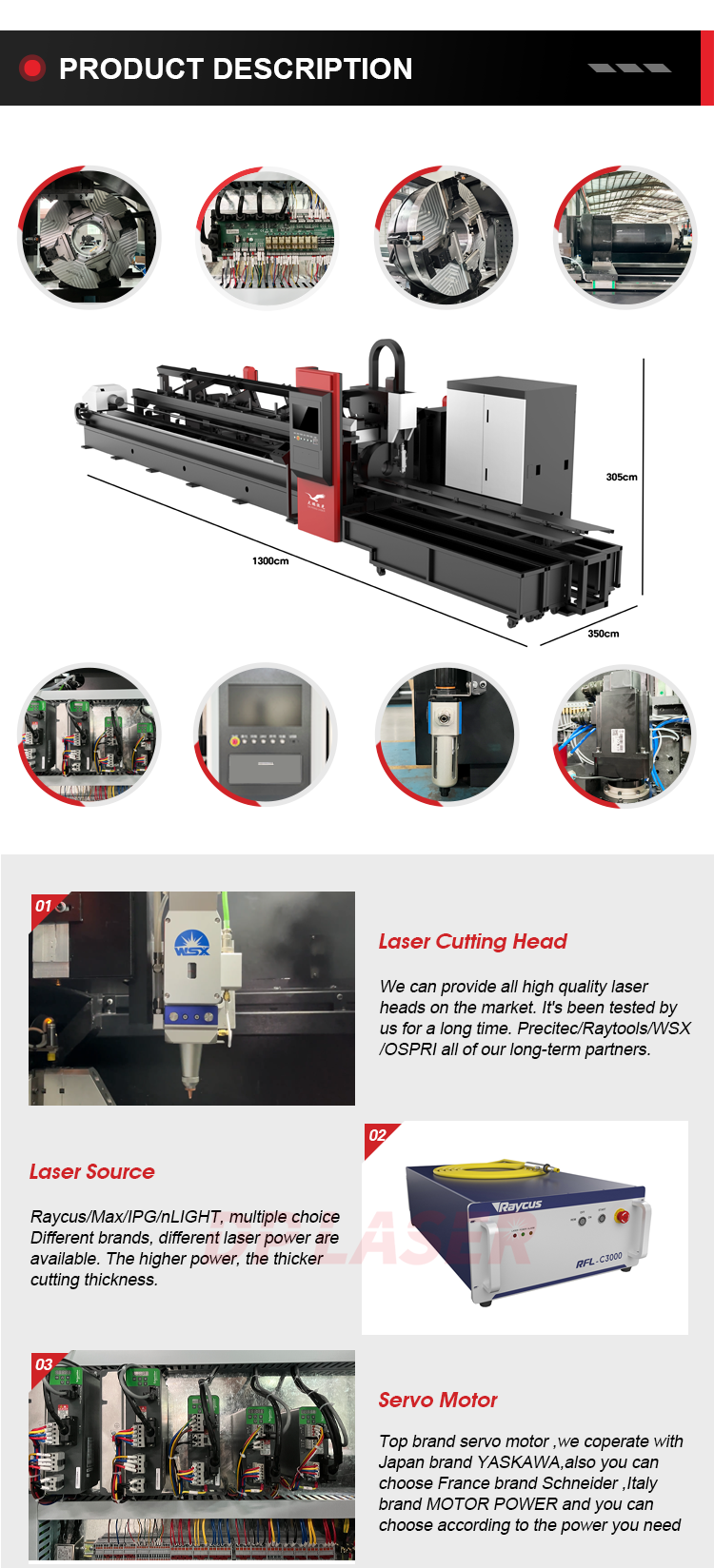

Product Description：

Specification：
Model
DPE-F3015J
Laser source type
Fiber source
Laser Out Power
1070nm
Laser wavelength
500W-6000W
Cutting range
3000×1500mm
Minimum line width
<0.1mm
Transfer method
Precision rack dual drive
Cutting speed and thickness
Depending on  specific material
Repeatability
±0.02mm
Machine operating temperature
0~40℃
Electricity demand
380V/50Hz
Cooling method
Water cooling
Continuous operating time
24 hours
Weight
9000KG
Dimensions
8150×3580×1800mm
Maximum operating speed
120m/min
Maximum acceleration
1.2G
X/Ypositioning accuracy
0.03mm
Minimum slit width
0.15mm
Features:
Automatic exchange tube plate integrated laser cutting machinet

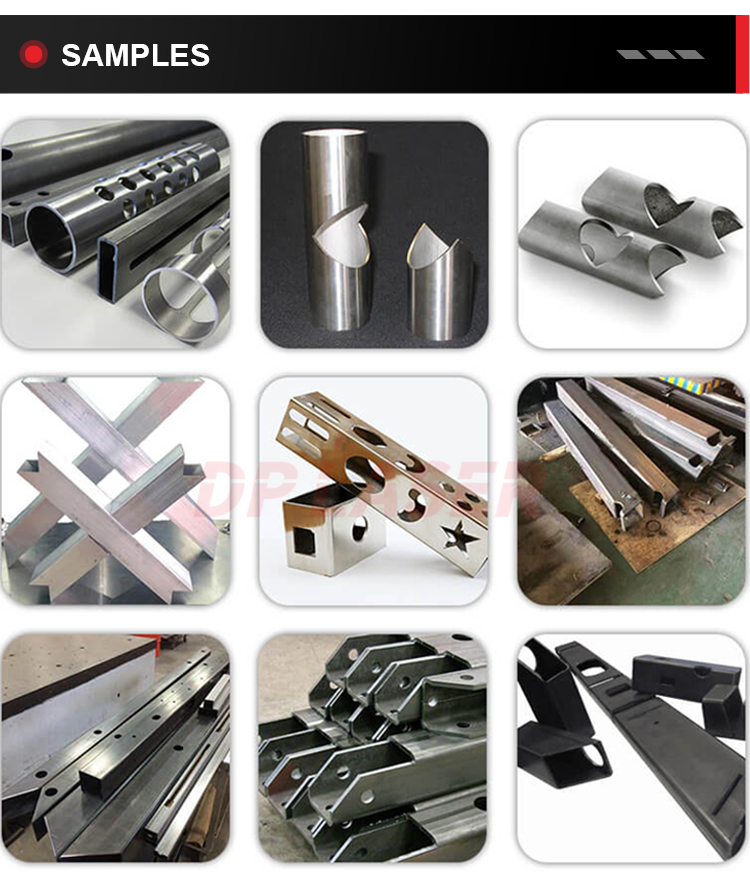

Cutting square tube, round tube, rectangular tube,D-type tube and hexagonal tube and other types of pipe. Square tube:20*20-100*100mm, round tube 20-150mm, tube wall thickness 0.5-5mm carbon steel tube,0.5-5mm stainless steel tube; Cutting 0.5～16mm carbon steel plate,0.5～8mm stainless steel plate,0.5～6mm brass,0.5～4mm copper and galvanized sheet, electrolytic plate, sili-con steel and other metal materials.
It can process plate and pipe, and it can exchange table in the flat cutting; The new human-computer interaction interface on the CNC system cuts and simulates the CAM software to track and display in real time.A process parameter library for the pipe cutting industry, and the use of wireless handheld boxes;
Automatic correction function, find tube center, very smart, convenient and practical;
A machine can be used for both cutting plates, but also cutting pipes, efficient processing machines.
