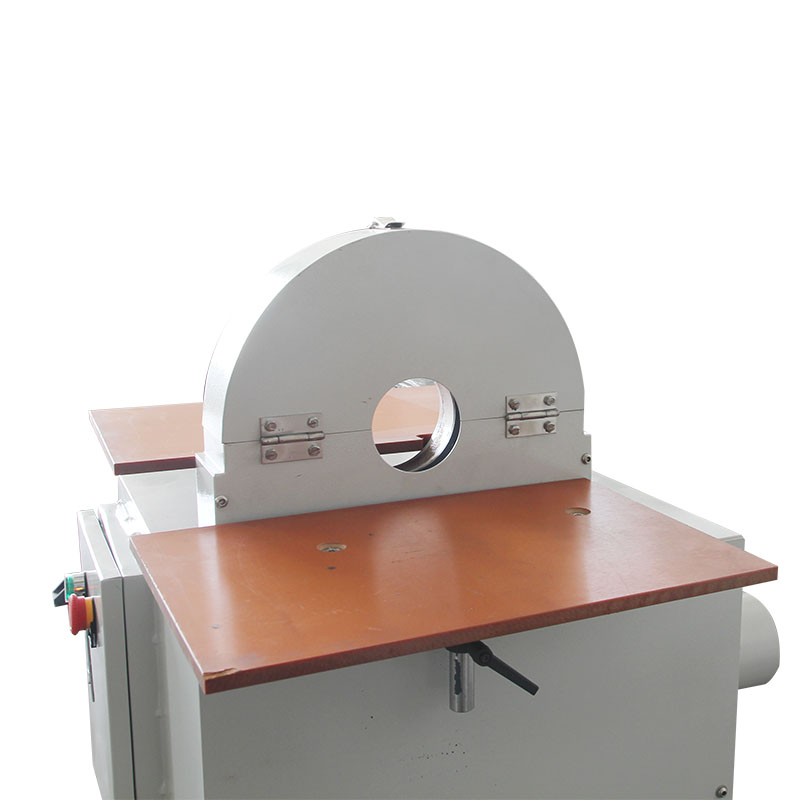

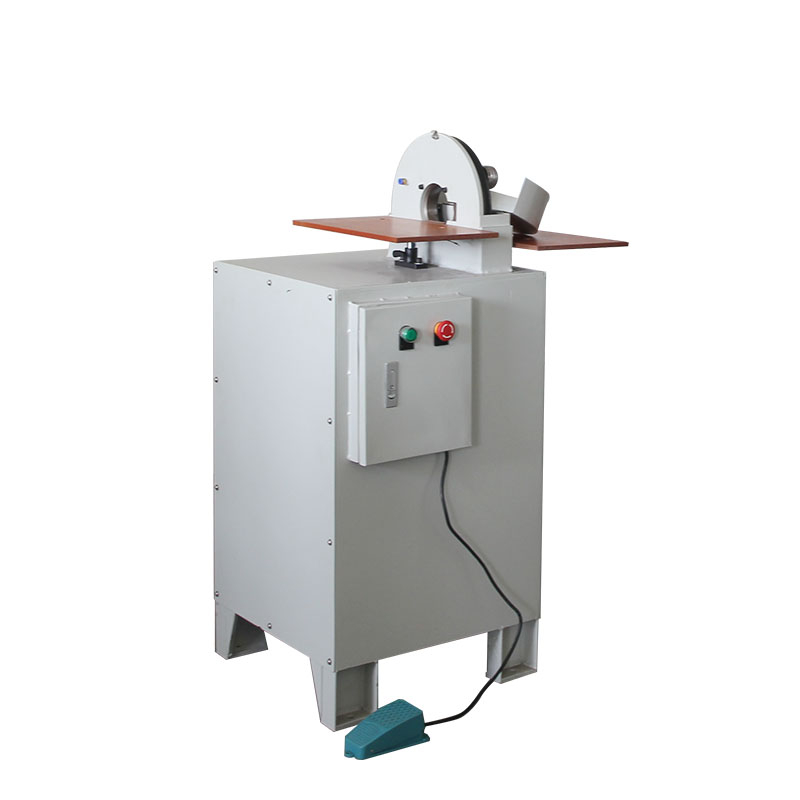

TP50
The TP50 round tube finishing machine is designed for polishing small-diameter round tubes with tight bend radii, up to Ø 50mm. It is ideal for applications such as:
Polishing water taps and faucets
Finishing handles and handrails
Polishing curved tubular products

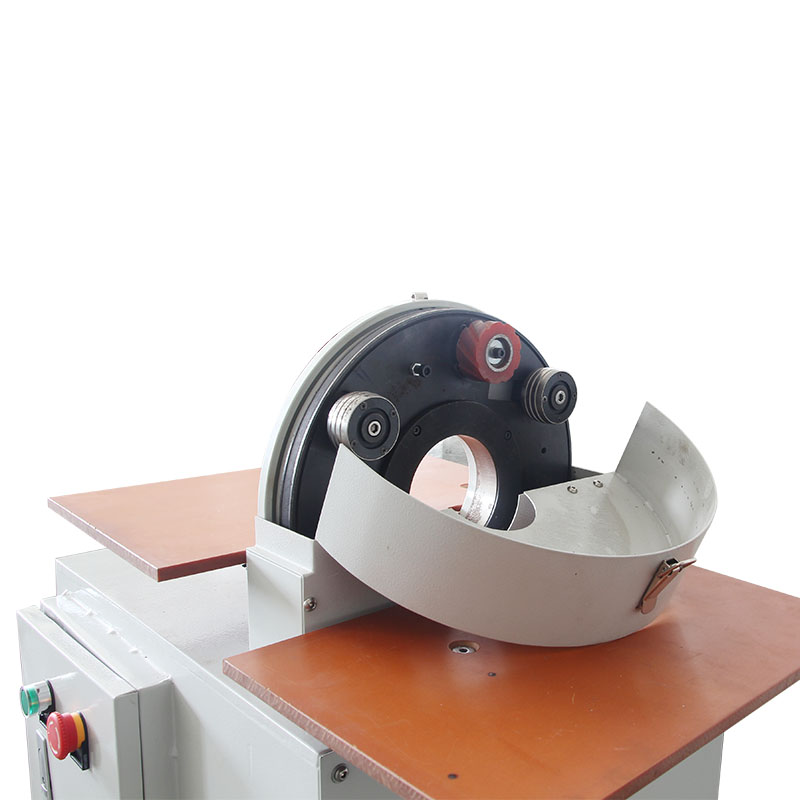

With its planetary system, the TP50 enables high-quality finishing without the need to rotate the tube, ensuring a uniform and consistent surface on both bent and curved tubes.
✅ Optimized for Bent Tubes with Tight Radii – The compact planetary wheel system allows precise finishing of curved tubes with tight bending angles, ensuring maximum flexibility.
✅ Low Heat Generation – The ML Planetary System features light abrasive belt contact, which significantly reduces heat buildup compared to conventional systems, preventing discoloration and material distortion.
✅ Wide Diameter Range – Supports tube diameters from Ø 8mm to 50mm, making it suitable for various industries, including sanitary fittings, furniture manufacturing, automotive, and medical applications.
| Specification | TP50 Model |
|---|---|
| Working Capacity (Ø mm) | 8 - 50 |
| Number of Stations | 1 |
| Abrasive Belt Dimensions (mm) | (2x) 25 × 500 |
| Abrasive Belt Speed (m/s) | 10 - 25 |
| Abrasive Belt Motor (kW) | 2.2 |
| Total Power (kW) | 2.2 |
| Dust Extraction Connection (Ø mm) | 60 |
| Machine Dimensions (mm) | 1005 × 735 × 1220 |
| Machine Weight (kg) | 155 |
