DPLC3015-1000I
DAPENG
DPLC3015-1000I
Fiber Laser Cutting Machine 500w/1000/2000W/3000W 3000mm*1500mm
APPLICABLE INDUSTRY:
It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.

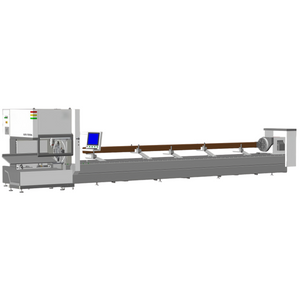

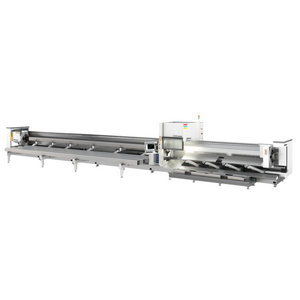

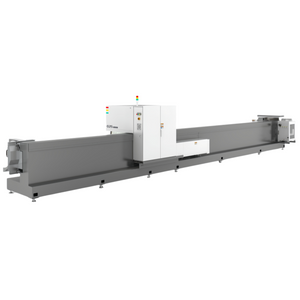

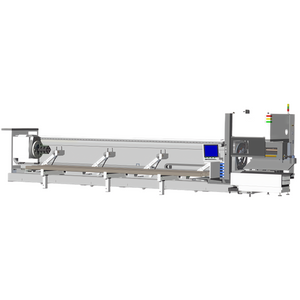

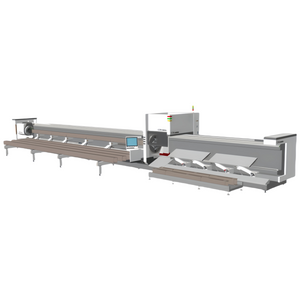

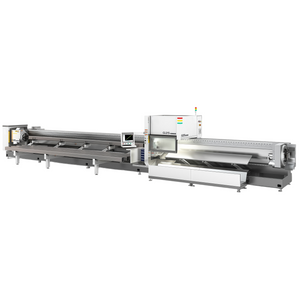

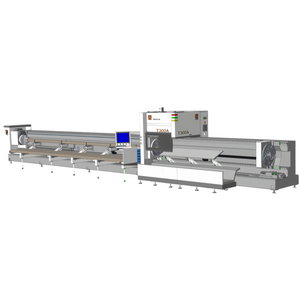

2000w Tube Fiber Laser Cutting Machine with CE Certificate
DP FIBER LASER CUTTING ADVANTAGES:
1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal
SPECIFICATIONS:
Model | DPLC3015-500I | DPLC3015-1000I |
| Medium of laser | Semiconductor pump continuous ytterbium doped fiber | |
| Laser wavelength | 1070nm | |
| Laser output power | 500W | 1000W |
| Cutting area(mm)(L×W) | 3000mm×1500mm | |
| Max cutting speed(m/min) | 18 m/min | 24 m/min |
| Min line width | < 0.1mm | < 0.125mm |
| Cutting depth | 0.2mm---5mm | 0.2mm---8mm |
| Driving Way | Imported servo motor | |
| Tranmission Way | Y-axis imported gear rack double driver,X-axis imported gear rack | |
| Operational Temp Range | 10 ~ 40ºC | |
| Electrical Requirements | 380V/50Hz.60Amp | |
| Cooling Mode | Water cooled | |
| Continuous working time | 24 hours | |
| Warranty: | 1 years on laser source | |
| Weight | About 4500kg | |
| Outline size(mm) | 4270mm×2420mm×1750mm (L×W×H) | |
APPLICABLE MATERIALS:
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.
APPLICABLE INDUSTRY:
It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.
sample marking
Shenzhen Dapeng Laser Technology Co. Ltd.
Shenzhen Dapeng Laser Technology Co., Ltd. was established in 2008, is a research and development, manufacturing, sales and service in one of the laser equipment high-tech enterprises, is committed to laser technology research and development, laser equipment design research and development, production,
technical support, services and consulting,Strong research and development capabilities, standardization and scale of the production plant, we can guarantee the quality of products and delivery time; also can be customized according to customer requirements of the design and production, better adapt to market development.
The company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc. Products Used in electronics, IC chips, electrical appliances, lighting, jewelery, hardware tools, sanitary ware, instrumentation, automobile and motorcycle accessories, mobile communication parts, mold, precision machinery, medical equipment, IT digital, metal shell, military aviation components , Clothing leather, craft gifts, advertising decoration, model, cookware tableware, kitchenware and other industries .
Dapeng laser product quality is stable and reliable, with professional R & D team, the pursuit of excellent quality at the same time, Dapeng laser also provides customers with timely, comfortable pre-sale, sale, after-sales service and excellent cost-effective products.
Dapeng laser through the implementation of "to help customers succeed, create value model, to create industrial laser equipment industry services high-end brand" business philosophy, won the majority of users trust and praise. Customers located throughout the country and overseas, 2016 sales of laser equipment more than 5,000 sets .
The company established a sound production and sales and after-sales service system, in Shenzhen, Wenzhou, Kunshan, Xiamen has a production base. In Dongguan, a large laser cutting machine production base.
And in major domestic industrial cities and regions with offices, the offices have equipment display, process proofing, sales and after-sales service, resident technical service personnel, to provide customers with timely, comfortable pre-sale, sale, after-sales support And services.
Dapeng people know that quality and service is the fundamental survival of the company, innovation is the basis for long-term development of the company to help customers create value, and strive to build the laser equipment industry well-known brands, look around the world, win-win cooperation and create a better future
