Views: 0 Author: 胡 Publish Time: 2018-09-06 Origin: Site
Model | DPH-200ZJ-YAG-W | DPH-300ZJ-YAG-W |
Laser source type | Fiber source | Fiber source |
Laser Out Power | 200W | 300W |
Laser wavelength | 1064nm | 1064nm |
Laser Source | YAG | YAG |
Focal spot diameter | 0.2mm | 0.2mm |
Welding Galvanometer lens | F=160 | F=160 |
Laser frequency | 1-50Hz | 1-50Hz |
Repeatability | ±0.01mm | ±0.01mm |
Machine operating temperature | 0~40℃ | 0~40℃ |
Electricity demand | 220V/380V | 220V/380V |
Cooling method | Water Chiller Hanli | Water Chiller Hanli |
Continuous operating time | 24 hours | 24 hours |
Weight | 300kg | 300kg |
Dimensions | 1550*720*1300mm | 1550*720*1300mm |

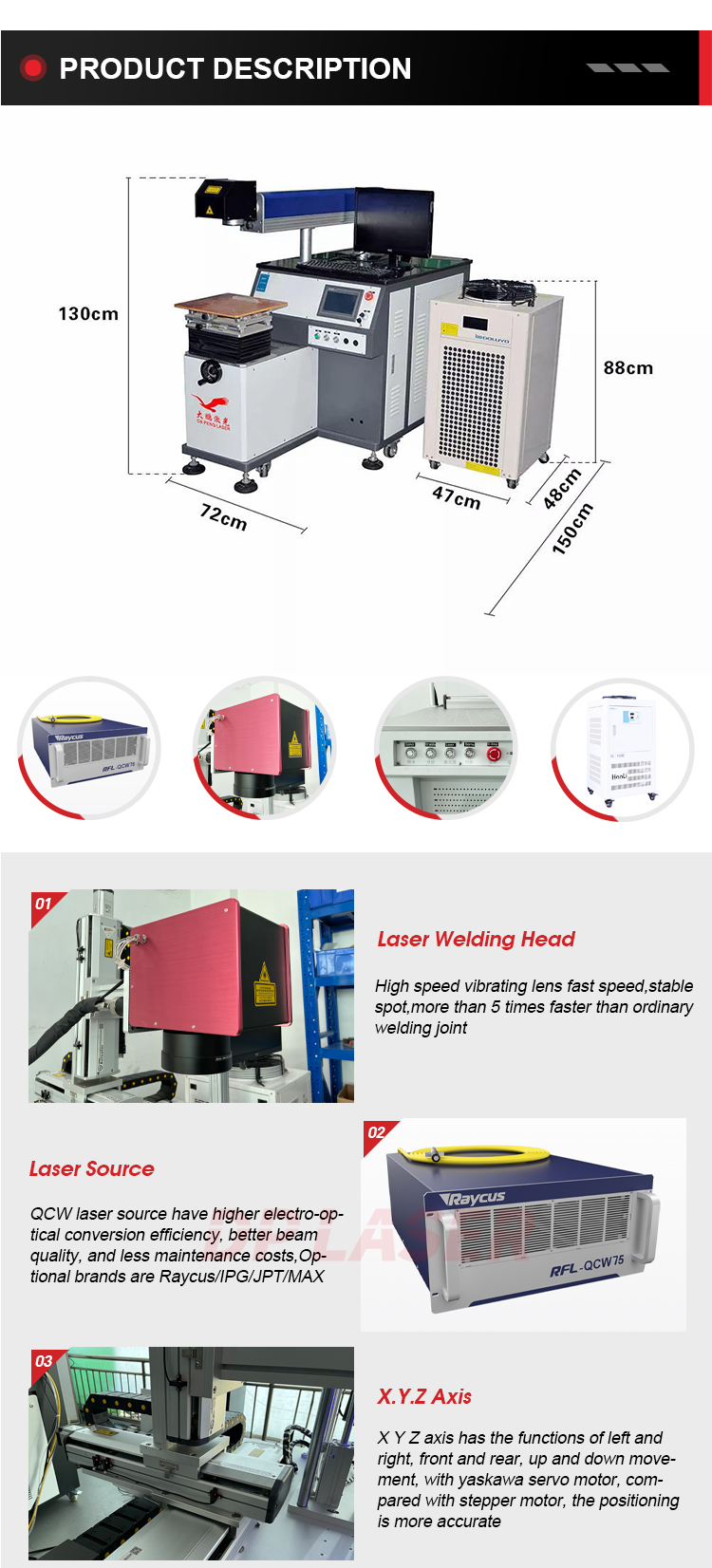

Specification:
1. Mainly composed of laser, power supply and control, cooling machine, light guiding and focusing, and binocular reflection microscopic observation, compact structure and small volume.
