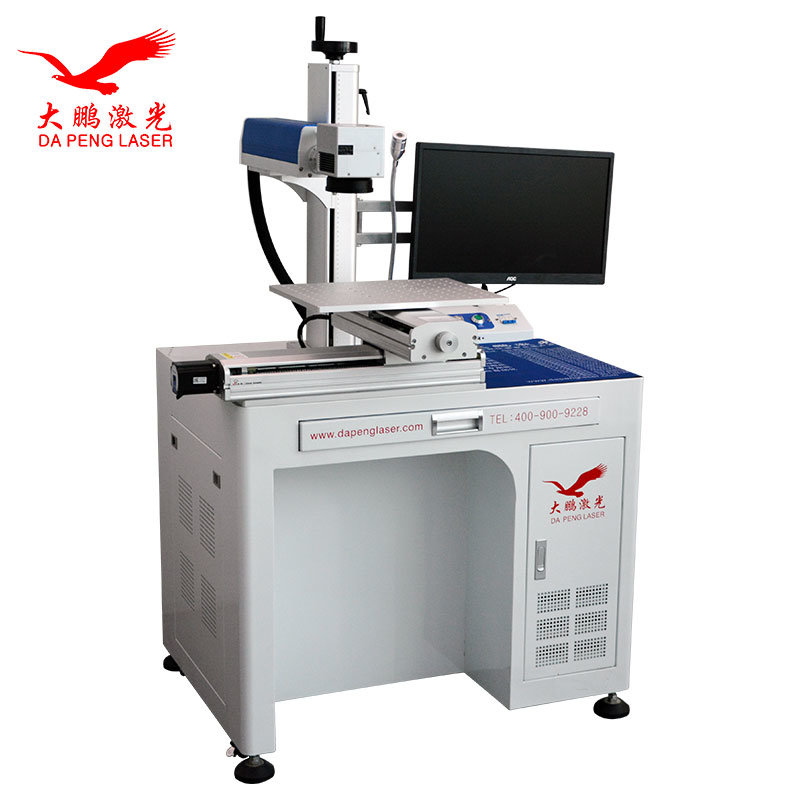

100W 120W 200W Mopa Jpt Fiber Laser Welding Machine For Aluminum Back Plane Metal Copper Grease Nipple

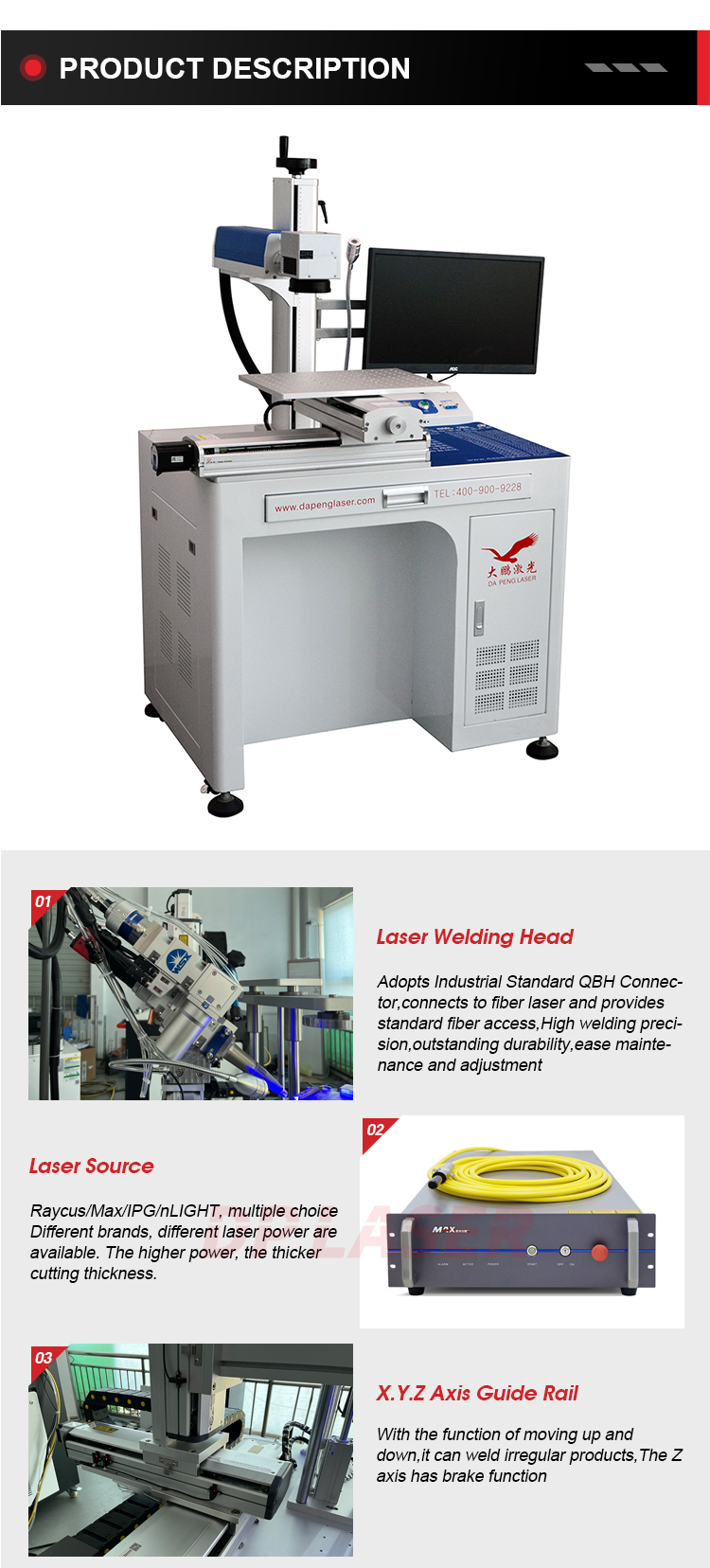

Product Description:
Specification:
Model
DPH-100ZJ-NM-JP
DPH-120ZJ-NM-JP
DPH-200ZJ-NM-JP
Laser source type
Fiber source
Fiber source
Fiber source
Laser Out Power
100W
120w
200W
Laser wavelength
1064nm
1064nm
1064nm
Laser Source
JPT
JPT
JPT
Focal spot diameter
0.3-1.5mm
0.3-1.5mm
0.3-1.5mm
Observation system
Laser Galvanometer monitor
Laser Galvanometer monitor
Laser Galvanometer monitor
Laser frequency
1-50Hz
1-50Hz
1-50Hz
Repeatability
±0.01mm
±0.01mm
±0.01mm
Machine operating temperature
0~40℃
0~40℃
0~40℃
Electricity demand
220V
220V
220V
Cooling method
Water Chiller Hanli
Water Chiller Hanli
Water Chiller Hanli
Continuous operating time
24 hours
24 hours
24 hours
Weight
200kg
200kg
200kg
Dimensions
88*65*148cm
88*65*148cm
88*65*148cm
Single Pulse Energy
10J-20J
10J-20J
10J-20J
Features:
Application areas:
It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace,aviation, power battery and daily necessities industries.

Model features:
★High energy density, low heat input, small amount of thermal deformation, and narrow melting depth in the heat and heat affected zone of the melting zone.
★The cooling rate is high, so that the weld structure can be fine and the joint performance is good.
★ Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly improving work efficiency.
★The weld is fine, the penetration is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
★ No consumables, small size, flexible processing, low operating and maintenance costs
★The laser is transmitted through the optical fiber and can work with the assembly line or the robot.
