2000W Watt Fiber Automatic Welder Battery Laser Welding Machine For Nickel Cadmium

Views: 3     Author: 胡     Publish Time: 2022-12-13      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

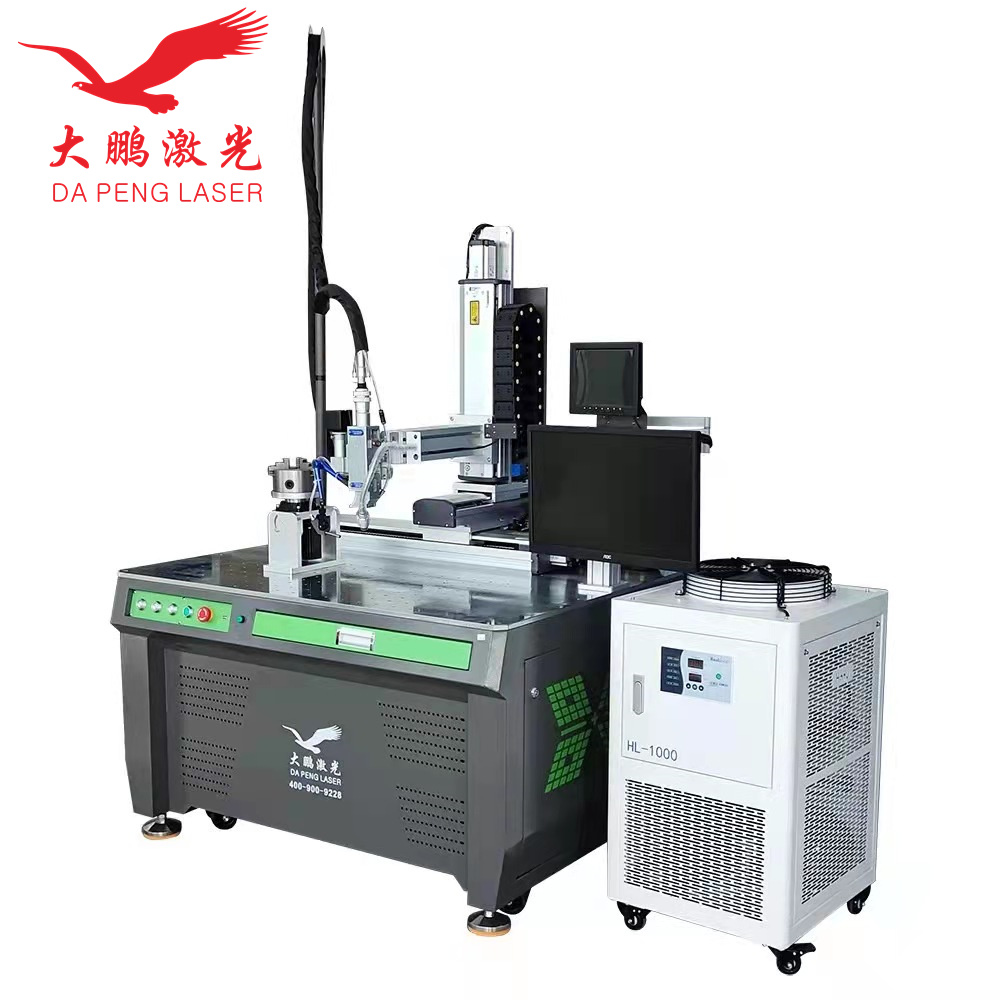

3 Axis 4 Axis 1KW 2KW 3KW Prismatic Aluminum Nickel Metal Stainless Steel Automatic Continuous Fiber Laser Welding Machine


Product Description：
Specification：
Model
DPH-2000-CW-553
DPH-1500-CW-553
DPH-2000-CW-553
DPH-3000-CW-553
Laser source type
Fiber source
Fiber source
Fiber source
Fiber source
Laser Out Power
1000W
1500w
2000W
3000W
Laser wavelength
1064nm
1064nm
1064nm
1064nm
Laser Source
Raycus/Max/IPG/nLIGHT
Raycus/Max/IPG/nLIGHT
Raycus/Max/IPG/nLIGHT
Raycus/Max/IPG/nLIGHT
Focal spot diameter
0.3-1.5mm
0.3-1.5mm
0.3-1.5mm
0.3-1.5mm
Working Table Scale
1500*1000mm
1500*1000mm
1500*1000mm
1500*1000mm
Observation system
CCD monitor
CCD monitor
CCD monitor
CCD monitor
Laser frequency
1-50Hz
1-50Hz
1-50Hz
1-50Hz
Repeatability
±0.01mm
±0.01mm
±0.01mm
±0.01mm
Machine operating temperature
0~40℃
0~40℃
0~40℃
0~40℃
Electricity demand
220V/380V
220V/380V
220V/380V
220V/380V
Cooling method
Water Chiller Hanli
Water Chiller Hanli
Water Chiller Hanli
Water Chiller Hanli
Continuous operating time
24 hours
24 hours
24 hours
24 hours
Weight
300kg
300kg
300kg
300kg
Dimensions
1200*900*1700cm
1200*900*1700cm
1200*900*1700cm
1200*900*1700cm
Single Pulse Energy
80J
80J
100J
120J
Features:
Application areas:

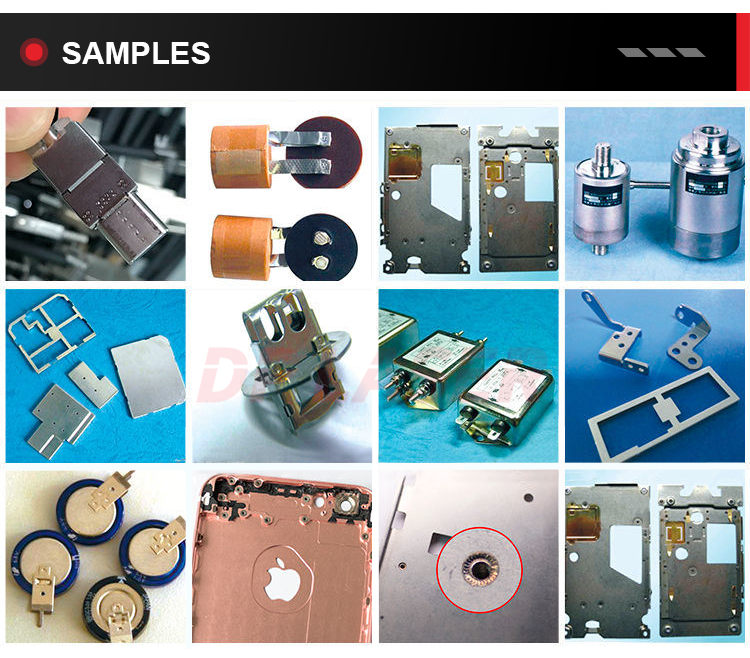

It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace,aviation, power battery and daily necessities industries.

Model features:
★High energy density, low heat input, small amount of thermal deformation, and narrow melting depth in the heat and heat affected zone of the melting zone.
★The cooling rate is high, so that the weld structure can be fine and the joint performance is good.
★ Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly improving work efficiency.
★The weld is fine, the penetration is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
★ No consumables, small size, flexible processing, low operating and maintenance costs
★The laser is transmitted through the optical fiber and can work with the assembly line or the robot.
