When using the mold laser welding machine to repair the mold, use a microscope to observe the mold and repair welding conditions,and observe with both eyes at the same time, so that the specific conditions of the mold can be observed during observation.
The welding wire must be selected correctly during operation, because the mold can only be repaired if the welding wire is selected correctly (the diameter can be melted from 0.2-0.8). If it is not used correctly, it will affect the repair effect of the mold and even fail to repair the mold.
The mold laser welding machine must use argon protection, and the program should be set to first argon and then laser to prevent oxidation in the first pulse laser during continuous processing.

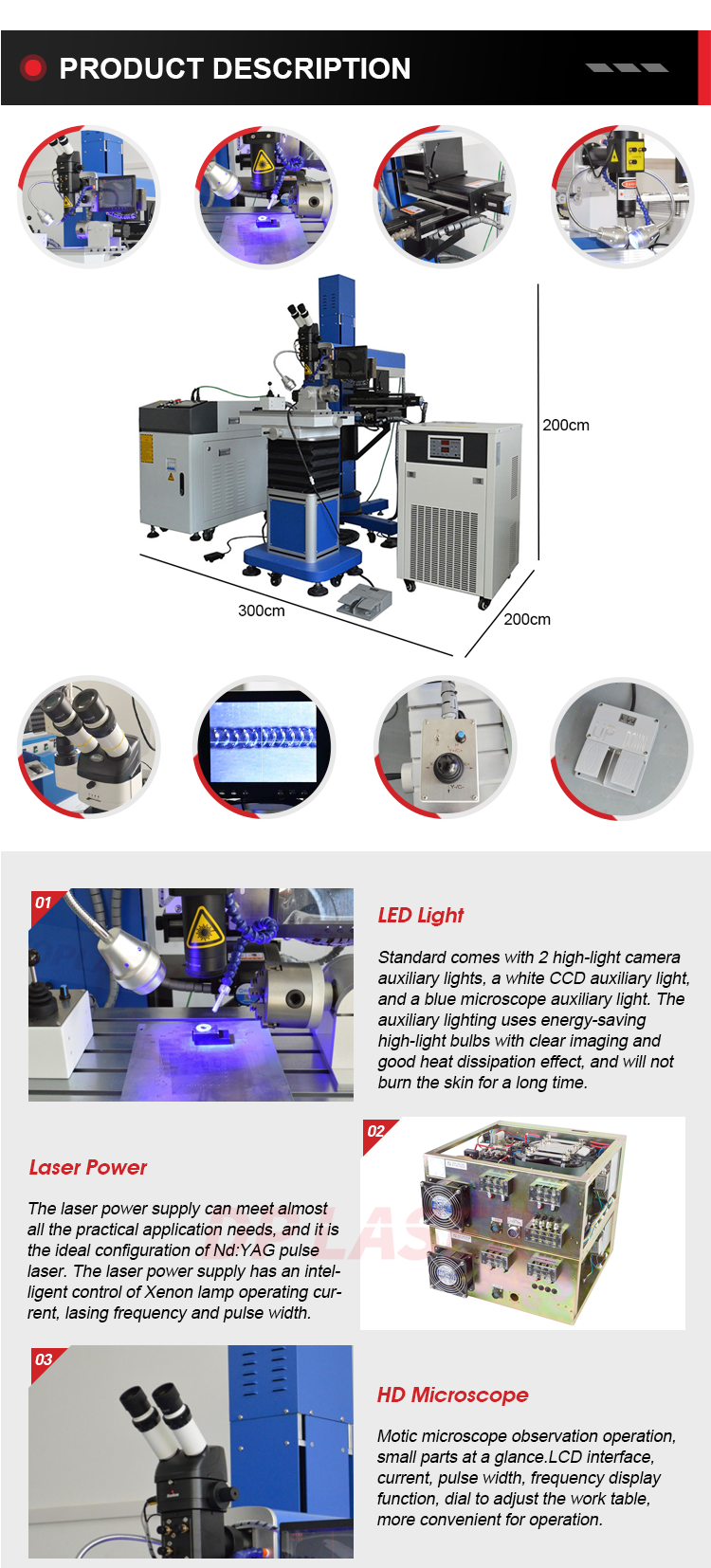

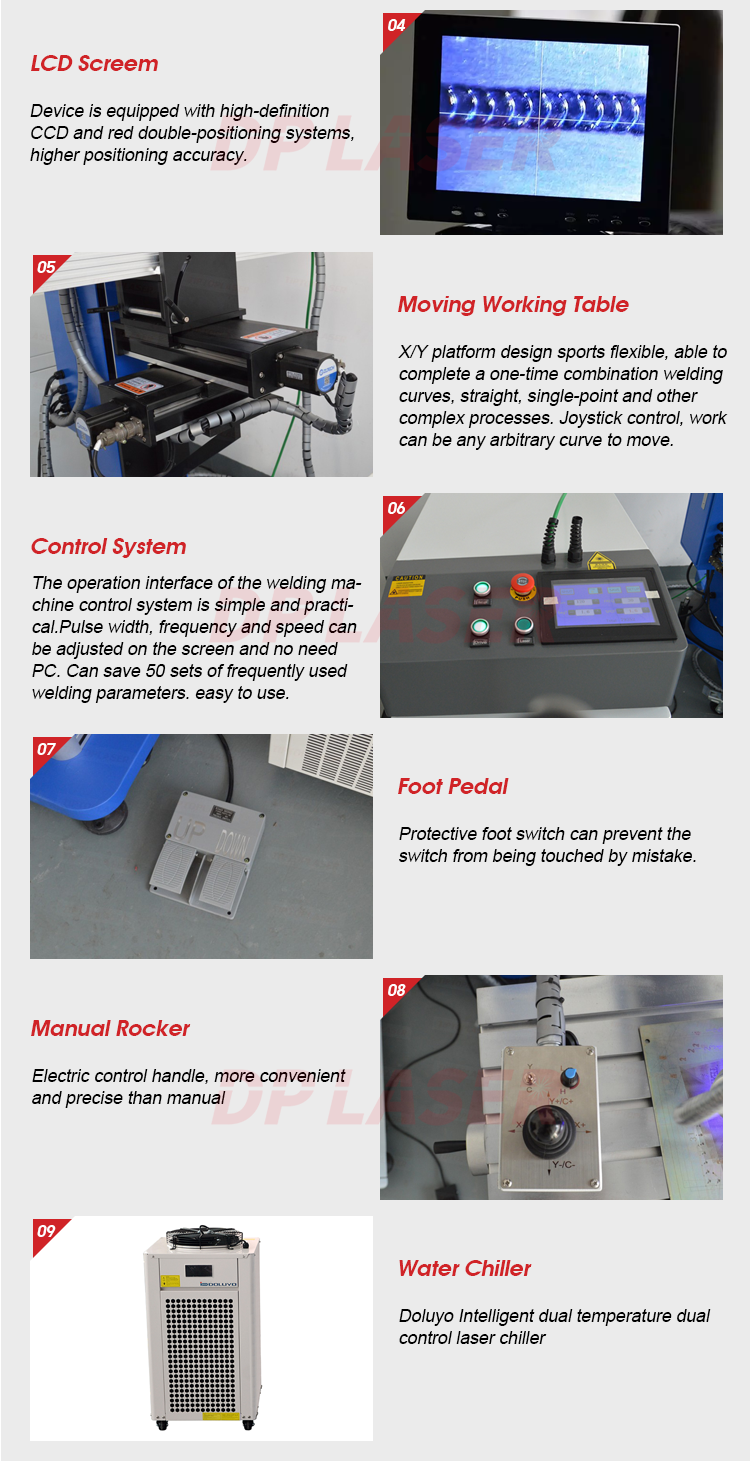

Main Features By adopting the Laser head, the Laser Power Supply, the Internal-Circle Cooling System, the Control System, the Numerical Control System and the Integrative Design of the Workbench, this device offers you a compact structure and smart appearance with convenient operations and stable performance, which occupies only a small place. It uses a power switch and allows you to select the output power, frequencies, the pulse width and other parameters of the Laser through the touch panel. It also has an auto-protective function that can protect it from mistaken operations and temperature excursion. With the remote control unit or through the touch panel, you can select the output power, frequencies, the pulse width and other parameters of the Laser, set up the speed and control the directions (forward, backward, left or right) by which the Workbench moves, so that it can produce a flat and tidy welding line or welding point to optimize the results. The driving method of the numerical control Workbench: Imported PLC control promises stable and highly accurate operations of the workbench. Laser Welding machine Application Industry.
1.The mold repair laser welding machine is used to repair set foot part welder parts claw, fill sand holes and small teeth precision components such as batteries with nickel, integrated circuit leads, watches and clocks, kind, austenitic stainless in the fields of electron gun, assembly welder. aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile. Perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.
2.The laser welding machine is applied for the fast welding of various metal letters, stainless steel letters, LED luminous characters, AD Logos, customized metal signage and exterior billboards. It's widely used for Logo making, fine word production, metal word production, Copper factory, advertising production company, and so on.
The shape of welding
point, circle, arc and square, etc.
Laser Welding machine Applicable materials.
stainless steel, steel plate, iron plate and other metal and alloy.Suitable for welder of kettle, vacuum cup, stainless steel bowl, sensor, tungsten wire, high power diode(triode),aluminum alloy, laptop
