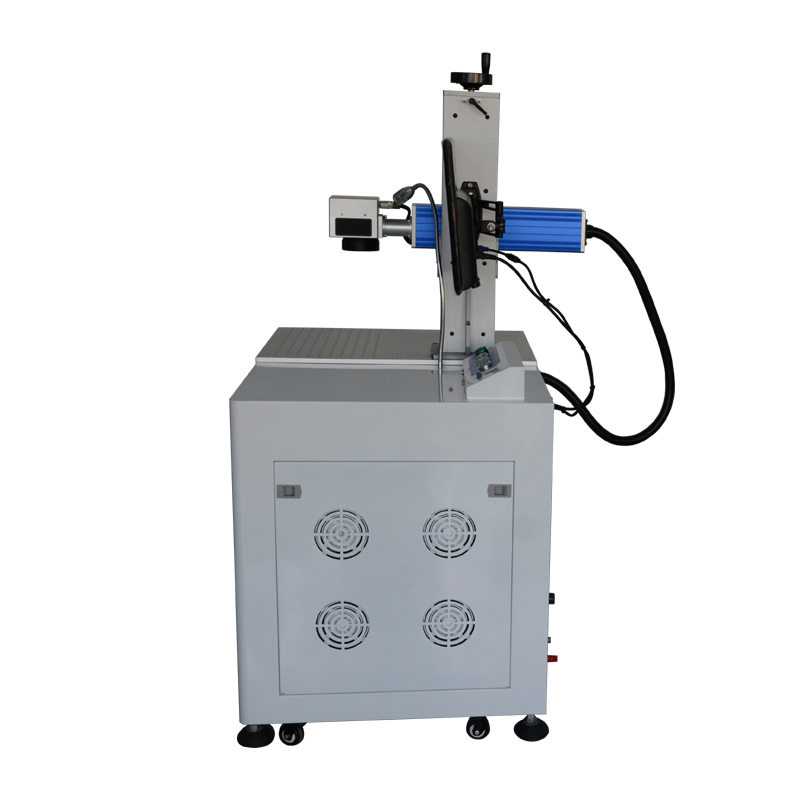

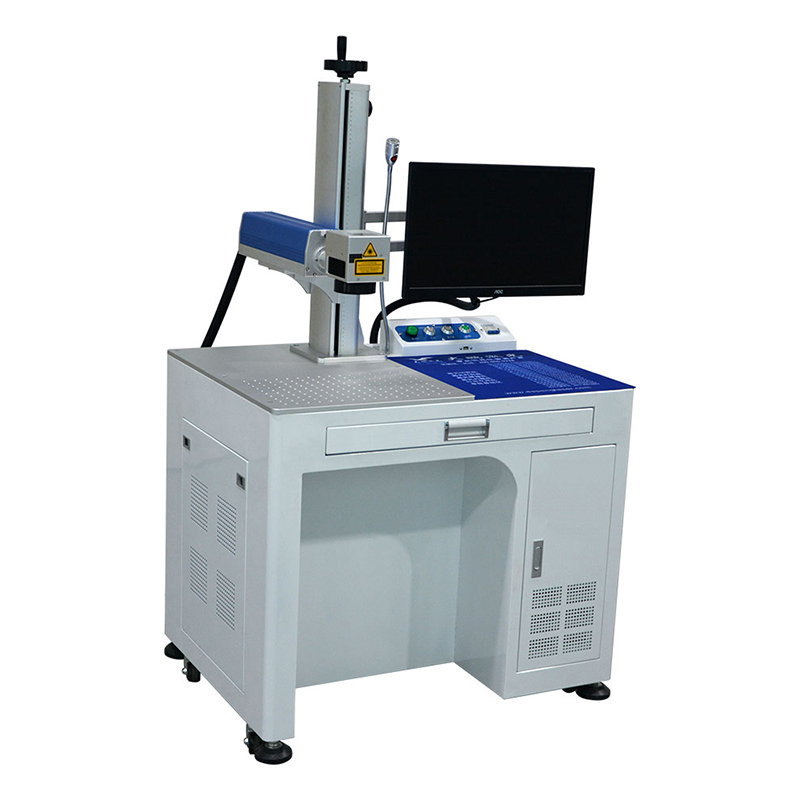

20w 30w 50w Desktop Fiber laser Marking Machine

Comparing with traditional solid laser marking machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking.
Availability:
Quantity:
  • YLP-20/30/50/100

  • Dapeng laser

  • 8456110090

Features:
1.Excellent light quality:
Comparing with traditional solid laser marking machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking.
2. Low usage cost:
① Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500W, it is the 1/10 of laser pump lamp marking machine. It greatly saves the cost in power consumption.

② No consumable ink cost burden and eliminating the troubles of cleaning the inkjet printer nozzle everyday.
3. Free maintenance & long service life:
Using laser diode as the source of pump, full sealing light path design, its average no-failure operation is over 100 thousand hours.
4. Fast process speed:
Its processing speed is 5-10 times faster than traditional laser marking machine.
Application :
Metal Industry, Jewelry Factories, Hardware Tools, Electronics Components, Auto Parts, Mobile & Accessories, Clock&Watches, Planting Coating Materials, Spray Material, Plastic, Spectacles,etc.


Fiber laser marking machine   https://youtu.be/FPxv1HR6PLA

01 desktop laser marking

Specification:

Laser wavelength

1064nm

Power adjustment range

10-100%

Repetition frequency

20-80KHz

Output beam quality

M2:1.2~1.8

Marking linear depth

0.01-0.2mm

Min. Spot diameter

0.01mm

Min. Character size

0.1mm

Repetition accuracy

±0.002mm

Max. Liner marking speed

7000mm/s

Standard marking area

100*100mm, 150*150mm or 180*180mm

Power consumed

500W

Electrical demand

Ac220V±10%.50HZ.10Amp

Computer (Desktop)

WIN10

Cooling mode

Air-cooling

Operational Temp Range

10-40

Machine Size & Weight

Desktop: 880*650*1450mm  130Kg

Portable: 550*550*650MM   40Kg

Software: EZCAD

True Type Fonts

Single Stroke Fonts

Elliptical Text

Sequential Serial Numbers

Customizable Auto Dating

Barcodes

QR Codes and Data Matrix

UID Wizard

Logos

Images - JPG, TIF, GIF

CorelDraw, Adobe Illustrator

Raster Graphics

Vector Graphics

CAD Files


Materials:

Stainless Steel

Steel

Aluminum, Carbide

Nickel

Titanium

Cast Iron

Chrome

Painted Metal Alloys

Multi-Coated Metals

Plastics/Rubber

Backlit Buttons

Polycarbonate

PVC

Composites

Many more materials
