In the demanding field of metal fabrication, achieving impeccable surface finishes, consistent deburring, and precise edge rounding is crucial to product quality and manufacturing efficiency. To meet these challenges, advanced sanding solutions like the 3 head wide belt sander have become indispensable.
By integrating three sanding stations into a single machine, the 3 head wide belt sander enables sequential multi-stage processing — from heavy stock removal to fine finishing — in one continuous pass. This approach dramatically improves throughput, reduces labor, and ensures high-quality results.
This article provides a thorough overview of the 3 head wide belt sander, detailing its definition, structural components, typical metalworking applications, core advantages, and highlighting its essential role in the metalworking industry.

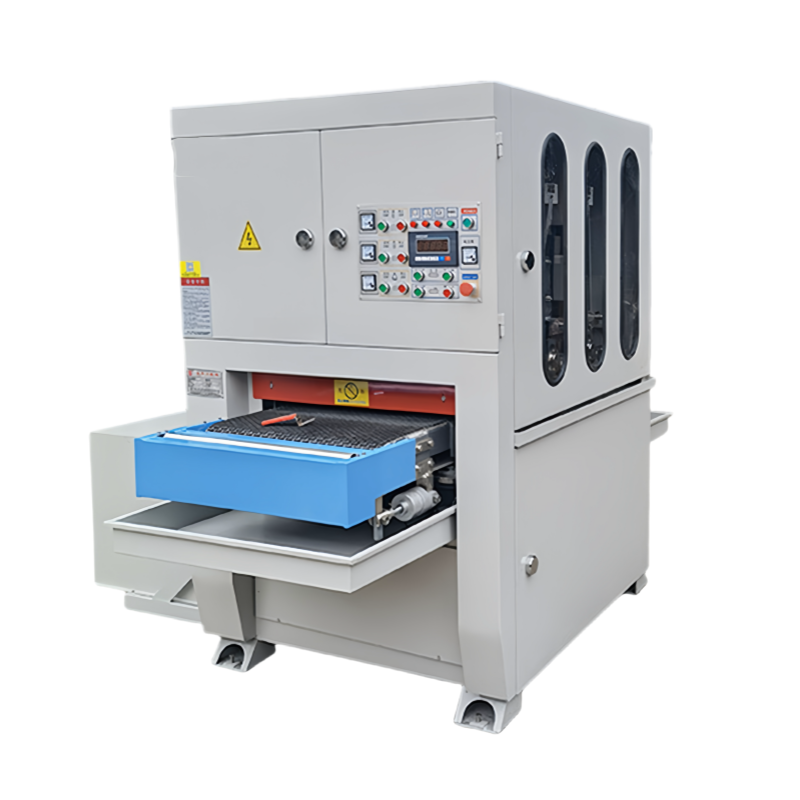

A 3 head wide belt sander is an industrial sanding machine featuring three abrasive belt stations arranged sequentially along a conveyor. Each “head” functions as an independent sanding unit with its own abrasive belt, drive system, and pressure controls, enabling multiple finishing processes within one machine cycle.
The “wide belt” refers to the abrasive belt’s width, which typically ranges from 800mm to over 1300mm depending on the model, allowing the machine to accommodate large sheets or batches of metal parts.
This configuration provides the flexibility to combine coarse sanding, deburring, edge rounding, and fine polishing or brushing without manual intervention or part handling between steps, greatly enhancing manufacturing efficiency.
The 3 head wide belt sander integrates several vital components engineered for precision, durability, and operational efficiency:
Each sanding head is equipped with an abrasive belt that can be customized in grit size and abrasive type. For example:
Head 1: Coarse grit belt for aggressive burr removal and surface leveling
Head 2: Medium grit belt for smoothing and preliminary finishing
Head 3: Fine grit belt or specialized finishing belt for polishing, brushing, or oxide removal
Each head uses pressure rollers or segmented pressure pads to ensure uniform contact between the abrasive belt and the workpiece, accommodating both flat and slightly contoured surfaces.
A motorized conveyor with optional vacuum or magnetic hold-down stabilizes workpieces as they move through the three sanding zones.
The machine frame is robustly constructed from welded steel to minimize vibration and maintain accuracy. Safety guards and dust containment enclosures protect operators and reduce particulate emission.
All three heads connect to an integrated dust collection system, extracting metal dust and particles generated during sanding to comply with environmental and workplace safety regulations.
Modern machines feature user-friendly interfaces allowing independent control of feed speed, belt speed, pressure settings, and sanding sequences for each head. Recipe storage and automation options enable quick job changes and consistent repeatability.
The 3 head wide belt sander excels in a broad range of metalworking finishing tasks:
The first head removes heavy burrs and sharp edges; the second refines edges; and the third performs final rounding and polishing, producing safe, smooth contours.
Sequential sanding efficiently removes oxidation, scale, welding spatter, and contaminants, preparing surfaces for further processing.
Progressive sanding reduces thickness variations and flattens sheets or components, ensuring dimensional accuracy.
The third head can be equipped with fine abrasive belts or brush units to impart various surface textures such as satin, matte, or brushed finishes.
The heads can be programmed for stepwise removal and blending of weld beads, producing smooth, uniform weld areas for both functional and aesthetic purposes.
By integrating multiple finishing steps in one pass, the machine significantly increases throughput for batch or continuous metal fabrication.
Three sanding heads performing sequential operations reduce handling and cycle time, dramatically increasing throughput.
Independent adjustment of each head’s pressure, speed, and belt type allows tailored multi-stage sanding that produces consistent, high-quality surfaces.
Handles stainless steel, carbon steel, aluminum, copper, brass, and more, adapting to varied finishing requirements by simply changing belts or settings.
Combining three finishing processes in a single machine reduces manual intervention, risk of damage, and contamination.
Consolidating multiple sanding stations into one footprint optimizes factory space and lowers equipment investment.
Modern controls facilitate quick setup, job recipe storage, and integration with Industry 4.0 systems for remote monitoring and data analysis.
Enclosed sanding zones and powerful dust extraction reduce airborne contaminants, improving workplace safety and compliance.
Metalworking demands both precision and efficiency. The 3 head wide belt sander meets these by providing:
Seamless multi-stage finishing that ensures superior surface quality with reduced process steps
Customizable sanding parameters to accommodate complex materials and finish specifications
Significantly improved throughput to support high-volume production schedules
Reduced operational costs through lower labor, consumable, and rework expenses
Cleaner and safer work environment with integrated dust management
Its ability to streamline complex finishing workflows makes it a vital asset for OEMs, fabricators, and contract manufacturers striving for competitive quality and efficiency.
To maintain optimal machine performance:
Clean abrasive belts and conveyor tables regularly to avoid clogging and inconsistent sanding
Replace abrasive belts promptly once worn to maintain finish quality
Lubricate bearings, rollers, and moving parts according to manufacturer instructions
Inspect and clean dust extraction components frequently
Verify belt tension and alignment to prevent uneven wear
Ensure operators are trained on proper use, maintenance, and safety protocols
The 3 head wide belt sander is an advanced, versatile industrial machine that revolutionizes metalworking surface finishing by integrating multiple sanding processes in one continuous operation. Its ability to perform deburring, edge rounding, polishing, and surface preparation sequentially reduces cycle times, improves quality, and cuts costs.
With durable construction, sophisticated controls, and comprehensive dust management, this machine is essential for metal fabricators aiming to meet stringent quality standards while maximizing efficiency.
For manufacturers focused on optimizing throughput, finish quality, and operational safety, the 3 head wide belt sander is a strategic investment that delivers significant competitive advantage.
