5-Axis CNC Machining Center
High-Performance 5-Axis CNC Machining Center for Complex Precision Manufacturing

A 5-Axis CNC Machining Center is an advanced manufacturing solution designed for the high-precision machining of complex geometries in a single setup. By simultaneously controlling the X, Y, Z linear axes together with the A and C rotary axes, it enables efficient multi-surface machining, reduces repositioning errors, and significantly improves machining accuracy and productivity.

Availability:

Quantity:



Inquire Add to Basket

Model:
G-400

Product Description

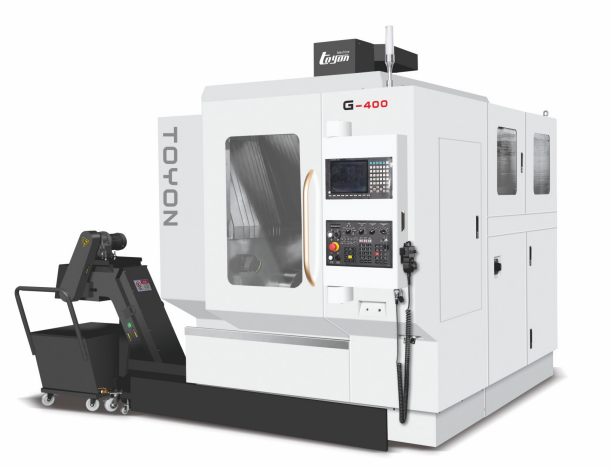

G-400 5-Axis CNC Machining Center

High Precision 5-Axis CNC Machining Center for Complex Parts

The G-400 5-Axis CNC Machining Center is designed for high-speed, high-precision machining of complex components. With simultaneous 5-axis capability, it enables multi-face machining in a single setup, significantly improving efficiency and accuracy.

Featuring a high-rigidity machine structure, high-speed spindle system, precision rotary table, and intelligent CNC control, the G-400 is suitable for demanding industries requiring stable performance and fine surface finishing.

Key Features

Simultaneous 5-Axis CNC Machining
High-Speed & High-Precision Spindle
One-Setup Multi-Surface Machining

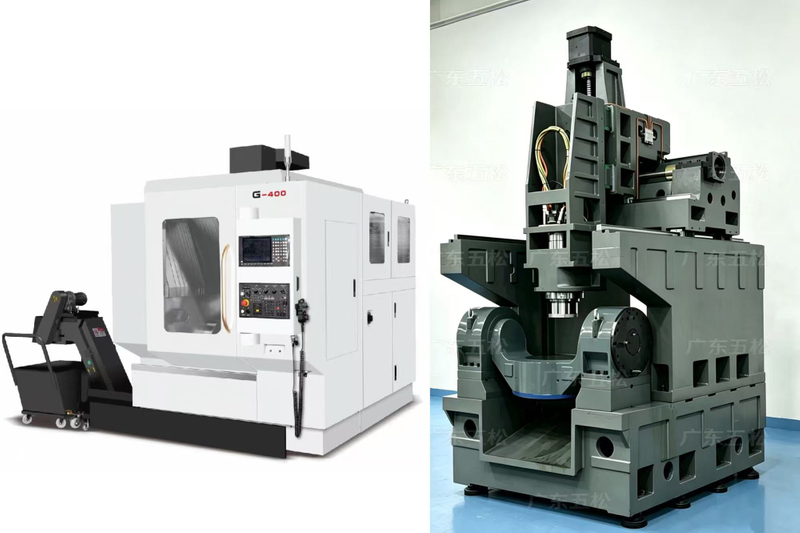

High-Rigidity Machine Structure
High Positioning Accuracy
Intelligent CNC Control System
Automatic Tool Changer (ATC)
Excellent Thermal Stability
Stable Machining Performance
Improved Productivity and Surface Finish

Applications

Aerospace Industry
Medical Devices
Mold & Die Manufacturing
Automotive Industry
Industrial Equipment
Precision Components
Robotics Industry
Energy Equipment

5-Axis CNC Machining Center – Technical Specifications

Worktable

Item	G-400	G-500	G-630	G-800	G-1400	Unit
Table Size	320	400	500	630	1200	mm
A-Axis Tilting Angle	±110	±110	±110	±110	±110	°
C-Axis Rotation Angle	360	360	360	360	360	°
A-Axis Rotation Speed	100	100	80	80	50	rpm
C-Axis Rotation Speed	200	200	120	120	100	rpm
Max Table Load	100	250	450	850	2000	kg

Travel

Item	G-400	G-500	G-630	G-800	G-1400	Unit
X-Axis Travel	400	500	600	800	1400	mm
Y-Axis Travel	600	650	800	900	1400	mm
Z-Axis Travel	350	450	480	600	900	mm
90° Y Front Travel	350	400	450	550	750	mm
Spindle Nose to Table Surface	470	570	630	720	1020	mm
Clearance	120	120	90	120	120	mm

Spindle

Item	G-400	G-500	G-630	G-800	G-1400	Unit
Taper Type	HSKE40 / E50 / A63	HSK A63	HSK A63	HSK A63	HSK A63	—
Speed Range	30,000	20,000	20,000	20,000	20,000	rpm
Spindle Power	9	20	35	45	45	kW
Rated Torque	14	33	48	100	100	Nm

Feed System

Item	G-400	G-500	G-630	G-800	G-1400	Unit
Rapid Traverse (X/Y/Z)	30	36	36	36	24	m/min
Ball Screw Spec	3210/3210/3210	3212/4012/3212	4012/5012/4012	4012/5512/4012	4012/5512/4012	—
Linear Guideways	35/35/35	35/45/35	35×2 / 45×4 / 35×2	45/45/45	45/55/45	—
Servo Motor Torque	20/30/20	25/35/25	30/35/30	30/35/30	35/45/35	N·m
Feed Rate (X/Y/Z)	15	15	15	15	15	m/min

Tool Magazine

Item	G-400	G-500	G-630	G-800	G-1400	Unit
Tool Holder Type	HSKE40	HSK A63	HSK A63	HSK A63	HSK A63	—
Tool Selection Method	Bi-directional shortest path selection	Same	Same	Same	Same	—
Tool Capacity	20 / 18	32	32 / 48	32 / 48	32 / 48	tools
Max Tool Length	100	300	300	300	300	mm
Max Tool Weight	3	8	8	8	10	kg
Max Tool Diameter (full tool)	Ø50	Ø70	Ø70	Ø70	Ø70	mm
Max Tool Diameter (adjacent empty slot)	Ø65	Ø120	Ø120	Ø120	Ø125	mm

Positioning Accuracy

Item	G-400	G-500	G-630	G-800	G-1400	Unit
X/Y/Z (300mm)	0.005	0.005	0.005	0.005	0.005	mm
A-Axis	±5	±5	±5	±5	±5	arc-sec
C-Axis	±5	±5	±5	±5	±5	arc-sec

Repeat Positioning Accuracy

Item	G-400	G-500	G-630	G-800	G-1400	Unit
X/Y/Z (300mm)	0.003	0.003	0.003	0.003	0.003	mm
A-Axis	<4	<4	<4	<4	<4	arc-sec
C-Axis	<4	<4	<4	<4	<4	arc-sec

Machine Data

Item	G-400	G-500	G-630	G-800	G-1400	Unit
Machine Weight	4,800	9,500	13,000	17,000	26,000	kg
Machine Dimensions (L×W×H, excl. chip conveyor)	2200×2900×2300	2700×3500×2900	2960×4200×3350	3300×4600×3600	4500×5500×4000	mm

Core Components

High-Speed Built-in Spindle
Precision Rotary Table
Ball Screw Transmission System
Linear Guideways
Automatic Tool Changer (ATC)
Servo Drive System
CNC Control System
Lubrication System

Advantages

High Precision Machining

Ensures excellent accuracy for complex 3D surfaces and tight tolerance parts.

High Efficiency

Complete multiple machining processes in a single setup.

Strong Rigidity

Stable structure ensures vibration-free cutting performance.

Flexible Application

Suitable for both prototype and mass production.

Optional Configurations

Renishaw Probe System
Tool Setting Device
Chip Conveyor
Oil Mist Collector
Automatic Door System
High-Speed Spindle Options
