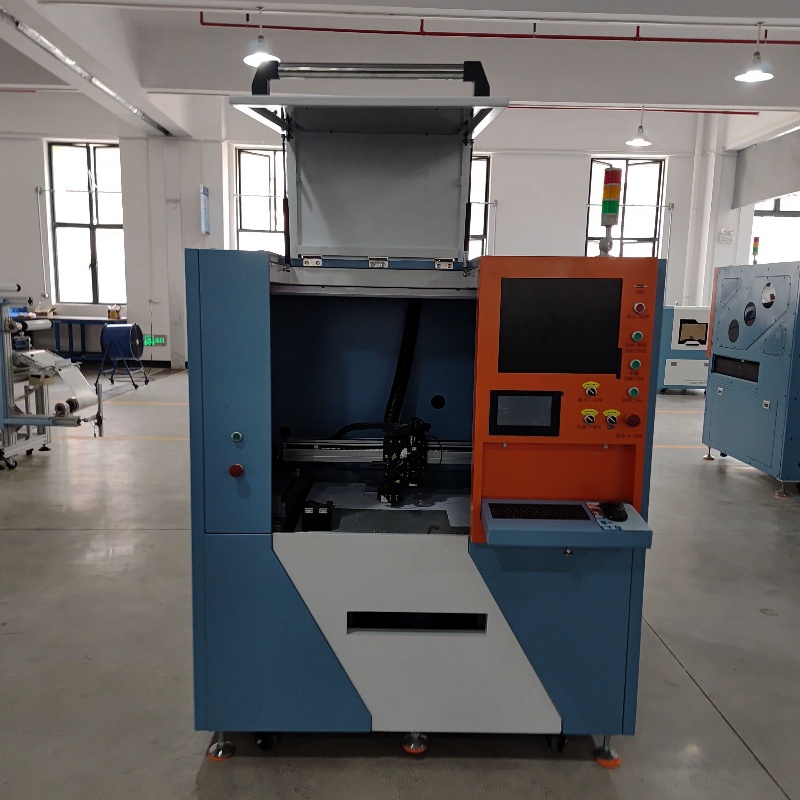

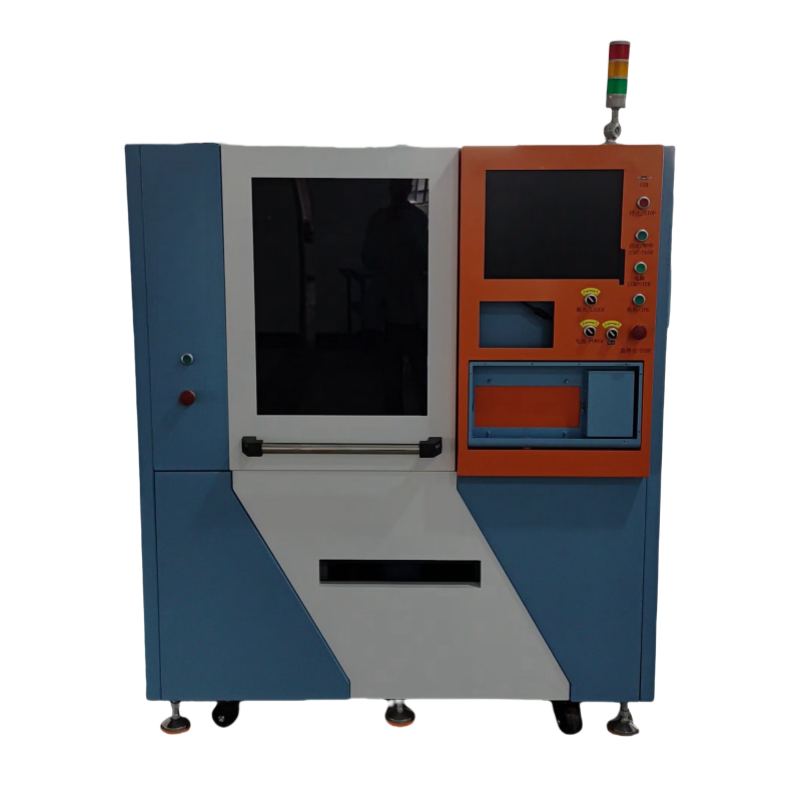

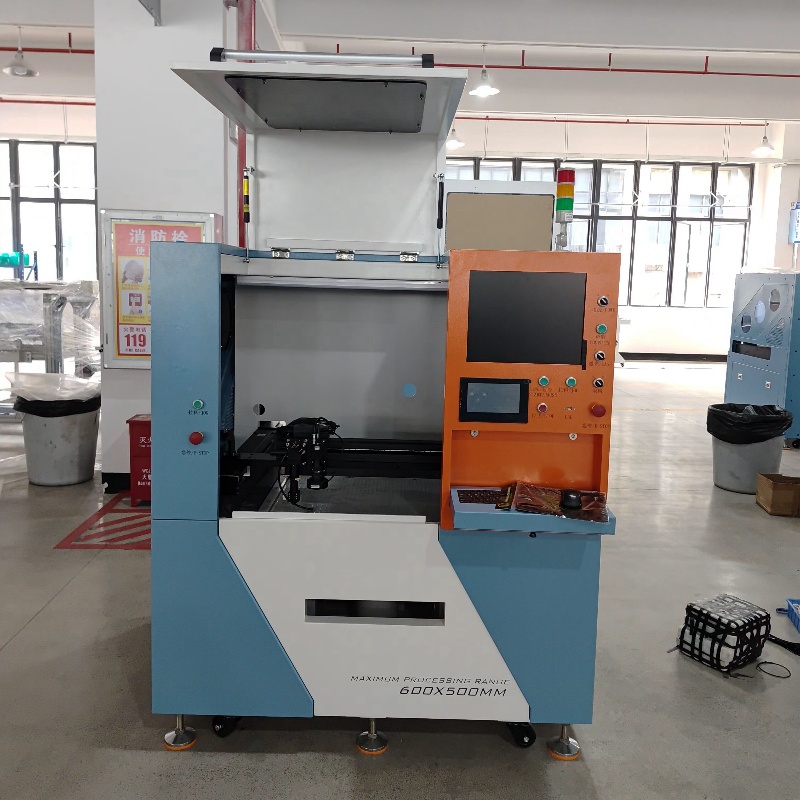

JG-5060D/5060DC
| ITEM | Unit | JG-5060D/5060DC | JG-7080D/7080DC |
|---|---|---|---|
| Feed Width | mm | 500 | 700 |
| Processing Range (WxL) | mm | 500×600 | 700×800 |
| Cutting Speed | mm/s | 0-400 | 0-400 |
| Laser Type | CO₂ Metal Laser | CO₂ Metal Laser | |
| Laser Power | 30/55 | 30/55 | |
| Laser Wavelength | um | 9.3 | 9.3 |
| Cutting Accuracy | mm | 0.03 | 0.03 |
| Positioning Accuracy | mm | 0.01 | 0.01 |
| Total Power | KW | AC220V4.0 | AC220V4.0 |
| Net Weight | Kg | 1000 | 1000 |
| Main Engine Size (LxWxH) | mm | 1450×1300×1400 | 1450×1300×1400 |
| Combined Size | mm | ||
| Graphic Format Support | DXF, AIPLT | DXF, AIPLT | |
| Sucker Type | Vacuum Chuck | Vacuum Chuck | |
| Cutting Energy | Adjustable | Adjustable | |
| Heat Dissipation Mode | Air Cooling | Air Cooling | |
| Operating Temperature | ℃ | 5-30 | 5-30 |
| Applicable Materials | 3M, EVA, PET, PC, PAPER, POLO, OCA, Polarizer Film, Optical Film, Backlight, Foam, Optical Film, Leather, Electronic Insulation Materials, Double-Sided Adhesive, and other non-metallic materials | 3M, EVA, PET, PC, PAPER, POLO, OCA, Polarizer Film, Optical Film, Backlight, Foam, Optical Film, Leather, Electronic Insulation Materials, Double-Sided Adhesive, and other non-metallic materials |

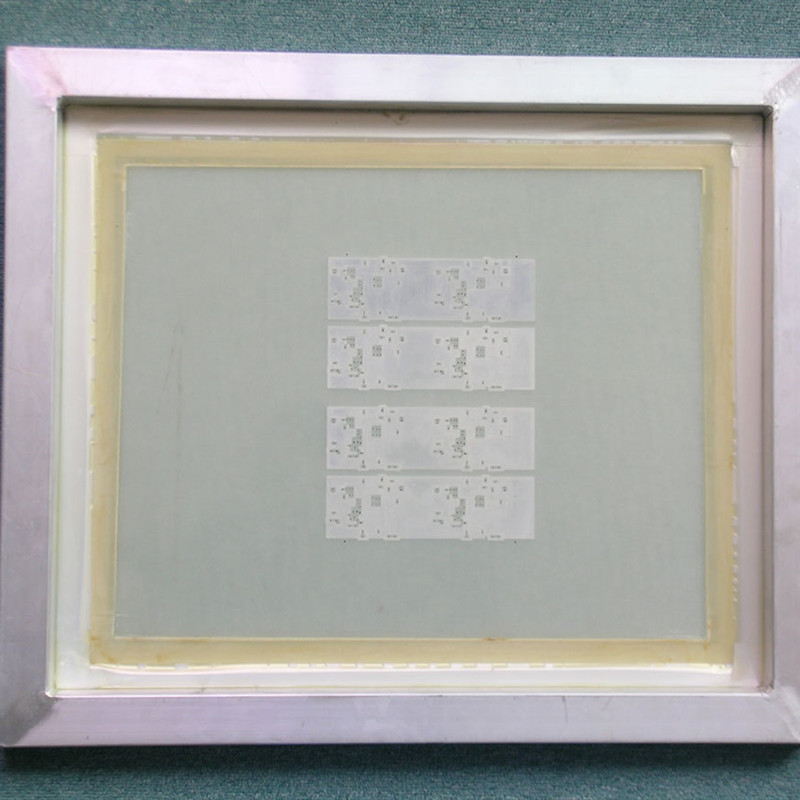

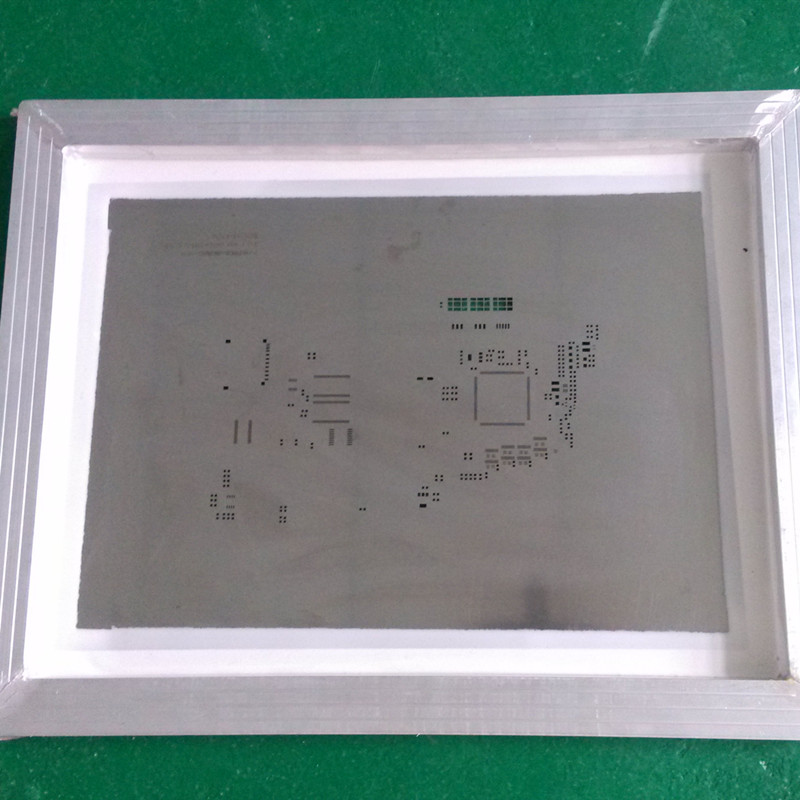

PCB Stencil Cutting: The machine is widely used for precision cutting of PCB stencils, providing highly accurate cuts for circuit boards in the electronics manufacturing industry.
Optical Film Cutting: Ideal for cutting various optical films, such as polarizers, backlight films, and other optical materials used in display technologies.
Foam and Leather Cutting: Capable of cutting soft and flexible materials like foam and leather, providing precise cuts for various applications.
Electronic Insulation Material Cutting: The machine can cut electronic insulation materials with high precision, making it suitable for use in the electronics industry.
Double-Sided Adhesive Cutting: Perfect for cutting double-sided adhesive materials, ensuring clean and accurate cuts without damaging the adhesive surface.
Protective Film and Polarizer Film Cutting: Used for cutting protective films and polarizer films commonly used in screens and displays.
High Precision Cutting: The CO₂ laser cutter offers cutting accuracy up to 0.03 mm, ensuring precise cuts for intricate designs and high-quality finishes.
Multiple Cutting Modes: The machine supports full cutting, half-cutting, and engraving, offering versatility based on material and cutting requirements.
High Efficiency Cutting: With adjustable cutting speeds and laser power, the machine can handle a variety of materials efficiently, reducing production time.
Flexible Graphic Format Support: The laser cutter supports a wide range of graphic formats such as DXF and AIPLT for easy integration into existing design workflows.
Energy-Efficient Design: Equipped with air cooling and a high-efficiency laser, the machine minimizes energy consumption while maintaining consistent cutting quality.
Automated Operation: Features like vacuum chuck and advanced software controls allow for automated cutting with minimal operator intervention.
Versatile Material Compatibility: Suitable for cutting a wide range of non-metallic materials, including EVA, PET, PC, paper, and more.
