50W Backpack Pulse Laser Cleaning Machine Backpack Pulse Laser Cleaning Machine Rust Removal

The laser cleaning machine HN-QX300(II) is designed for removing various contaminants such as rust, oil stains, paint, and oxide films from metal surfaces.
Availability:
Quantity:

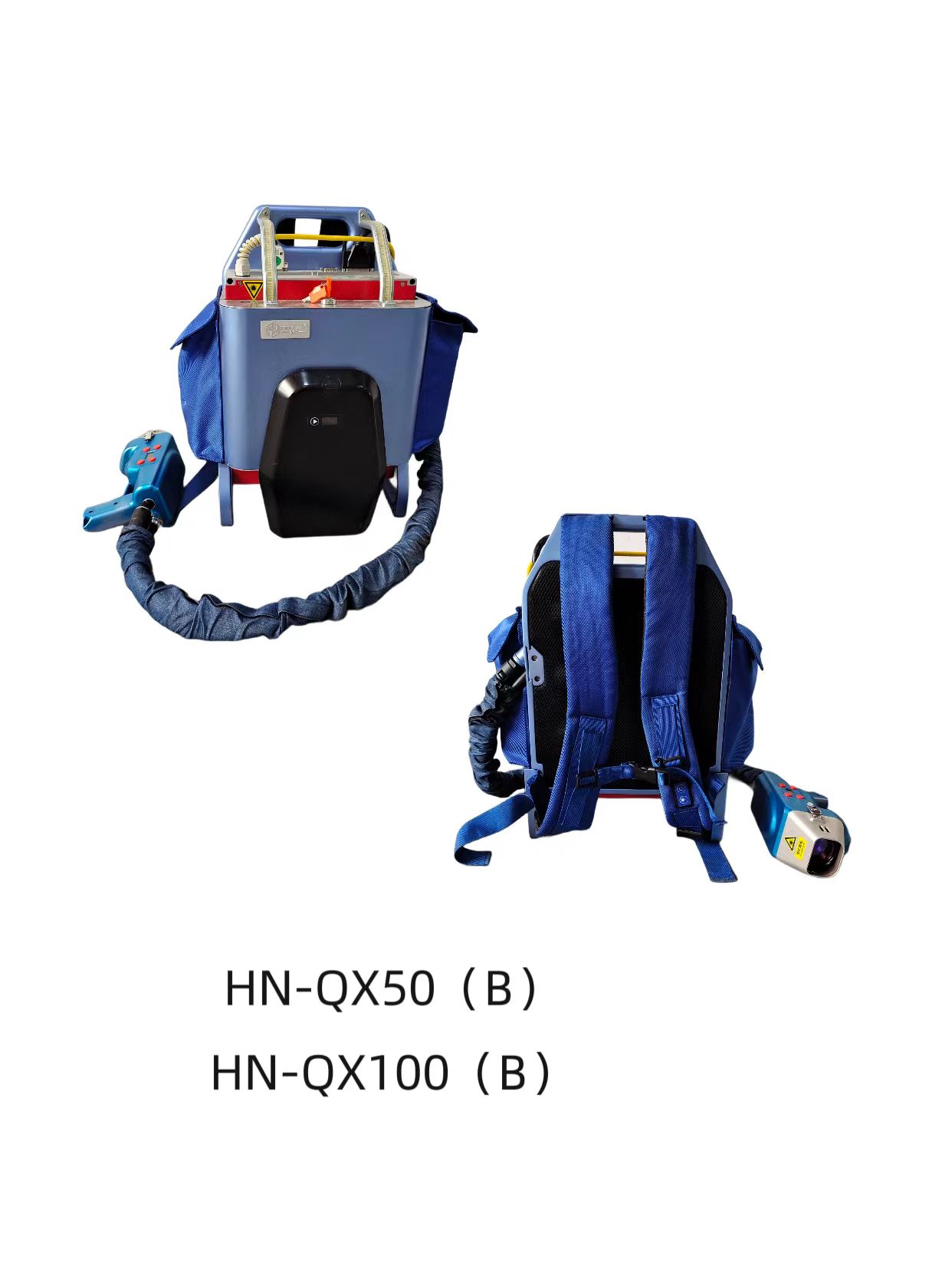

  • HN-QX50(B)

50W Portable Pulsed Laser Cleaning Backpack Machine For Metal Wood Brick Rust Paint 220v

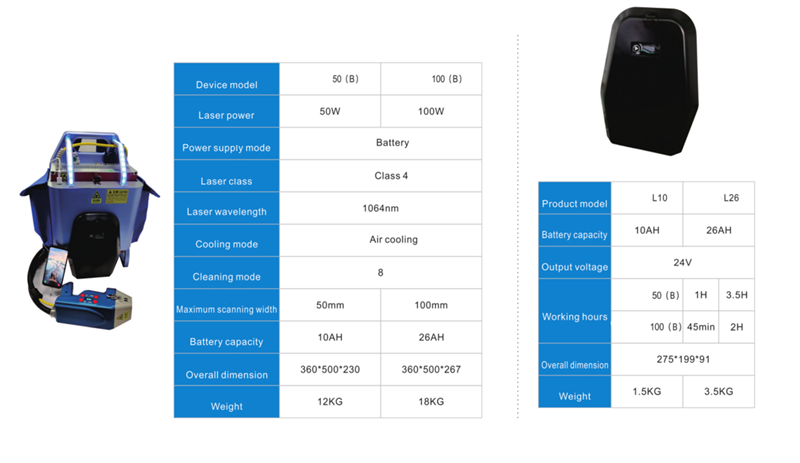

Device Model HN-QX50(B) HN-QX100(B)
Laser Power 50W 100W
Power Supply Mode Battery Battery
Laser Class Class 4 Class 4
Laser Wavelength 1064nm 1064nm
Cooling Mode Air cooling Air cooling
Battery Capacity 10AH 26AH
Cleaning Mode 8 8
Output Voltage 24V 24V
Maximum Scanning Width 50mm 100mm
Overall Dimension 360*500*230 360*500*267
Weight 12KG 18KG

Backpack Laser Cleaning Machine (6)Detachable Battery:


Product Model HN-L10 HN-L26
Battery Capacity 10AH 26AH
Output Voltage 24V 24V
Working Hours (HN-QX50(B)) 1H 3.5H
Working Hours (HN-QX100(B)) 45min 2H
Overall Dimension 275*199*91mm 275*199*91mm
Weight 1.5KG 3.5KG

Backpack Laser

The Backpack Pulsed Laser Cleaning Machine with Detachable Battery is a portable and efficient laser cleaning tool designed for industrial and maintenance applications. This machine combines the convenience of a backpack-style design with the power of pulsed laser technology, making it ideal for removing rust, paint, oil stains, and other contaminants from metal surfaces.

Features:

  1. Pulsed Laser Cleaning Technology:

    • Uses high-energy laser pulses to clean surfaces, effectively removing rust, paint, oil stains, and other contaminants.

    • The laser energy is highly focused and can be precisely controlled, ensuring efficient cleaning without damaging the underlying material.

  2. Portable Design:

    • The backpack design allows for easy mobility, making it suitable for fieldwork and remote locations.

    • It reduces operator fatigue by distributing the weight evenly on the back, offering greater comfort during extended use.

  3. Detachable Battery:

    • The detachable battery provides flexibility for extended working hours without the need for a constant power source.

    • Allows for easy charging and replacement, ensuring continuous operation for large-scale projects.

  4. Minimal Maintenance:

    • The system requires minimal maintenance, as it doesn't rely on chemicals or abrasives that need replenishment or disposal.

    • Low operating costs due to the lack of consumables like sandpaper or cleaning solvents.

  5. High Precision:

    • The laser beam can be finely adjusted to clean specific areas with high accuracy, making it ideal for intricate and delicate parts.

    • Suitable for materials with varying thickness and hardness, such as steel, stainless steel, aluminum, and other metals.

  6. Eco-Friendly:

    • Unlike traditional methods, the laser cleaning process doesn't produce harmful chemicals or waste, making it environmentally friendly.

    • Reduces the need for chemical cleaning agents and hazardous waste disposal.

Applications:

  1. Rust Removal:

    • Efficiently removes rust from metal surfaces without damaging the substrate. Ideal for steel structures, pipelines, ships, and machinery that are prone to rusting over time.

  2. Paint and Coating Removal:

    • Removes old paint, coatings, or varnish layers from metal surfaces, preparing them for recoating or surface treatments.

    • Ideal for automotive, aerospace, and manufacturing industries where paint removal is frequently required.

  3. Oil and Stain Removal:

    • Ideal for removing oil stains, grease, and other contaminants from metal parts, ensuring a clean surface for further processing or inspection.

  4. Mold Cleaning:

    • Used for cleaning molds in industries such as automotive, injection molding, and plastic manufacturing. It removes residues, oxidation, and buildup, extending the life of the molds.

  5. Surface Preparation:

    • Prepares metal surfaces for welding, bonding, or coating by removing oxides, rust, and other impurities that may interfere with adhesion or quality.

  6. Industrial Equipment Maintenance:

    • Suitable for cleaning and maintaining industrial machinery, equipment, and parts that are exposed to harsh environments and accumulate dirt, rust, and oil stains.

  7. Cultural Heritage Restoration:

    • The precision of pulsed laser cleaning makes it ideal for delicate restoration work on historical metal artifacts, statues, and sculptures, where traditional abrasive methods could cause damage.

Advantages over Traditional Cleaning Methods:

  • No Physical Contact: Being a non-contact process, it eliminates the risk of mechanical damage to the workpiece.

  • Reduced Environmental Impact: No need for chemicals or abrasive materials, making it an environmentally friendly alternative to sandblasting or chemical cleaning.

  • Efficient and Cost-Effective: Low operating costs and high efficiency make it a more cost-effective solution over time compared to traditional methods.
