YP-02

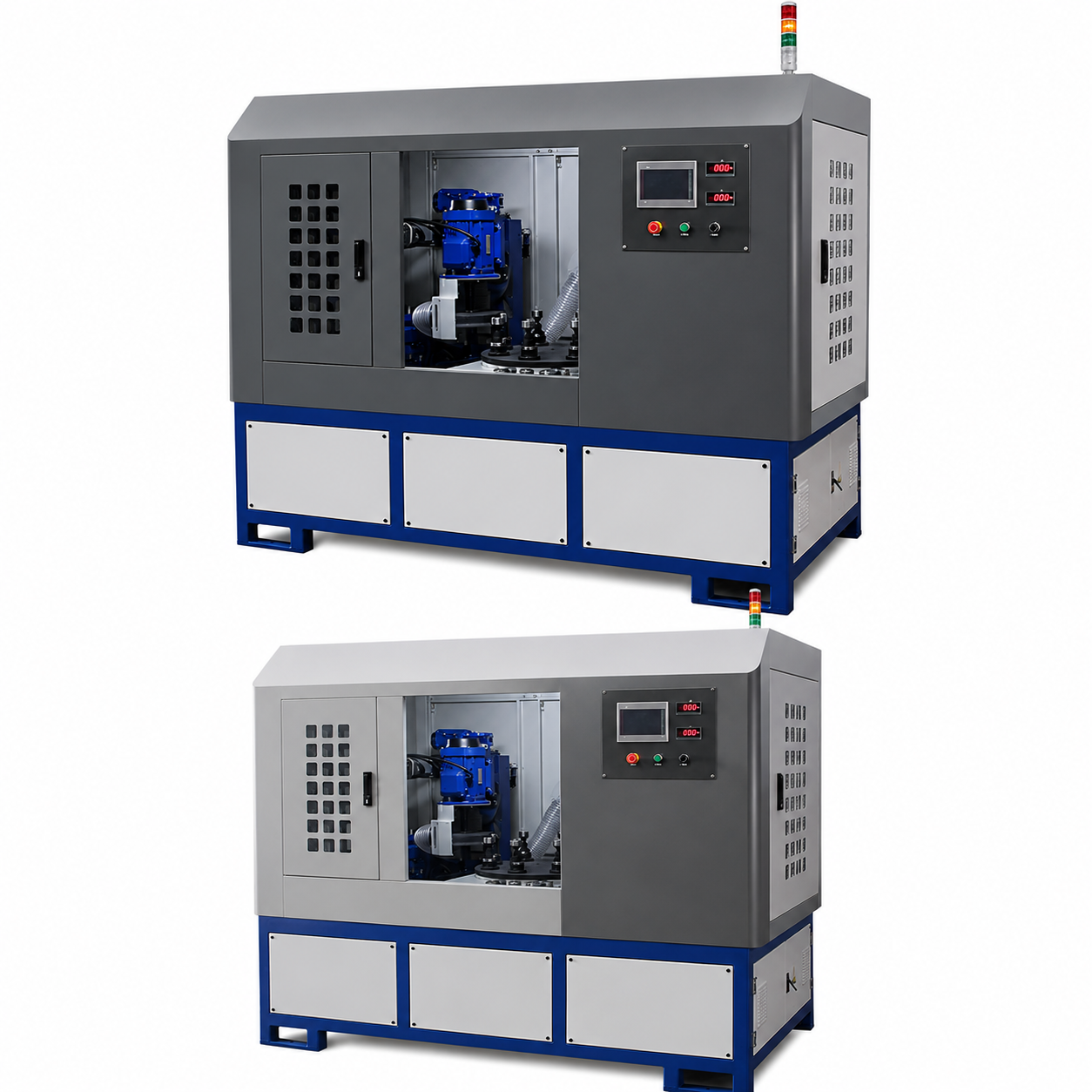

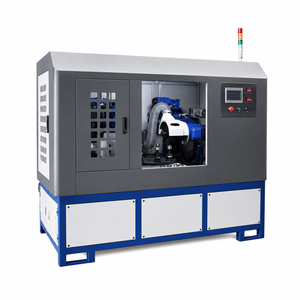

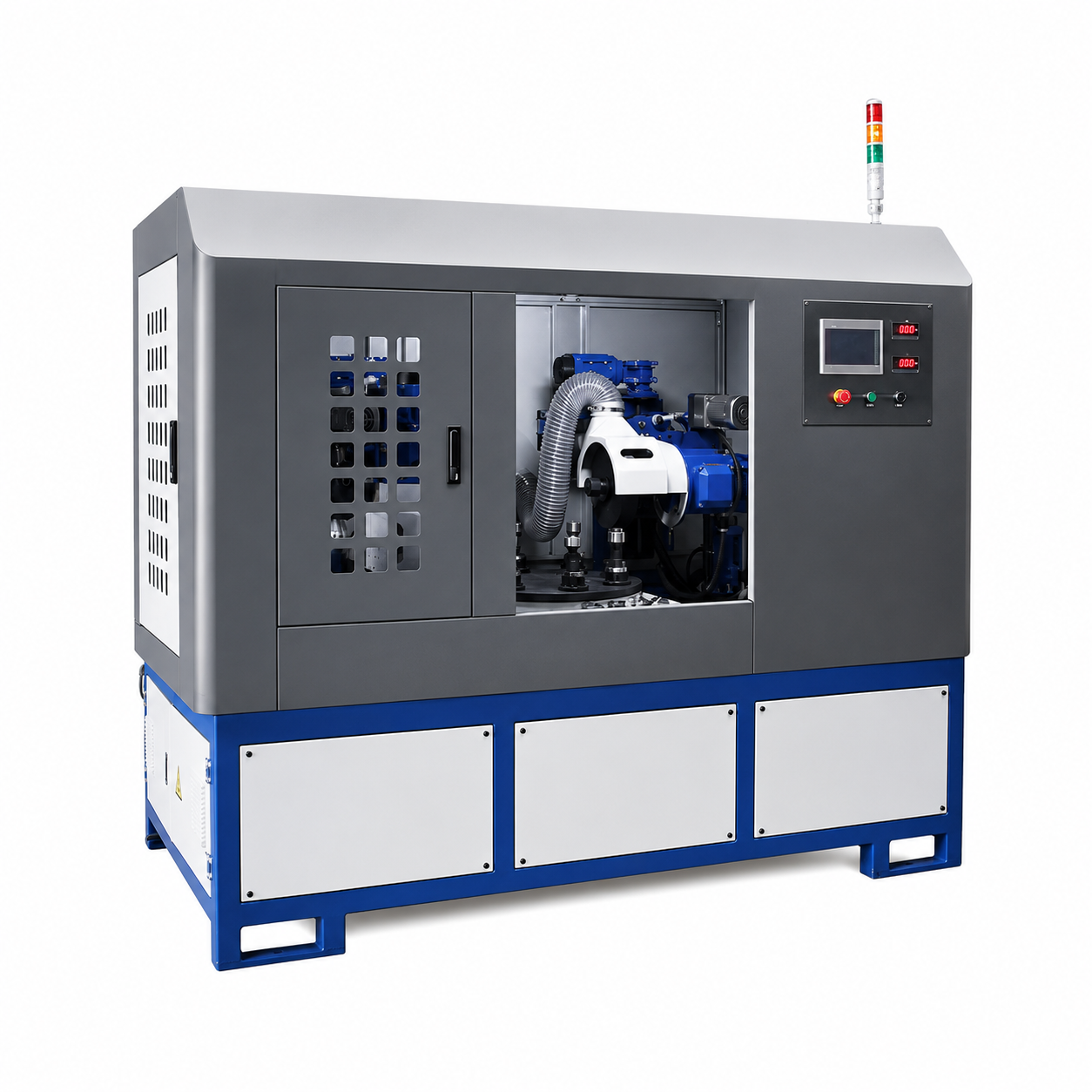

The Multi-Station Automatic Rotary Metal Mirror Polishing Machine is an automated finishing system designed for high-quality surface polishing of metal components. The machine features a dual polishing-head configuration, a centrally driven chain rotary table, and 8 independent workstations.
Each workstation is equipped with a dedicated fixture to securely hold the workpiece during processing. As the rotary table indexes from station to station, the workpieces are automatically positioned in front of the polishing heads for continuous and repeatable surface finishing.
The machine is particularly suitable for metal products that require a high-gloss, uniform and mirror-like surface finish. It can be used for stainless steel, carbon steel, aluminum, copper and other metal materials, depending on the product and polishing requirements.
Different types of polishing wheels, including sisal polishing wheels, cotton buffing wheels and other polishing media, can be selected according to the material, initial surface condition and required final finish.
The machine is equipped with two independent polishing heads, allowing different polishing processes to be performed in sequence.
The polishing heads rotate at high speed and drive the polishing wheels against the workpiece surface. Depending on the required finish, different polishing wheels can be installed on each polishing head.
For example, the first polishing head can be equipped with a sisal wheel for cutting, rough polishing or intermediate polishing. The second head can use a cotton buffing wheel for fine polishing and high-gloss finishing.
This two-stage configuration allows the surface to be progressively refined, improving both the polishing efficiency and the final appearance of the workpiece.
For products with a relatively smooth initial surface, the two polishing heads can also be configured with different polishing materials and process parameters according to the actual application.
At the center of the machine is an 8-station rotary worktable. The table is driven by a chain transmission system and is equipped with eight evenly distributed workstations.
Each workstation can be fitted with a custom-designed fixture suitable for the specific product.
Once the workpiece is loaded and securely clamped, the rotary table indexes the product through the polishing area. The workpieces are processed according to a preset cycle, creating a continuous production process of:
Loading → Clamping → Rotary Indexing → Polishing → Unloading → Repeat
The multi-station design allows different operations to take place simultaneously. While one workpiece is being polished, other stations can be used for loading, unloading or waiting for the next cycle.
Compared with conventional single-station polishing equipment, the 8-station rotary configuration can significantly improve machine utilization and reduce idle time between polishing cycles.
The rotary table is driven by a heavy-duty chain transmission system, providing stable and reliable indexing during continuous production.
The chain drive moves the 8-station worktable according to the programmed indexing sequence, positioning each workpiece accurately at the required polishing location.
The rotary indexing speed and cycle time can be adjusted according to:
Workpiece dimensions
Material type
Polishing wheel specifications
Required polishing time
Surface finish requirements
Production cycle requirements
By optimizing the indexing time and polishing process, the machine can achieve stable and repeatable finishing results.
Each workstation can be equipped with a dedicated product fixture designed according to the shape, size and structure of the workpiece.
The fixture securely holds the product during rotary movement and polishing, helping prevent movement, vibration or displacement that could affect the consistency of the finished surface.
Custom fixtures can be designed for different types of products, including irregularly shaped components and products with complex geometries.
For customers processing multiple product models, quick-change or interchangeable fixtures can also be considered to improve production flexibility and reduce changeover time.
The machine is designed to work with various polishing consumables, particularly sisal polishing wheels and cotton buffing wheels.
Sisal wheels provide relatively strong cutting and polishing performance and are commonly used for rough polishing, cutting and intermediate polishing.
They can help remove machining marks and improve the surface condition before the final polishing stage.
Cotton buffing wheels provide a softer polishing action and are suitable for fine polishing and high-gloss finishing.
When combined with suitable polishing compounds or wax, cotton wheels can further improve surface brightness and produce a smooth, reflective appearance.
The combination of sisal wheel + cotton buffing wheel provides an effective two-stage polishing process for many metal components.
One of the key applications of this machine is metal mirror polishing.
By selecting suitable polishing wheels, compounds and processing parameters, the machine can progressively improve the surface condition of the workpiece, reducing visible machining marks and enhancing surface gloss.
For stainless steel and other suitable metals, the machine can be configured for high-gloss polishing and mirror finishing.
The final surface quality depends on several factors, including:
Raw material and material grade
Initial surface roughness
Workpiece geometry
Polishing wheel type
Polishing compound
Wheel speed
Contact pressure
Processing time
Number of polishing stages
Therefore, the polishing process can be customized according to the specific product and required surface finish.
The 8-station rotary configuration is designed for continuous and repetitive production.
The operator loads the workpieces into the fixtures, while the rotary table automatically indexes according to the programmed cycle. The products are then sequentially transferred to the polishing position for processing.
At the same time, other stations can be used for loading or unloading, allowing the machine to maintain a continuous production cycle.
This configuration is especially suitable for high-volume production of metal components with consistent shapes and repeated polishing requirements.
Compared with conventional manual polishing, automated rotary processing can reduce the amount of intensive manual polishing work required and improve production consistency.
Eight workstations provide a continuous rotary production cycle and improve overall machine utilization.
Two independent polishing heads allow different polishing processes to be combined in a single machine.
The chain transmission system provides stable rotary indexing and is suitable for continuous industrial operation.
Custom fixtures securely position the workpieces during rotary movement and polishing.
Different polishing wheels can be selected according to the required polishing stage and surface finish.
With the appropriate polishing wheels, compounds and process parameters, the machine can be used for high-gloss and mirror polishing applications.
The 8 stations work together to create a continuous loading, polishing and unloading process.
The machine is particularly suitable for repetitive production of metal components with consistent dimensions and polishing requirements.
With suitable fixtures and polishing configurations, the machine can be used for a wide range of metal products, including:
Stainless steel components
Metal hardware
Decorative metal parts
Automotive components
Furniture hardware
Kitchen and bathroom hardware
Mechanical components
Metal fittings
Stainless steel accessories
Other metal products requiring high-gloss or mirror finishing
Different fixtures, polishing wheels and polishing compounds can be selected according to the product geometry and required surface finish.
The Multi-Station Automatic Rotary Metal Mirror Polishing Machine combines dual polishing heads, an 8-station rotary worktable, chain-driven indexing, custom product fixtures, and sisal/cotton wheel polishing technology into one automated finishing system.
Its main advantage is the combination of multi-station rotary production and continuous polishing, allowing loading, processing and unloading to be performed in a coordinated production cycle.
The machine provides an efficient solution for manufacturers looking to improve the productivity, repeatability and consistency of metal surface polishing, particularly for high-volume production requiring a high-gloss or mirror-like finish.
