MSP-M800

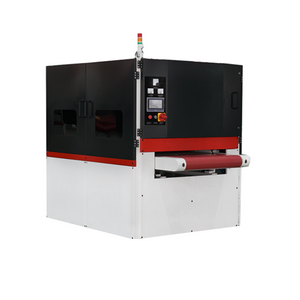

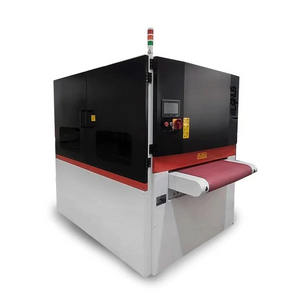

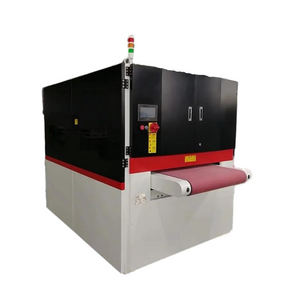

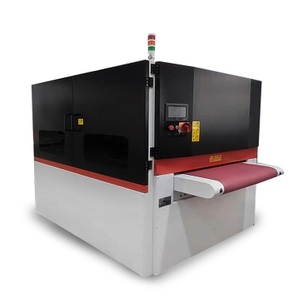

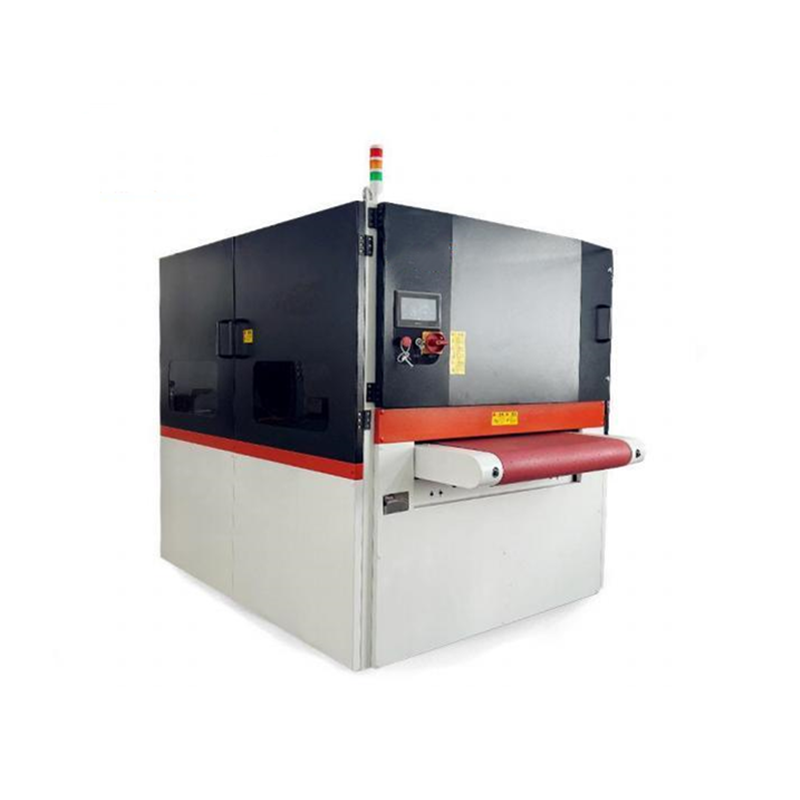

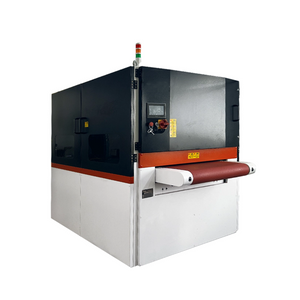

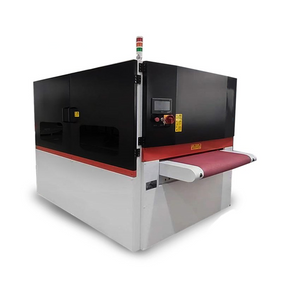

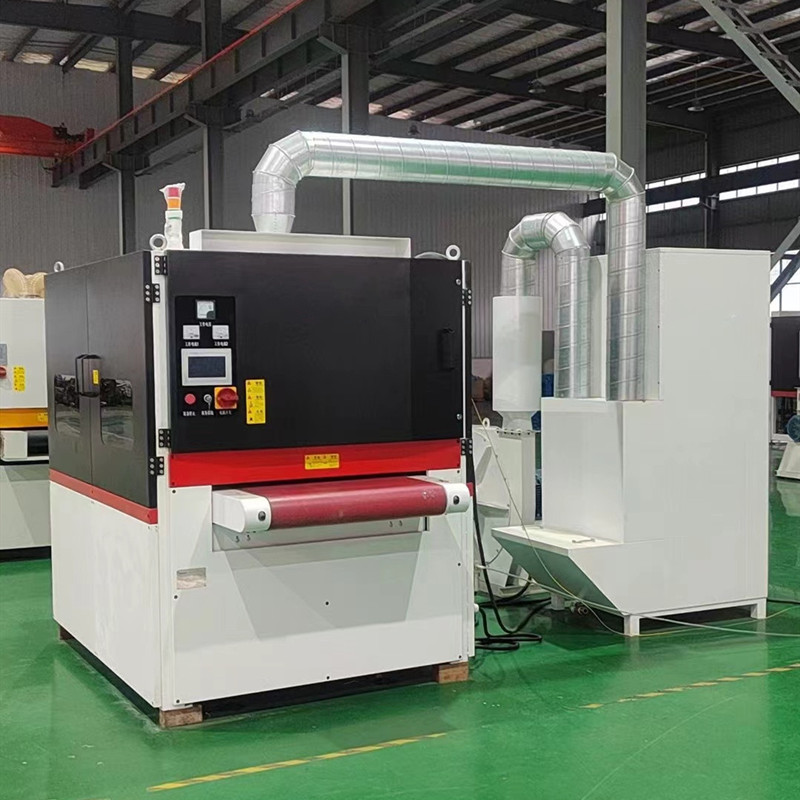

The 800mm Edge Rounding Machine is designed for rounding the sharp edges of metals like steel, aluminum, and stainless steel. This machine is essential in ensuring safety during handling and enhancing paint adhesion in post-processing. Here are the detailed technical specifications and features of this machine:
Material Types:
Steel, Aluminum, Stainless Steel
Process:
Edge Rounding: This machine effectively rounds off sharp edges of metal parts, reducing risks of injury and improving paint adhesion.
Material Thickness:
0.5mm to 80mm
Max. Material Width:
800mm (Ideal for processing larger sheets)
Min. Part Dimensions:
50x50mm (minimum part size to be processed)
Max. Material Weight:
350 kg
Conveyor Speed:
0.5 to 6.0 m/min (Variable speed for different production requirements)
Minimum Deduster Need:
3000 m³/h (Effective dust extraction to maintain a clean work environment)
Power Consumption:
8.3 kW (Standard)
13.8 kW (Maximum Power Consumption)
Machine Weight:
2250 kg (Heavy-duty construction for stability)
| Keyword | Description |
|---|---|
| Edge Rounding | Main function: Rounding metal edges to make them safer and improve paint adhesion. |
| Material | Suitable for materials including steel, aluminum, and stainless steel. |
| Thickness | Supports processing materials with thickness ranging from 0.5mm to 80mm. |
| Max Width | Maximum processing width of 800mm, suitable for large metal sheets. |
| Part Dimensions | Minimum part size 50x50mm. |
| Conveyor Speed | Adjustable conveyor speed, ranging from 0.5-6.0 m/min, to meet various production needs. |
| Deduster Need | Requires 3000 m³/h of dust extraction per hour to maintain a clean working environment. |
| Power Consumption | Standard power consumption of 8.3 kW, with a maximum power consumption of 13.8 kW for efficient operation. |
| Machine Weight | The machine weighs 2250kg, providing high stability and durability. |

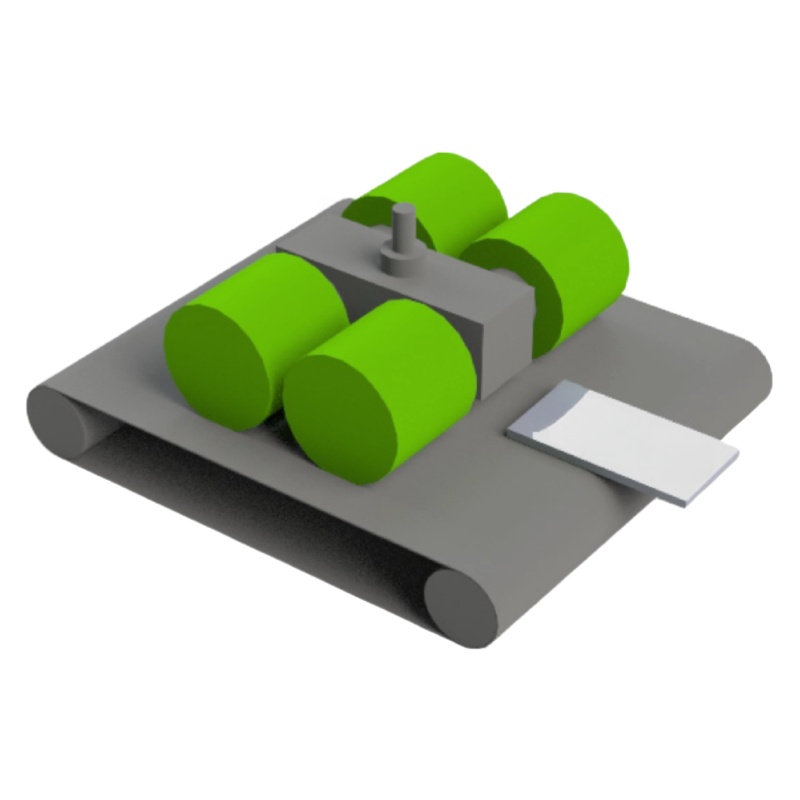

| Flap Wheels | Equipped with 4 Ø300x300mm flap wheels for effective rounding of metal edges. |
Holder System:
Magnetic Holder (Vacuum holder optional for specific applications)
Model:
MSP-M800

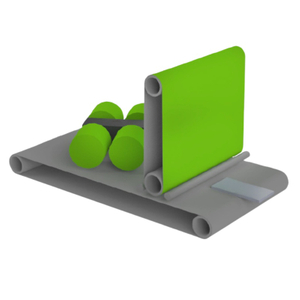

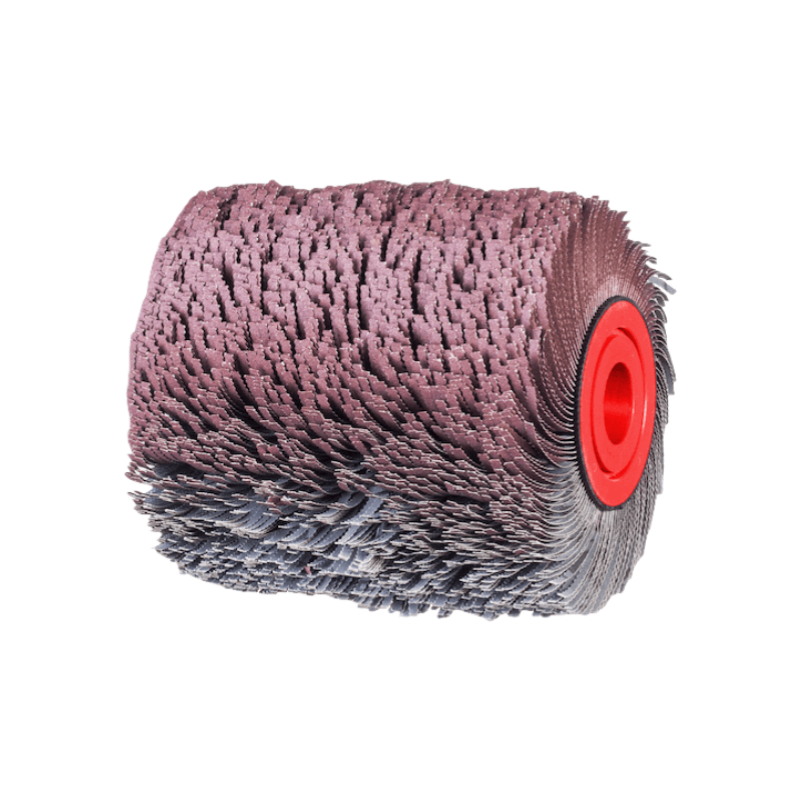

Flap Wheels:
Quantity: 4
Dimensions: Ø300 x 300mm (Large flap wheels for effective rounding)
Conveyor Width:
800mm (Accommodates wide material sheets)
Working Height:
80mm (Standard height for most materials)
Conveyor Speed:
0.5 to 6.0 m/min (Adjustable for varying production speeds)
Energy Consumption:
8.3 kW (Standard operation)
Processes:
Edge Rounding: Efficiently rounds the edges of materials to ensure safety and paint adhesion.
Safety: Rounding sharp edges makes handling safer, preventing cuts and injuries during production and handling.
Paint Adhesion: By rounding the edges, the machine helps enhance paint adhesion during post-processing, providing a smoother and more durable finish.
Versatility: Capable of processing a variety of materials including steel, aluminum, and stainless steel, making it suitable for a range of industries.
High Production Efficiency: With adjustable conveyor speeds and a large working width, the machine can handle high-volume operations with ease.
Dust Management: The high-volume deduster ensures a clean working environment, minimizing the risk of dust accumulation.
