| Quantity: | |
|---|---|
LSB-800
Processing Width:
800mm
Processing Thickness:
1-100mm
Feeding Speed:
0.5-8 m/min (variable frequency adjustable)
Optional Feeding Modes:
Conveyor Belt + Rubber Roller Clamping Feed
Suitable for standard workpieces with a minimum length of 150mm.
Strong Permanent Magnet Adsorption Feed
Suitable for carbon steel workpieces, capable of handling workpieces with a minimum size of 30mm × 30mm.
Vacuum Negative Pressure Adsorption Feed
Suitable for non-magnetic materials such as stainless steel, copper, aluminum sheets, with a minimum workpiece size of 50mm × 50mm.
Rubber Roller + Rubber Roller Clamping Feed
Provides stable feeding with rubber rollers on both the top and bottom sides.
The LSB Series equipment includes a combination of wide or narrow abrasive belts, with configurations for single-sided or double-sided multi-station grinding. It is a multi-functional machine that offers flexible and efficient processing.

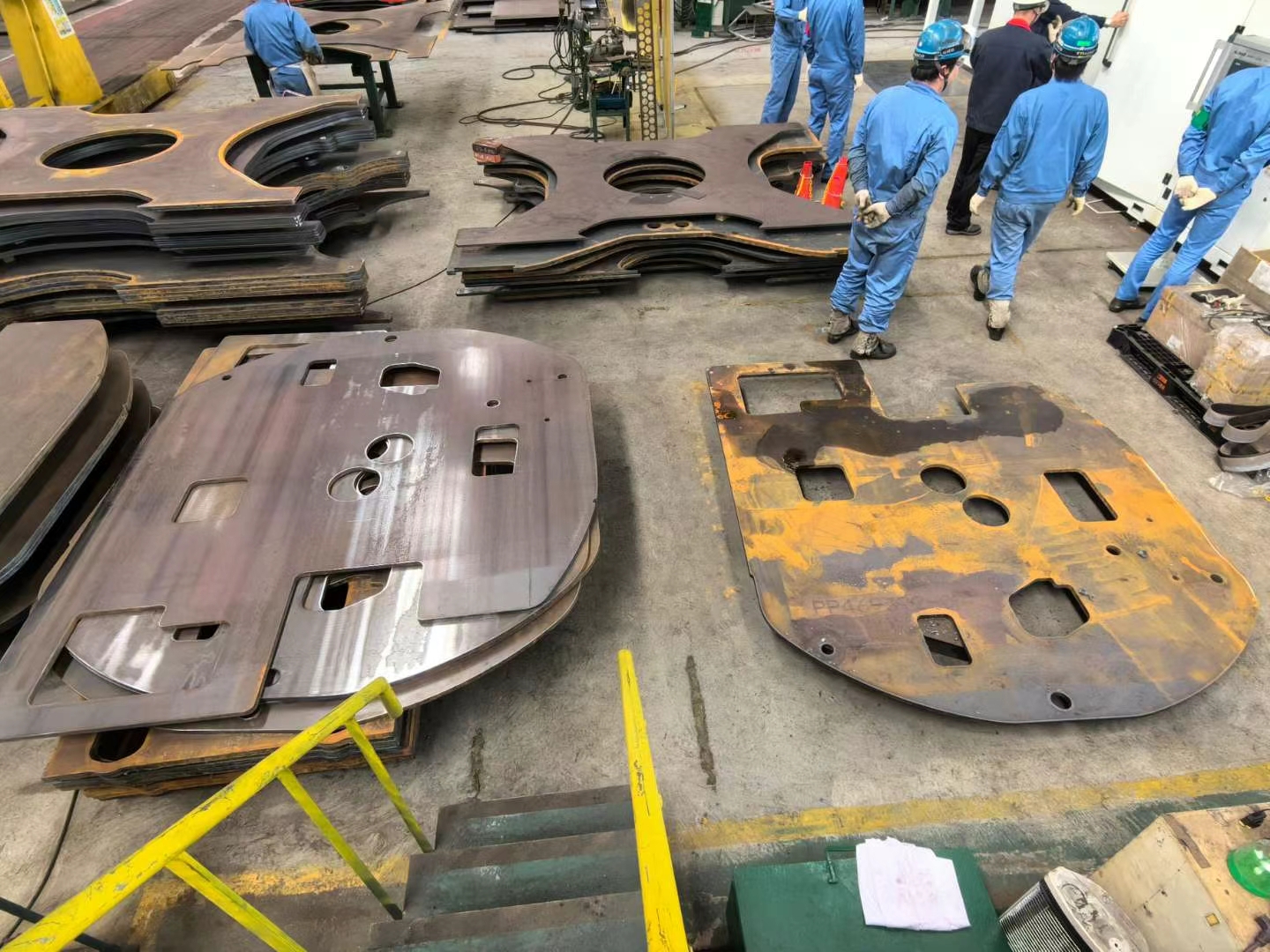

The machine is designed to perform uniform removal of slag and burrs generated from various metal cutting processes including laser cutting, shearing, plasma cutting, flame cutting, stamping, and machining — in a single pass, on one or both sides of the workpiece.
It is ideal for sheet metal surface pre-grinding, deburring of holes and rounded corners, and surface brushing or finishing processes.
High-efficiency deburring is achieved before and after processing. The machine provides excellent edge rounding on all external and internal contours of metal parts, delivering clean, safe, and smooth edges.

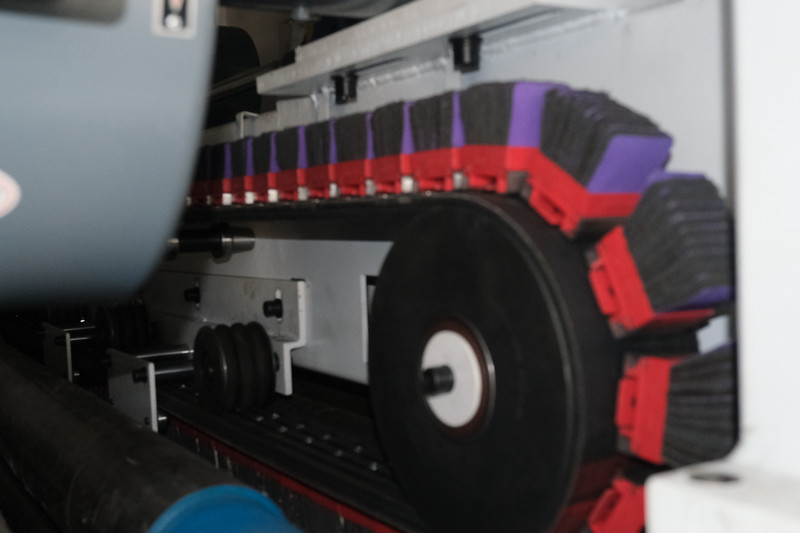

Equipped with two cross belts running in opposite directions, fitted with abrasive blocks, the machine performs uniform edge rounding across the entire perimeter of the part, including complex internal shapes.
Capable of processing small parts down to 50×50mm, ensuring precise and efficient deburring with smooth, burr-free edges.
Supports deburring of parts with plastic protective films. The surface remains intact without scratches, with burr removal occurring only on the edges.
After processes like laser cutting, the edges of the parts are typically sharp, unsafe, and prone to causing injury or damage during handling.
The machine effectively removes sharp edges, leaving rounded, smooth edges that are safer to handle and improve product appearance.
Ideal for punched parts, effectively removing burrs formed during the punching process, enhancing overall product quality.
In addition to edge rounding, the cross belt system produces a uniform linear finish on the entire surface of the workpiece, combining deburring and finishing in one operation.
A parts return conveyor system can be equipped, allowing a single operator to process both sides of small parts efficiently. This simplifies double-sided processing, inspection, and part collection, enhancing productivity.
This machine is specially designed for edge rounding and deburring, with a maximum working width of 800mm, suitable for processing light burrs on a wide range of materials including stainless steel, carbon steel, and aluminum parts. It removes sharp edges from both the outer contours and internal holes, especially after laser cutting, shearing, or punching processes.
It can handle different part sizes, down to 50×50mm, and features double cross belt stations to ensure that all edges are clean, smooth, and burr-free in a single pass. This is the ideal solution for safe, efficient, and high-quality metal finishing.
