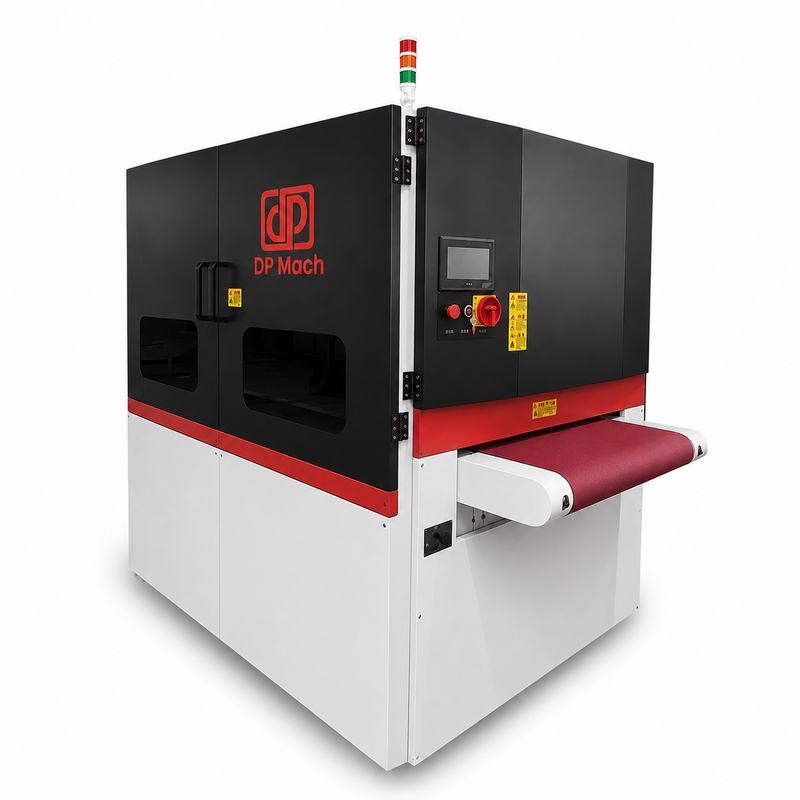

800mm Four-Brush Deburring & Edge Rounding Machine

The 800mm Four-Brush Deburring & Edge Rounding Machine is designed for efficient and consistent deburring, edge rounding, surface finishing, and oxide removal of sheet metal parts. With a maximum processing width of 800mm and a four-brush configuration, the machine provides uniform treatment of part edges and surfaces while improving overall production efficiency and finishing quality.

Key Features

• Maximum Processing Width: 800mm

• Brush Configuration: 4 abrasive brushes

• Main Applications: Deburring, edge rounding, oxide removal, and surface finishing

• Consistent Edge Rounding: Multi-brush processing provides uniform and controlled edge treatment

• Efficient Deburring: Quickly removes sharp edges, burrs, and machining residues

• Improved Surface Quality: Helps create a smooth, clean and consistent surface finish

• Flexible Processing: Suitable for different sheet-metal materials, thicknesses, and surface requirements

• Easy Operation: User-friendly control system for convenient parameter adjustment

• Industrial Construction: Designed for stable operation and continuous production

Four-Brush Processing System

The four-brush configuration enables progressive processing in a single pass. Different abrasive brush types or grit levels can be selected according to the required finishing result.

Brush 1 — Deburring
Removes sharp edges and machining burrs efficiently.

Brush 2 — Edge Rounding
Rounds sharp edges and creates a smooth, safer edge profile.

Brush 3 — Fine Finishing
Further refines the edge and surface quality for a more consistent finish.

Brush 4 — Surface Finishing
Provides final finishing and improves the overall appearance of the workpiece.

Applications

The machine is suitable for processing laser-cut, punched, sheared, and machined sheet-metal parts, particularly where burr removal and edge rounding are required before painting, coating, welding, assembly, or further processing.

Product Advantages

• 800mm working width

• Four-brush configuration

• Effective burr removal

• Consistent edge rounding

• Uniform surface finishing

• Improved workpiece safety and appearance

• Suitable for continuous industrial production

• Reduced manual deburring and finishing work

Machine Features

• Working Width: 800 mm

• Material Compatibility: Stainless steel, carbon steel, aluminum, copper, and alloy sheets

• Deburring & Edge Rounding in One Pass: Integrates multiple processing steps to improve productivity and quality consistency.

• Variable Speed Control: Independent speed adjustment for abrasive belts and brushes for precise processing.

• Vacuum or Conveyor Worktable: Ensures stable and safe sheet transportation, especially for small or thin parts.

• User-Friendly Control Panel: Easy operation with touch-screen interface and digital setting memory.

• Modular Design: Can be configured with different head combinations: abrasive belt + brush + Scotch-Brite wheel + polishing head.

Technical Advantages

• Precision Edge Rounding: Consistent radius formation (up to R2.0 mm) for coating and painting applications.

• High Efficiency: One-pass processing reduces manual work and production time.

• Uniform Surface Quality: Even finish across the entire workpiece surface, ideal for visible components.

• Reduced Manual Labor: Fully automated feed and processing minimize human operation.

• Environmentally Friendly: Optional dust collector and filter system maintain a clean workshop environment.

• Low Maintenance: Durable belts and brushes designed for long service life and easy replacement.

Applications

The 800mm Deburring and Edge Rounding Machine is widely used across various industries for sheet metal surface treatment:

• Sheet Metal Fabrication Workshops
  Removing burrs and rounding edges after laser cutting, plasma cutting, or punching.

• Metal Furniture Manufacturing
  Finishing decorative stainless steel panels and components.

• Automotive and Aerospace Parts
  Preparing aluminum and steel components for coating and assembly.

• Electrical Enclosures and Control Cabinets
  Smoothing edges and removing burrs from galvanized or powder-coated sheets.

• Kitchenware and Appliance Components
  Polishing and rounding stainless steel surfaces for a mirror or brushed finish.

• Heavy Equipment & Machinery Parts
  Removing slag and sharp edges from thick steel plates and structural components.

Processing Examples

• After Laser Cutting: Removes fine burrs and oxide film; smooths edges for painting.

• After Plasma Cutting: Eliminates slag and heavy burrs; prepares thick plates for coating.

• After Punching: Rounds sharp edges and provides uniform surface texture.

• Before Coating: Improves paint or powder adhesion by creating micro-rounded edges.
