Automatic Marking Line Flying Fiber Laser Marking Machine for Pipe PVC Sheet Bearings Auto Parts Electronics

Co2 Online Flying Fiber Laser Marking Machines with Touch Screen Control Laser Marker on PE PPR PVC PIPE Plastic Metal Making
Availability:
Quantity:
Inquire Add to Basket

  • LP-FL-30

  • DAPENG

Automatic Marking Line Flying Fiber Laser Marking Machine for Pipe PVC Sheet Bearings Auto Parts Electronics
Specification
Model
PM-YLP-30X
PM-CO2-30
PM-CO2-100
PM-UV-5
Laser source type
Fiber source
CO2
CO2
UV
Laser Out Power
30W
30W
50W
5W
Laser wavelength
1064nm
1064nm
1064nm
355nm

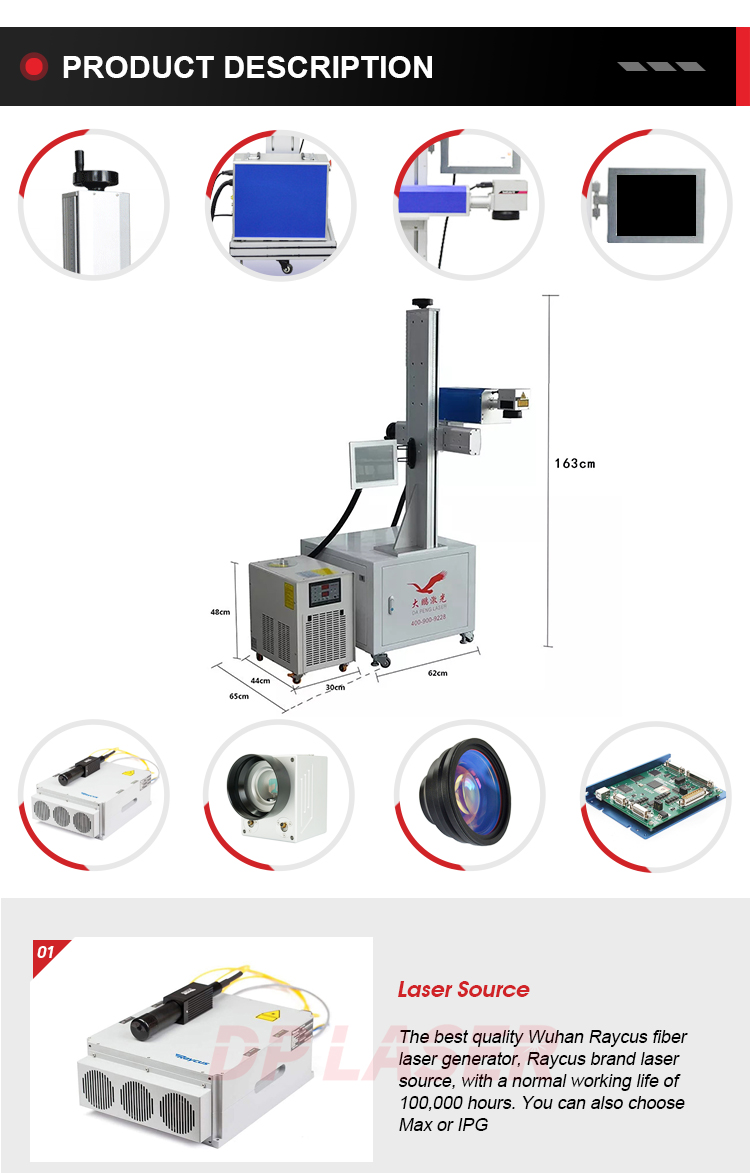

Laser Source
Raycus/Max/IPG
Raycus/Max/IPG
Raycus/Max/IPG
Raycus/Max/IPG
Optional Marking Area
150mm*150mm,180mm*180mm,200mm*200mm,300mm*300mm
150mm*150mm,180mm*180mm,200mm*200mm,300mm*300mm
150mm*150mm,180mm*180mm,200mm*200mm,300mm*300mm
150mm*150mm,180mm*180mm,200mm*200mm,300mm*300mm
Laser frequency
<0.6KW
<0.6KW
<0.6KW
<0.6KW
Repeatability
±0.002mm
±0.002mm
±0.002mm
±0.002mm
Machine operating temperature
0~40℃
0~40℃
0~40℃
0~40℃
Electricity demand
Ac220V±10%.
50HZ.5Amp
Ac220V±10%.
50HZ.5Amp
Ac220V±10%.
50HZ.5Amp
Ac220V±10%.
50HZ.5Amp
Cooling method
Air cooled
Air cooled
Air cooled
Air cooled
Continuous operating time
24 hours
24 hours
24 hours
24 hours
Weight
180kg
180kg
180kg
180kg
Dimensions
80*65*147cm
80*65*147cm
80*65*147cm
80*65*147cm
Software
EZCAD
EZCAD
EZCAD
EZCAD
True Type Fonts
Single Stroke Fonts
Elliptical Text
Sequential Serial Numbers
Customizable Auto Dating
Barcodes
QR Codes and Data Matrix
UID Wizard
Logo
Photo Quality Images - JPG, TIF, GIF
Corel Draw, Adobe Illustrator
Raster Graphics
Vector Graphics
CAD Files

Metal Industry, Jewelry Factories, Hardware Tools, Electronics Components, Auto Parts, Mobile & Accessories, Clock&Watches,Planting Coating Materials, Spray Material, Plastic, Spectacles,etc.
Stainless Steel
Steel
Aluminum, Carbide
Nickel
Titanium
Cast Iron
Chrome
Painted Metal Alloys
Multi-Coated Metals
Plastics/Rubber
Backlit Buttons
Polycarbonate
PVC
Composites
Many more materials
Features:
Laser marking on the fly offers several advantages to manufacturers. Beside the simple reduction in costs and labor using traditional printing methods, on the fly lasing allows for significant improvements in ROI over other forms of laser marking. With no part loading, manually or robotically, parts are rapidly fed across the laser field through to the next part of the manufacturing process.
Vision systems can even allow parts to arrive in the laser field in different orientations. The optics identify the variation to the laser which orients for each part's alignment. This can be done at very high speeds, possibly meaning less time spent getting your parts to face a certain direction.
Dapeng Lasers' engineers have years of experience developing part delivery systems that ensure a combination of high speed and precision lasing.

DP-OTF On The Fly Marking systems
DP-OTF laser marking machine (Marking On The Fly), adopts imported top quality or China top brand fiber laser source , high-speed galvanometer scanning system, Japan electro-optical sensors, and professional On The Fly marking control software, can increase production speed, reduce bad pieces, improve line safety, and eliminate down time.
Applications:
We offer On The Fly Laser Marking Machine with following applications:
l. Laser marking of metal & non-metal material and products: Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper and others
2. Hall marking on Gold
3.Automotive & Engineering Industries
4. Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other instruments
5. Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making
mmexport1649404039113_副本 纷享20220413185048-98_副本
