MSP-HL800

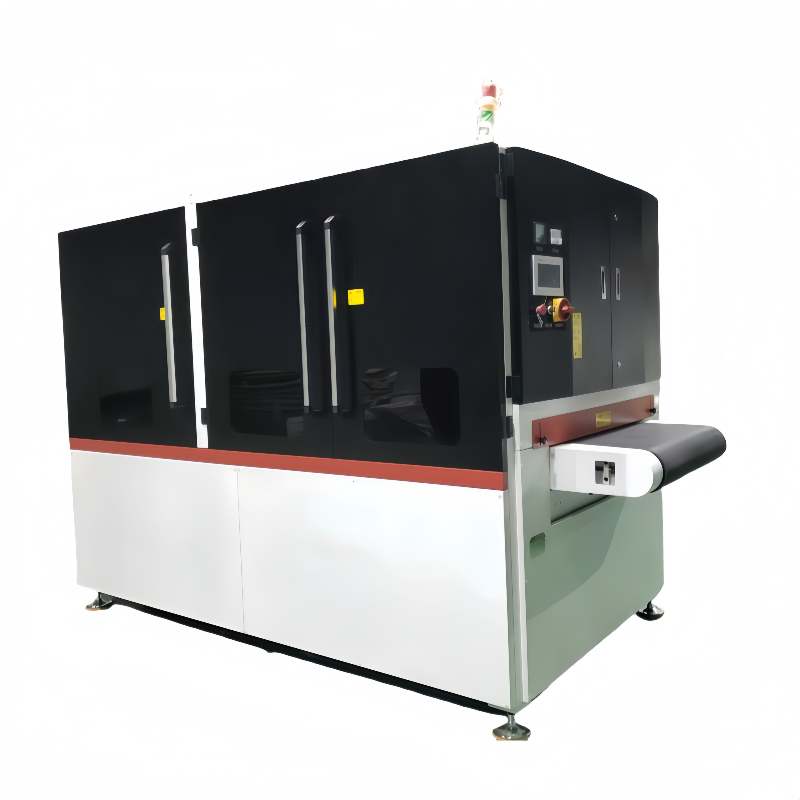

The MSP-HL800 Deburring, Edge Rounding, and Finishing Station is a high-performance industrial machine designed for processing metal plates (e.g., steel, aluminum, stainless steel) to remove burrs, round sharp edges, and achieve a smooth surface finish. It efficiently handles post-thermal cutting imperfections (e.g., from laser, plasma, or flame cutting), enhancing both workplace safety and product aesthetics. The machine is ideal for preparing metal parts for subsequent processes like painting, powder coating, or welding.
| Parameter | Specification |
|---|---|
| Model | MSP-HL800 |
| Compatible Materials | Steel, Aluminum, Stainless Steel |
| Processes | Deburring, Edge Rounding, Finishing |
| Material Thickness Range | 0 - 80 mm |
| Max. Material Width | 800 mm |
| Min. Part Dimensions | 50 × 50 mm |
| Max. Material Weight | 350 kg |
| Conveyor Speed | 0.5 - 6.0 m/min (adjustable) |
| Abrasive System | 4 × Flap Wheels (Ø300 × 300 mm) |
| Working Height | 80 mm |
| Power Consumption | 32.8 kW |
| Holder System | Magnetic (Vacuum Optional) |
| Min. Deduster Requirement | 5500 m³/h |
| Compressed Air Requirement | Min. 5.0 Bar |
| Machine Weight | 3250 kg |
Multi-Function Processing
Combines deburring, edge rounding, and surface finishing in a single pass, eliminating post-cutting slag, burrs, and sharp edges.
Creates uniform rounded edges for improved safety, paint adhesion, and corrosion resistance.
Heavy-Duty Design
Robust construction (3250 kg) ensures stability when processing large plates (up to 350 kg and 80 mm thick).
Suitable for high-volume production environments.
Automated Efficiency
Features a magnetic conveyor (with optional vacuum for non-ferrous materials) for secure material handling.
Adjustable conveyor speed (0.5-6.0 m/min) allows optimization for material type and finish quality.
Workplace Safety & Dust Control
Eliminates manual grinding risks and requires a 5500 m³/h dust extractor to maintain a clean, safe workspace.
Versatile Material Compatibility
Processes steel, aluminum, and stainless steel with consistent results.
To maintain peak performance, the MSP-HL800 supports these consumables:
Flap Wheels
Oxide Removal Wheels
Abrasive Belts:
Ceramic Emery Band
Zirconium Emery Band
Aluminum Oxide Emery Band
Cubitron Emery Band
Scotch Emery Band
Structural steel fabrication (beams, plates, columns).
Metal furniture and architectural components (e.g., railings, partitions).
Transportation and automotive parts (chassis, trailers).
General metal job shops and laser cutting service centers.
