Depeng Exchange Platform Table Fiber Laser Cutters Dual Full Sheet Stainless Steel Auto Feed Laser Cutting Machine

Views: 2     Author: hu     Publish Time: 2022-11-18      Origin: dapeng

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

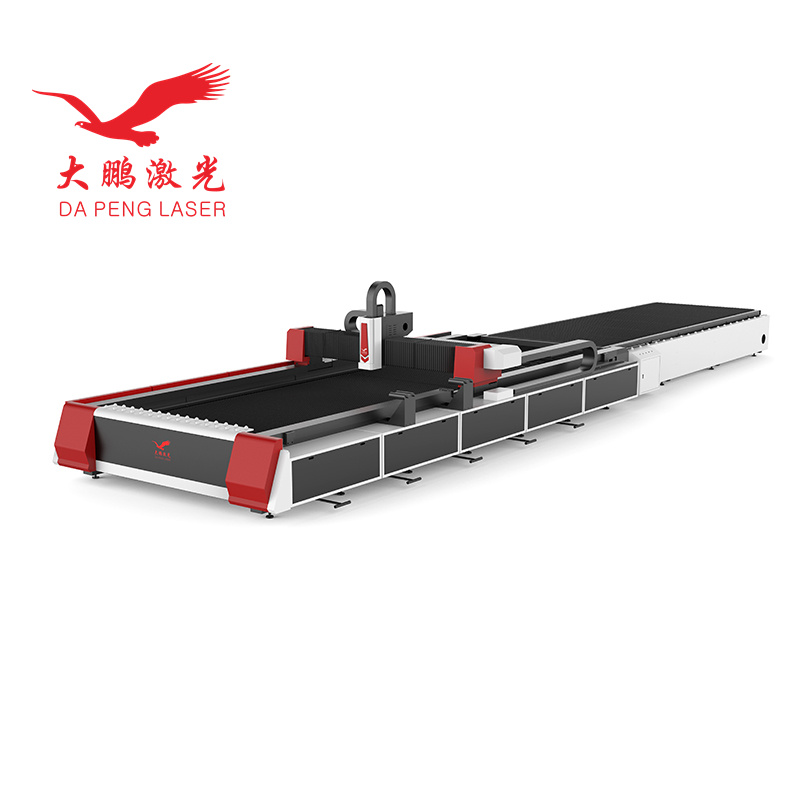

Depeng Exchange Platform Table Fiber Laser Cutters Dual Full Sheet Stainless Steel Auto Feed Laser Cutting Machine

Product Description：

Specification：
Model
DPE-F6020G
Laser source type
Fiber source
Laser Out Power
1070nm
Laser wavelength
500W-3000W
Cutting range
3000×1500mm
Minimum line width
<0.1mm
Transfer method
Precision rack dual drive
Cutting speed and thickness
Depending on specific material
Repeatability
±0.02mm
Machine operating temperature
0~40℃
Electricity demand
380V/50Hz
Cooling method
Water cooling
Continuous operating time
24 hours
Weight
9000KG
Dimensions
10500×2950×2000mm
Maximum operating speed
120m/min
Maximum acceleration
0.3G
X/Ypositioning accuracy
0.03mm
Minimum slit width
0.15mm
Features:
Advertising fiber laser cutting machine · High performance, imported original packaging fiber laser, stable performance, long service life; · High speed, high efficiency · Maintenance free for laser source · The cutting edge has good quality, small deformation, smooth appearance and beautiful appearance; · Imported guide transmission mechanism and servo motor, high cutting accuracy; · Can design any kind of graph or text to cut at will, the operation is simple, flexible, convenient. Can cut a variety of metal sheet, pipe, mainly applicable to stainless steel, carbon steel, manganese steel, copper, aluminum, galvanized sheet, all kinds of alloy plates, rare metals and other materials for rapid cutting.
