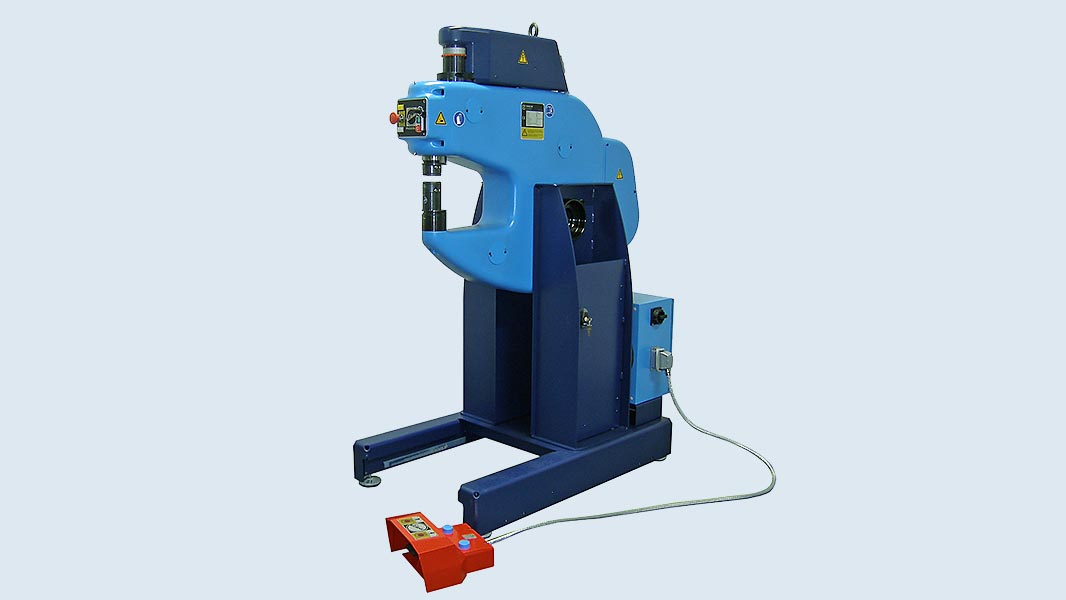

The ECKOLD Kraftformer KF 340 belongs to the mid-range motor-driven Kraftformer series. The operator can continuously regulate the number of working strokes per minute between 220 and 600, depending on the workpiece and application. The infinitely variable stroke speed ensures optimal working conditions.
A low stroke speed is ideal for operations such as shrinking, stretching, clamping, straightening, or achieving a precise surface finish. High speed is used for doming (bombing) and smoothing sheet metal parts, which increases productivity.
As with all ECKOLD Kraftformers, the wide variety of tools makes the KF 340 an all-rounder. This machine is powerful and can form steel sheets up to 3 mm thick!
| Feature | Value |
|---|---|
| Horizontal throat depth | 340 mm |
| Vertical throat depth | 245 mm |
| Working strokes per minute (adjustable) | 220 – 600 |
| Max. formable sheet thickness – Steel (Rm ~400 N/mm²) | max. 3.0 mm |
| Max. formable sheet thickness – Aluminum (Rm ~250 N/mm²) | max. 4.0 mm |
| Max. formable sheet thickness – Stainless Steel (Rm ~600 N/mm²) | max. 2.0 mm |
