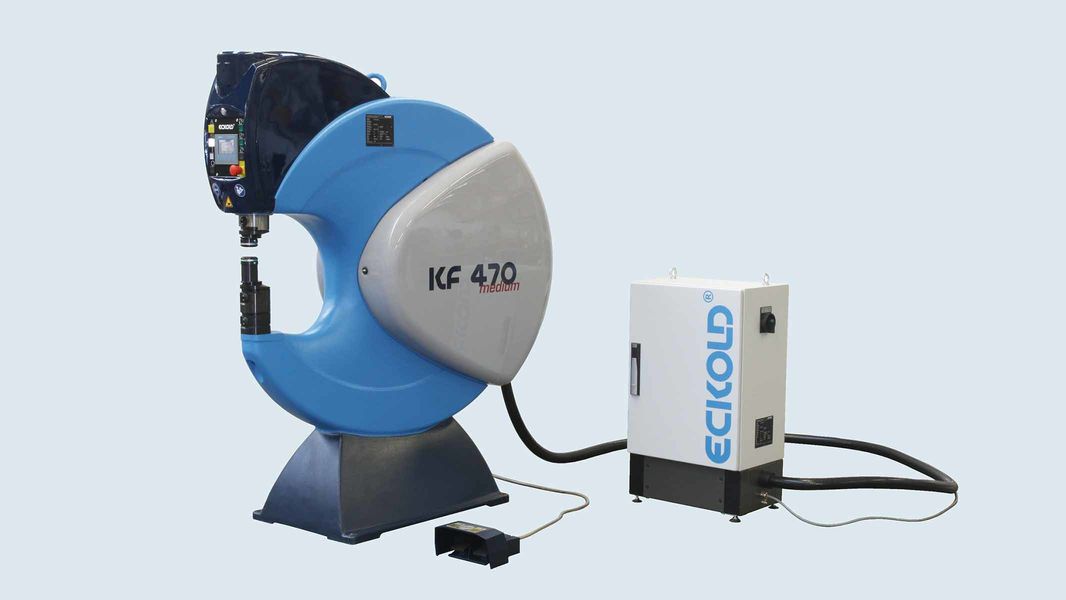

The ECKOLD Kraftformer KF 470 Medium is the second largest machine in the Kraftformer family. Its exceptional robustness, long service life, and the combination of high pressing force with sensitive adjustment capabilities, along with a modern, contemporary design, define this new generation of Kraftformers.
The electronic display of the control system shows operating functions, error diagnostics, and maintenance intervals, ensuring optimal machine utilization. Storable processing programs allow for repeatable, consistent results.
This Kraftformer is ideal for sheet metal work in industrial metal construction. With a horizontal throat depth of 460 mm, it is capable of forming larger components with sheet thicknesses up to 3.0 mm in steel.
Thanks to its extensive range of tool inserts for a wide variety of applications, the machine offers maximum flexibility.
Modern, contemporary design
Two selectable stroke speeds
Adjustable return stroke position
Four storable processing programs
Repeatable results through saved processing programs
Electronic display and fault diagnostics
| Feature | Value |
|---|---|
| Horizontal throat depth | 460 mm |
| Vertical throat depth | 475 mm |
| Working strokes per minute | 300 / 600 |
| Max. formable sheet thickness – Steel (Rm ~400 N/mm²) | max. 3.0 mm |
| Max. formable sheet thickness – Aluminum (Rm ~250 N/mm²) | max. 4.0 mm |
| Max. formable sheet thickness – Stainless Steel (Rm ~600 N/mm²) | max. 2.0 mm |
