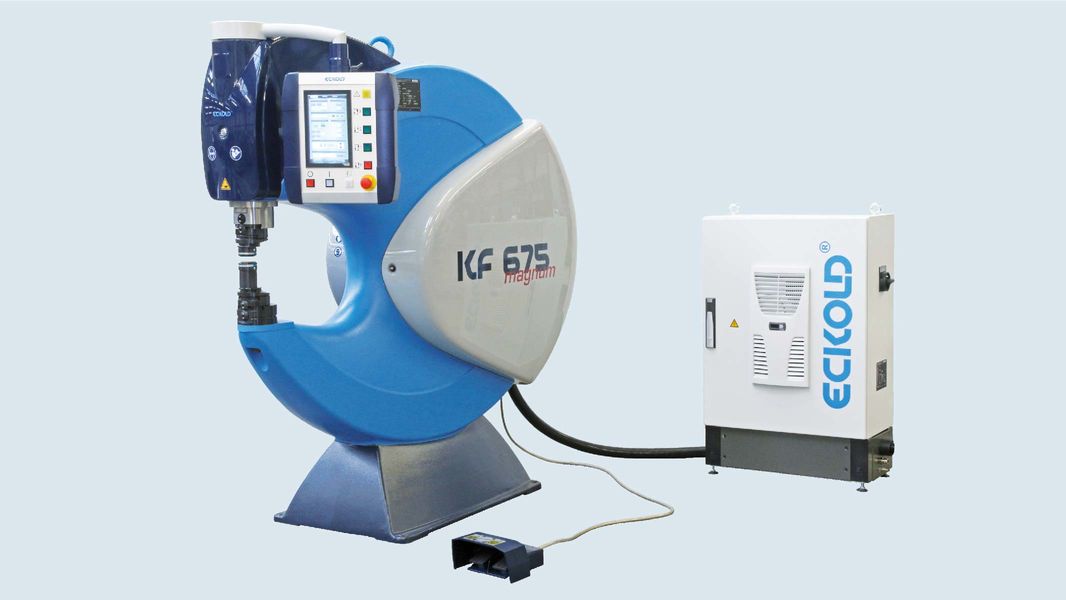

A modern design, freely selectable stroke speeds, and repeatable results through storable processing programs are just a few of the advantages of the KF 675 Magnum Kraftformer. With a horizontal throat depth of 675 mm, it is capable of forming even very large parts with sheet thicknesses up to 6.0 mm in steel.
The ECKOLD Kraftformer KF 675 Magnum is servo-driven and is the largest machine in the Kraftformer series. Thanks to its solid construction and precise operation, it is in use at nearly all aircraft and shipyards both domestically and internationally. Manufacturers of rail vehicles and classic car restorers also appreciate its ease of use.
Key features of the machine include sensitive corrections even under high pressing forces, as well as maximum versatility due to the wide range of compatible tool inserts.
With servo-adjustable stroke position and repeat accuracy of 0.1 mm, the KF 675 Magnum delivers precise and consistent results, significantly reducing user error. Tool recognition, electronic fault diagnostics, and visible maintenance intervals ensure optimal machine utilization.
Freely selectable stroke speeds
Adjustable return stroke position
25 storable processing programs
Repeatable results thanks to saved programs
Tool recognition
Electronic fault diagnostics
Modern, contemporary design
| Feature | Value |
|---|---|
| Horizontal throat depth | 675 mm |
| Vertical throat depth | 450 mm |
| Working strokes per minute | Freely selectable, ~150–600 |
| Max. formable sheet thickness – Steel (Rm ~400 N/mm²) | max. 6.0 mm |
| Max. formable sheet thickness – Aluminum (Rm ~250 N/mm²) | max. 6.0 mm |
| Max. formable sheet thickness – Stainless Steel (Rm ~600 N/mm²) | max. 4.0 mm |
