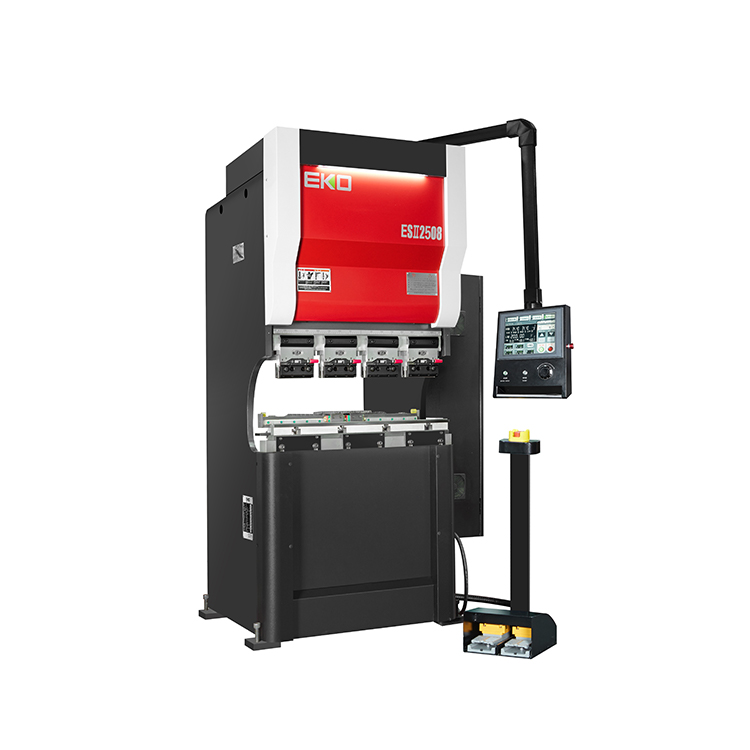

| Model | ESII2508 |
| Length（mm） | 1350 |
| Width（mm） | 1050 |
| Height（mm） | 2330 |
| Opening height（mm） | 370 |
| Height in operation（mm） | 250 |
| Throat depth（mm） | 200 |
| Frame distance（mm） | 820 |
| Lower worktable height（mm） | 880 |
| Capacity (T) | 25 |
| Bending length（mm） | 800 |
| Stroke（mm） | 100 |
| Back gauge stroke（mm） | 300 |
| Total power (KW) | 11.6 |
| Total weight (T) | 1.9 |
| Number of axis | 6 |
| Accuracy of axis D1 | ±0.005 |
| Accuracy of axis D2 | ±0.005 |
| Accuracy of axis L | ±0.01 |
| Accuracy of axis Z | ±0.1 |
| Accuracy of axis Y1 | ±0.1 |
| Accuracy of axis Y2 | ±0.1 |
| Approach speed of axis D1/D2 | 160mm/s |
| Bending speed of axis D1/D2 | 0.2-50mm/s |
| Return speed of axis D1/D2 | 160mm/s |
| Moving speed of axis L | 500mm/s |
| Moving speed of axis Z | 250mm/s |
| Moving speed of axis Y1 | 700mm/s |
| Moving speed of axis Y2 | 700mm/s |
Machine Details：
