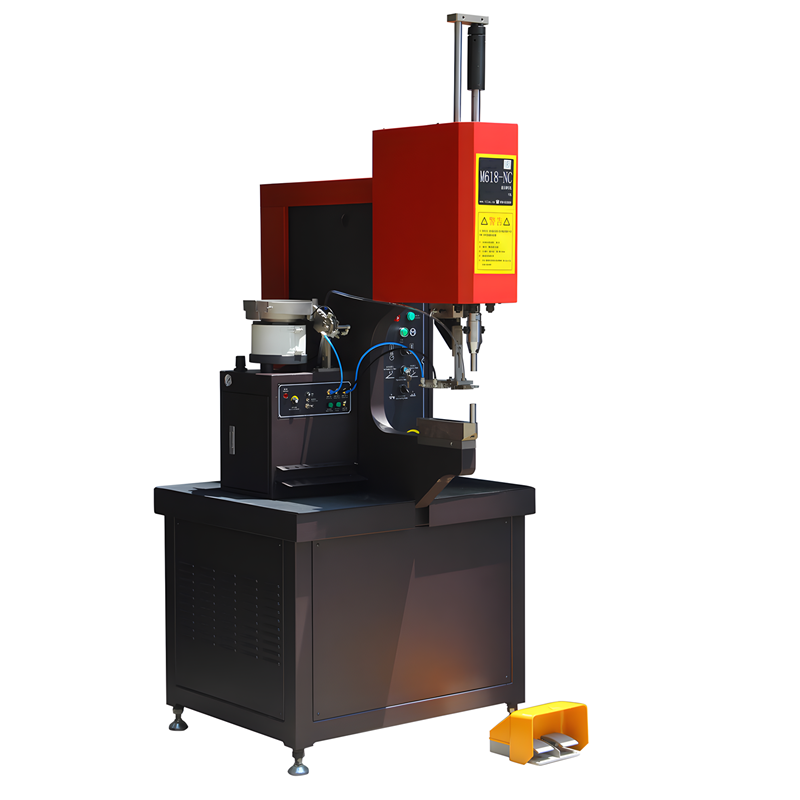

Fastener Insertion Machine Automatic Riveting Machine M618-NC (Dual Pump) for Sheet Metal

Pneumatic and Hydraulic Riveting Machine Fastener Insertion Machine
Availability:

  • M618-NC (Dual Pump)

Equipment Overview:

The M618-NC (Dual Pump) automatic riveting machine is a high-efficiency, multifunctional riveting device widely used in industries such as sheet metal processing, electronics, automotive manufacturing, and aerospace. It is suitable for automatic pressing and installation of various fasteners, including nuts, bolts, and standoffs.

自定义高清放大 (1)

Specification Details
Working Voltage 380V
Order Number M618-NC (Dual Pump)
Slider Stroke 200mm
Machine Dimensions 930 x 1100 x 2100 mm
Machine Weight 1000 kg
Machine Throat Depth 400mm
Operation Touchscreen operation
Safety Anti-compression hand protection
Limit Forward limit
Counting Anti-leak counting, Riveting counting
Equipment Power 1.5 kW
Phases 3-phase, 4-core
Maximum Pressure 53 kN
C-Frame Opening Depth 650mm
C-Frame Opening Height 450mm

Specifications:

  1. Applicable Workpiece Size:

    • Maximum workpiece size: 800mm × 600mm

    • Riveting height range: 50mm - 200mm (adjustable)

  2. Applicable Fasteners:

    • Nuts, bolts, riveting screws, standoffs, and other fasteners.

    • Materials: Stainless steel, carbon steel, aluminum alloy, etc.

  3. Working Pressure:

    • 0-6 tons (adjustable based on fastener type and workpiece material).

  4. Hydraulic System:

    • Dual pump design providing efficient power output.

    • Automatic switching between high and low pressure for quick movement and precise riveting.

  5. Control System:

    • NC control system supporting precise pressure settings and automated operation.

    • Touchscreen interface with parameter storage and quick recall.

  6. Precision:

    • Riveting accuracy: ±0.02mm

    • Pressure control accuracy: ±0.1 tons

  7. Operation Efficiency:

    • Single riveting cycle: 1.5 to 3 seconds (depending on fastener type).

    • Supports continuous operation mode, ideal for mass production.

  8. Electrical Parameters:

    • Power supply: 380V / 50Hz

    • Power consumption: 3.7kW (independent power for dual pumps).

  9. Dimensions:

    • Machine dimensions: Approximately 1.2m × 1.0m × 2.0m

    • Machine weight: Approximately 850kg

Features and Functions:

  1. Dual Pump Hydraulic System:

    • High-pressure pump provides precise riveting force.

    • Low-pressure pump accelerates workpiece movement, reducing idle time and increasing production efficiency.

  2. NC Control:

    • Supports multi-step riveting programs for complex workpieces.

    • Real-time monitoring of pressure and position ensures stable riveting performance.

  3. Quick Mold Change:

    • Easy mold installation supports quick switching for various fasteners.

    • Accommodates different shapes and sizes of workpieces.

  4. Optional Automatic Feeding System:

    • Compatible with vibration feeders or robotic arms to further enhance automation.

  5. Safety Features:

    • Equipped with a photoelectric protection system to prevent accidental injuries.

    • Hydraulic overload protection extends the equipment's service life.

Application Scenarios:

  • Sheet Metal Processing: Pressing nuts and bolts for enclosures, cabinets, and chassis.

  • Automotive Manufacturing: Riveting connectors for automotive parts.

  • Electronics and Electrical: Assembly of connectors or conductive components inside cabinets.

  • Aerospace: Precision riveting of lightweight metal sheets


智能抠图 (1)

55 (2)55 (3)55 (1)
