G-1400

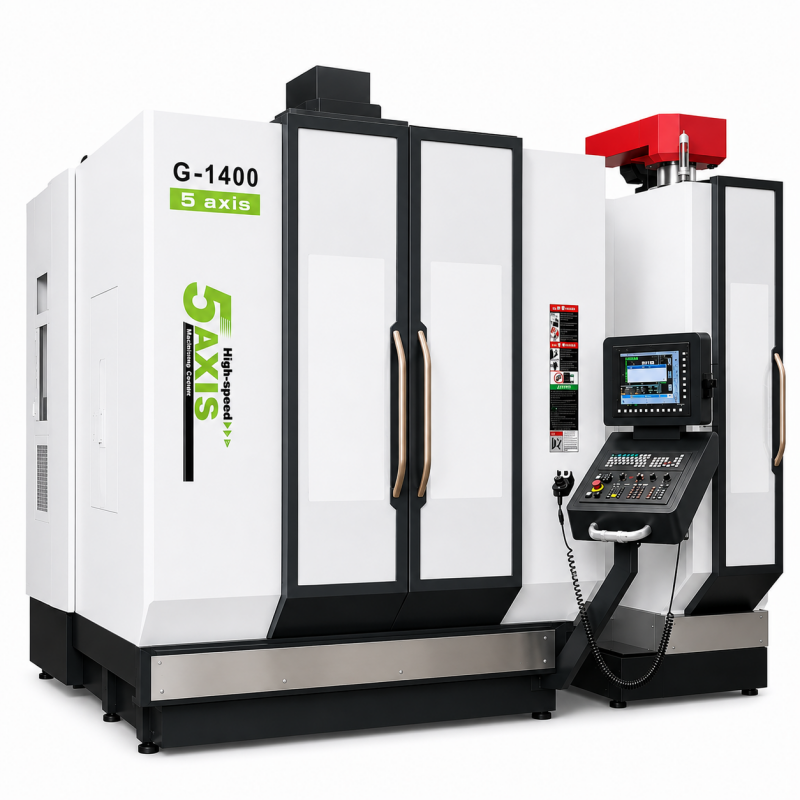

The G-1400 5-Axis CNC Machining Center is a high-performance CNC machining solution designed for large and complex components with a maximum machining size of up to 1400 mm.
With advanced 5-axis machining technology, the G-1400 can perform multi-surface and complex contour machining in a single setup. This helps reduce workpiece repositioning, improve machining accuracy and increase production efficiency.
The machine is particularly suitable for large automotive components, structural parts, aluminum alloy components, molds and other complex metal workpieces requiring high-precision machining.
The G-1400 features a rigid machine structure, high-precision spindle system and advanced CNC control technology, providing stable and reliable performance for both heavy-duty cutting and precision machining.
5-axis CNC machining capability
Maximum machining size up to 1400 mm
Designed for large and complex workpieces
High-rigidity machine structure
High-precision machining performance
Multi-surface machining in a single setup
Reduced workpiece repositioning
Suitable for complex 3D surfaces and contours
Automatic tool changing system
Suitable for aluminum, steel, stainless steel and other metals
Ideal for prototype, small-batch and mass production
The G-1400 is suitable for machining large automotive components and structural parts, including:
Automotive Structural Components
Engine Components
Transmission Housings
Gearbox Components
Chassis Components
Suspension Components
Steering Components
Automotive Molds
Large Aluminum Alloy Parts
Complex Automotive Metal Parts
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Table Size | 320 | 400 | 500 | 630 | 1200 | mm |
A-Axis Tilting Angle | ±110 | ±110 | ±110 | ±110 | ±110 | ° |
C-Axis Rotation Angle | 360 | 360 | 360 | 360 | 360 | ° |
A-Axis Rotation Speed | 100 | 100 | 80 | 80 | 50 | rpm |
C-Axis Rotation Speed | 200 | 200 | 120 | 120 | 100 | rpm |
Max Table Load | 100 | 250 | 450 | 850 | 2000 | kg |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X-Axis Travel | 400 | 500 | 600 | 800 | 1400 | mm |
Y-Axis Travel | 600 | 650 | 800 | 900 | 1400 | mm |
Z-Axis Travel | 350 | 450 | 480 | 600 | 900 | mm |
90° Y Front Travel | 350 | 400 | 450 | 550 | 750 | mm |
Spindle Nose to Table Surface | 470 | 570 | 630 | 720 | 1020 | mm |
Clearance | 120 | 120 | 90 | 120 | 120 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Taper Type | HSKE40 / E50 / A63 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Speed Range | 30,000 | 20,000 | 20,000 | 20,000 | 20,000 | rpm |
Spindle Power | 9 | 20 | 35 | 45 | 45 | kW |
Rated Torque | 14 | 33 | 48 | 100 | 100 | Nm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Rapid Traverse (X/Y/Z) | 30 | 36 | 36 | 36 | 24 | m/min |
Ball Screw Spec | 3210/3210/3210 | 3212/4012/3212 | 4012/5012/4012 | 4012/5512/4012 | 4012/5512/4012 | — |
Linear Guideways | 35/35/35 | 35/45/35 | 35×2 / 45×4 / 35×2 | 45/45/45 | 45/55/45 | — |
Servo Motor Torque | 20/30/20 | 25/35/25 | 30/35/30 | 30/35/30 | 35/45/35 | N·m |
Feed Rate (X/Y/Z) | 15 | 15 | 15 | 15 | 15 | m/min |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Tool Holder Type | HSKE40 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Tool Selection Method | Bi-directional shortest path selection | Same | Same | Same | Same | — |
Tool Capacity | 20 / 18 | 32 | 32 / 48 | 32 / 48 | 32 / 48 | tools |
Max Tool Length | 100 | 300 | 300 | 300 | 300 | mm |
Max Tool Weight | 3 | 8 | 8 | 8 | 10 | kg |
Max Tool Diameter (full tool) | Ø50 | Ø70 | Ø70 | Ø70 | Ø70 | mm |
Max Tool Diameter (adjacent empty slot) | Ø65 | Ø120 | Ø120 | Ø120 | Ø125 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | mm |
A-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
C-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | mm |
A-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
C-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Machine Weight | 4,800 | 9,500 | 13,000 | 17,000 | 26,000 | kg |
Machine Dimensions (L×W×H, excl. chip conveyor) | 2200×2900×2300 | 2700×3500×2900 | 2960×4200×3350 | 3300×4600×3600 | 4500×5500×4000 | mm |
The G-500 adopts premium mechanical and electrical components to ensure long-term machining accuracy and operational reliability.
High-Speed Built-in Spindle
Precision A/C Rotary Table
High-Precision Ball Screws
Roller Linear Guideways
Automatic Tool Changer (ATC)
High-Performance Servo Motors
Intelligent CNC Controller
Automatic Lubrication System
Efficient Cooling System
High-Power HSK-A63 Built-in Spindle
Precision A/C Rotary Table
Heavy-Duty Ball Screw Drive System
Roller Linear Guideways
Automatic Tool Changer (ATC)
High-Performance Servo Motors
Advanced CNC Control System
Automatic Lubrication System
Intelligent Cooling System
The 1,400 × 1,400 × 900 mm working envelope allows efficient machining of oversized and complex components.
The 45 kW spindle, 100 Nm torque, and 2,000 kg table capacity provide outstanding performance for demanding cutting applications.
Precision rotary axes, high-quality ball screws, and rigid guideway systems ensure excellent positioning accuracy and repeatability.
Simultaneous 5-axis machining reduces multiple setups, shortens machining cycles, and improves production efficiency.
Designed for continuous heavy-duty operation, the G-1400 offers long-term stability, durability, and consistent machining quality.
Renishaw Workpiece Probe
Automatic Tool Setter
Through-Spindle Coolant (TSC)
Chip Conveyor
Oil Mist Collector
Automatic Door System
Rotary Scale Feedback
Tool Monitoring System
High-Speed Spindle Upgrade
Robotic Automation Interface
Aerospace Manufacturing
Energy Equipment
Automotive Manufacturing
Mold & Die Industry
Heavy Equipment
Precision Engineering
Industrial Machinery
Automation Equipment
