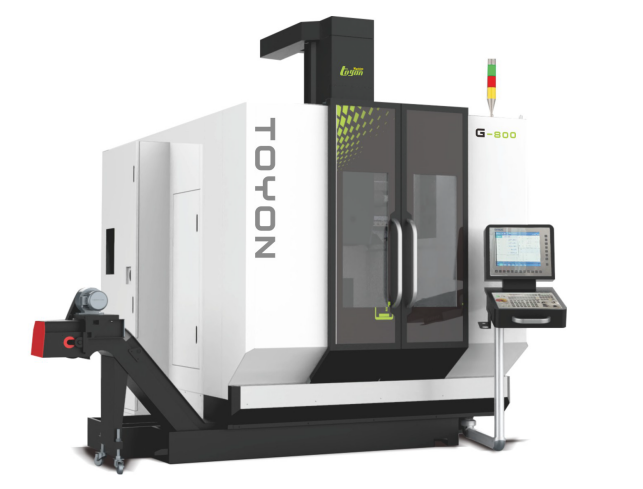

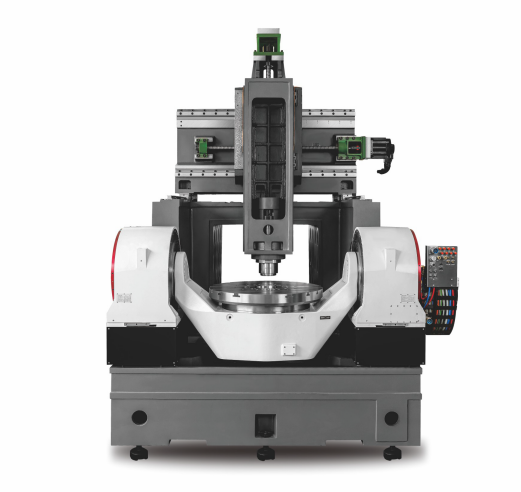

G-500
The G-500 5-Axis CNC Machining Center is engineered for high-speed, high-precision machining of complex workpieces. Equipped with simultaneous 5-axis machining technology, the machine enables multi-face and freeform surface machining in a single setup, significantly reducing setup time while improving dimensional accuracy and production efficiency.
Built with a high-rigidity machine structure, precision rotary table, high-speed spindle, and advanced CNC control system, the G-500 delivers exceptional machining stability, superior surface finish, and reliable long-term performance. It is an ideal solution for precision manufacturing industries requiring complex contour machining and high production efficiency.
The G-500 combines precision engineering with advanced multi-axis machining technology to meet the growing demand for complex component manufacturing. By integrating five-axis simultaneous interpolation, it minimizes manual repositioning, improves machining consistency, and increases overall productivity.
Whether producing prototypes or high-volume production parts, the G-500 provides the flexibility, precision, and reliability required by modern manufacturers.
Simultaneous 5-Axis CNC Machining
High-Speed High-Precision Spindle
One-Setup Multi-Surface Machining

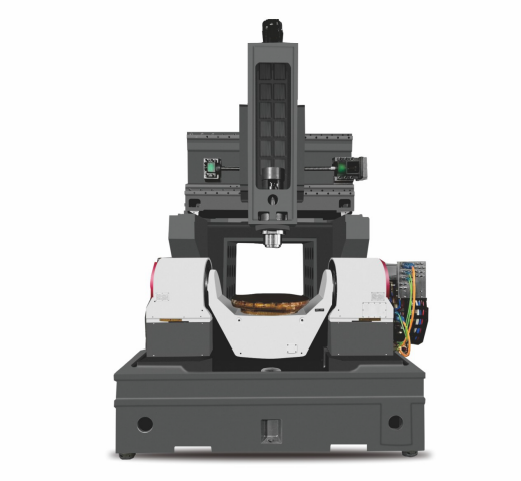

High-Rigidity Machine Structure
Precision A/C Rotary Table
High-Speed Ball Screw Drive System
High-Precision Linear Guideways
Intelligent CNC Control System
Automatic Tool Changer (ATC)
Excellent Thermal Stability
High Dynamic Response
Outstanding Positioning Accuracy
Stable Heavy-Duty Cutting Performance
Optimized Chip Removal System
Easy Maintenance Design
The G-500 is suitable for machining high-value precision components in a wide range of industries.
Aircraft structural components, turbine parts, impellers, engine housings, and precision aerospace components.
Orthopedic implants, surgical instruments, prosthetics, and precision medical equipment.
Injection molds, die-casting molds, stamping dies, graphite electrodes, and complex mold cavities.
Transmission housings, engine components, suspension parts, lightweight aluminum components, and EV components.
Precision mechanical parts, automation equipment, robotics components, semiconductor equipment, and energy industry parts.

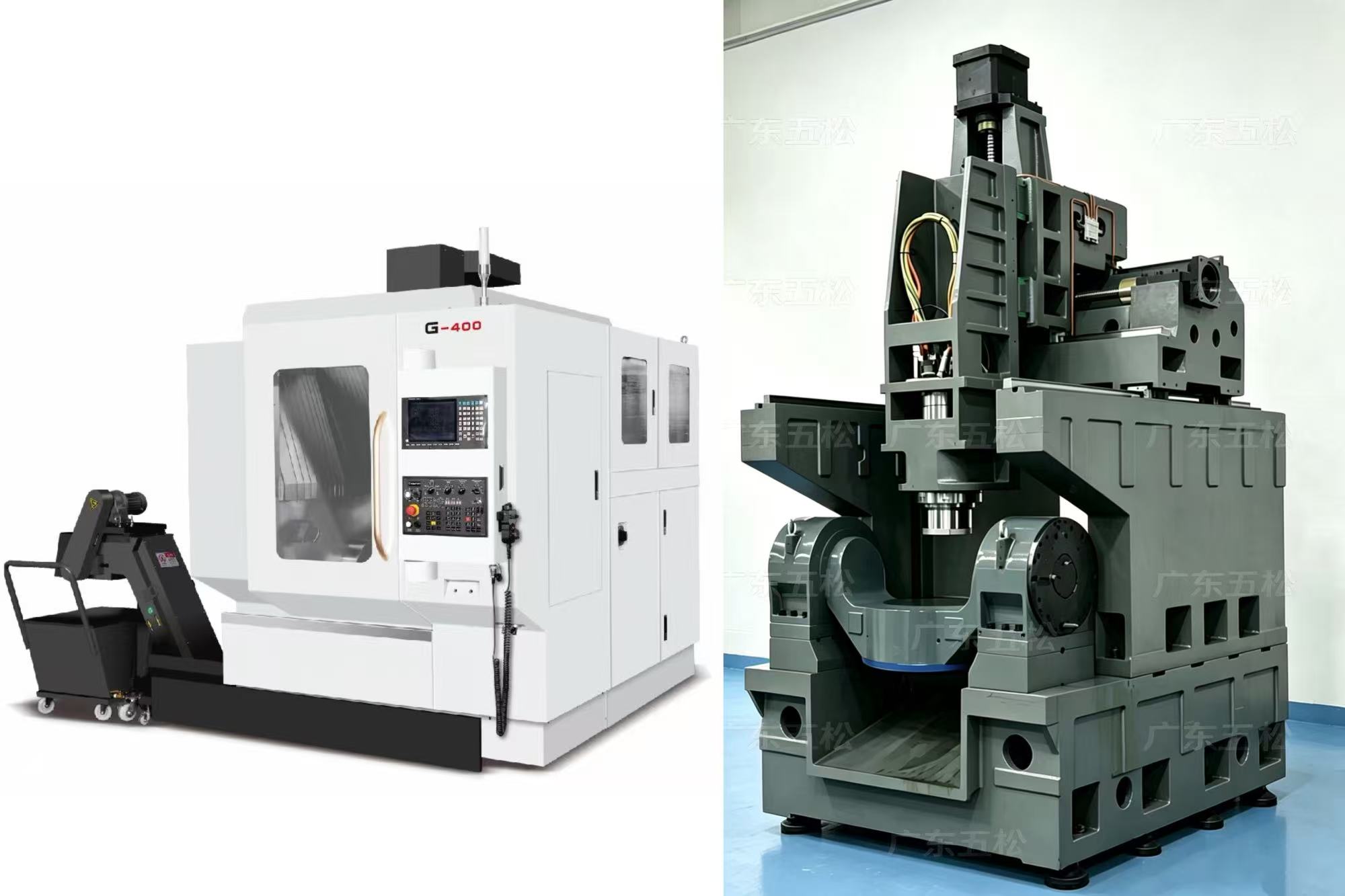

Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Table Size | 320 | 400 | 500 | 630 | 1200 | mm |
A-Axis Tilting Angle | ±110 | ±110 | ±110 | ±110 | ±110 | ° |
C-Axis Rotation Angle | 360 | 360 | 360 | 360 | 360 | ° |
A-Axis Rotation Speed | 100 | 100 | 80 | 80 | 50 | rpm |
C-Axis Rotation Speed | 200 | 200 | 120 | 120 | 100 | rpm |
Max Table Load | 100 | 250 | 450 | 850 | 2000 | kg |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X-Axis Travel | 400 | 500 | 600 | 800 | 1400 | mm |
Y-Axis Travel | 600 | 650 | 800 | 900 | 1400 | mm |
Z-Axis Travel | 350 | 450 | 480 | 600 | 900 | mm |
90° Y Front Travel | 350 | 400 | 450 | 550 | 750 | mm |
Spindle Nose to Table Surface | 470 | 570 | 630 | 720 | 1020 | mm |
Clearance | 120 | 120 | 90 | 120 | 120 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Taper Type | HSKE40 / E50 / A63 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Speed Range | 30,000 | 20,000 | 20,000 | 20,000 | 20,000 | rpm |
Spindle Power | 9 | 20 | 35 | 45 | 45 | kW |
Rated Torque | 14 | 33 | 48 | 100 | 100 | Nm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Rapid Traverse (X/Y/Z) | 30 | 36 | 36 | 36 | 24 | m/min |
Ball Screw Spec | 3210/3210/3210 | 3212/4012/3212 | 4012/5012/4012 | 4012/5512/4012 | 4012/5512/4012 | — |
Linear Guideways | 35/35/35 | 35/45/35 | 35×2 / 45×4 / 35×2 | 45/45/45 | 45/55/45 | — |
Servo Motor Torque | 20/30/20 | 25/35/25 | 30/35/30 | 30/35/30 | 35/45/35 | N·m |
Feed Rate (X/Y/Z) | 15 | 15 | 15 | 15 | 15 | m/min |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Tool Holder Type | HSKE40 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Tool Selection Method | Bi-directional shortest path selection | Same | Same | Same | Same | — |
Tool Capacity | 20 / 18 | 32 | 32 / 48 | 32 / 48 | 32 / 48 | tools |
Max Tool Length | 100 | 300 | 300 | 300 | 300 | mm |
Max Tool Weight | 3 | 8 | 8 | 8 | 10 | kg |
Max Tool Diameter (full tool) | Ø50 | Ø70 | Ø70 | Ø70 | Ø70 | mm |
Max Tool Diameter (adjacent empty slot) | Ø65 | Ø120 | Ø120 | Ø120 | Ø125 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | mm |
A-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
C-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | mm |
A-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
C-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Machine Weight | 4,800 | 9,500 | 13,000 | 17,000 | 26,000 | kg |
Machine Dimensions (L×W×H, excl. chip conveyor) | 2200×2900×2300 | 2700×3500×2900 | 2960×4200×3350 | 3300×4600×3600 | 4500×5500×4000 | mm |

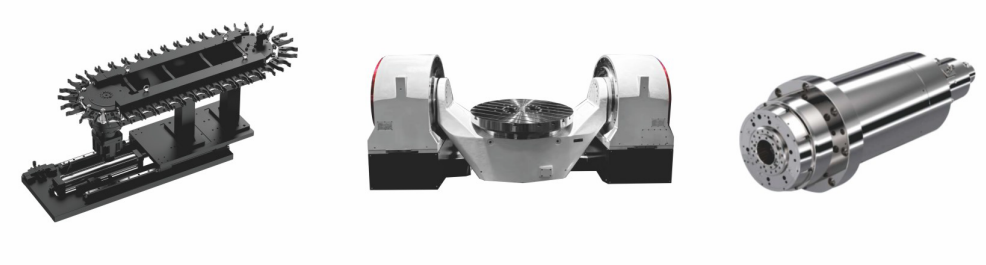

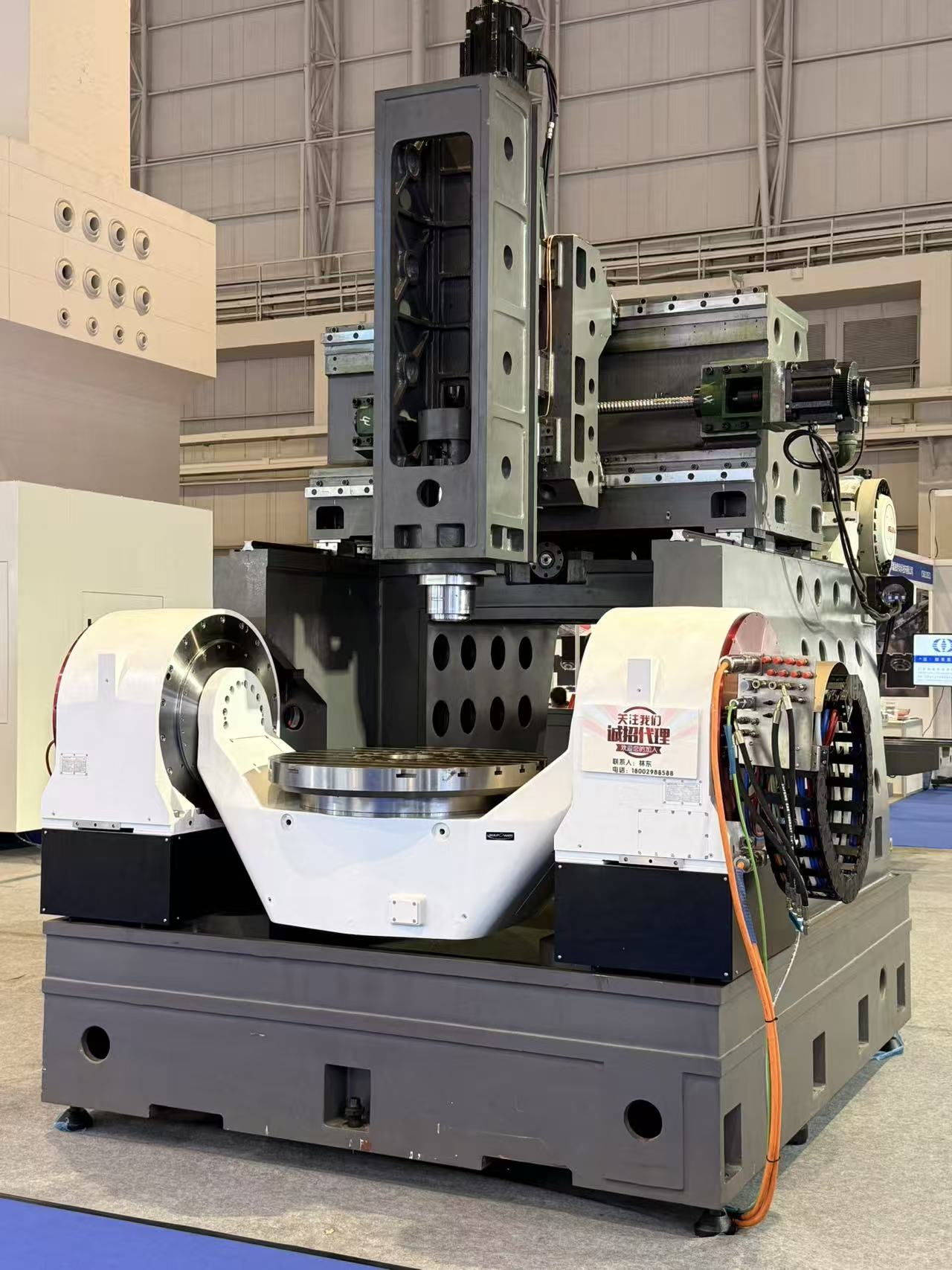

The G-500 adopts premium mechanical and electrical components to ensure long-term machining accuracy and operational reliability.
High-Speed Built-in Spindle
Precision A/C Rotary Table
High-Precision Ball Screws
Roller Linear Guideways
Automatic Tool Changer (ATC)
High-Performance Servo Motors
Intelligent CNC Controller
Automatic Lubrication System
Efficient Cooling System
Five-axis simultaneous interpolation delivers superior machining accuracy for complex geometries and tight tolerances.
Reduce setup time by machining multiple surfaces in a single operation, improving overall production efficiency.
Smooth multi-axis toolpaths minimize vibration and improve surface quality.
The optimized machine structure provides excellent stability during heavy-duty cutting.
Suitable for prototype development, small-batch production, and high-volume manufacturing.
Renishaw Workpiece Probe
Tool Setting Probe
Chip Conveyor
Oil Mist Collector
Through-Spindle Coolant
Automatic Door
High-Speed Spindle Options
Rotary Scale Feedback System
Automatic Tool Measurement System
The G-500 is widely used in aerospace, automotive, medical devices, mold & die manufacturing, precision engineering, robotics, and industrial equipment production.
It is suitable for aluminum, steel, stainless steel, titanium alloys, copper, graphite, engineering plastics, and various non-ferrous metals.
Yes. The G-500 supports continuous simultaneous 5-axis machining, making it ideal for complex freeform surfaces and multi-face components.
Yes. Various spindle configurations, CNC control systems, automation interfaces, probing systems, and optional accessories are available to meet different production requirements.
