G-500 5-Axis CNC Machining Center | High Precision CNC Milling Machine for Metal Parts

5-Axis CNC Machining Center
High-Performance 5-Axis CNC Machining Center for Complex Precision Manufacturing

A 5-Axis CNC Machining Center is an advanced manufacturing solution designed for the high-precision machining of complex geometries in a single setup. By simultaneously controlling the X, Y, Z linear axes together with the A and C rotary axes, it enables efficient multi-surface machining, reduces repositioning errors, and significantly improves machining accuracy and productivity.

Availability:

Quantity:



Inquire Add to Basket

Model:
G-500

Product Description

Product Introduction

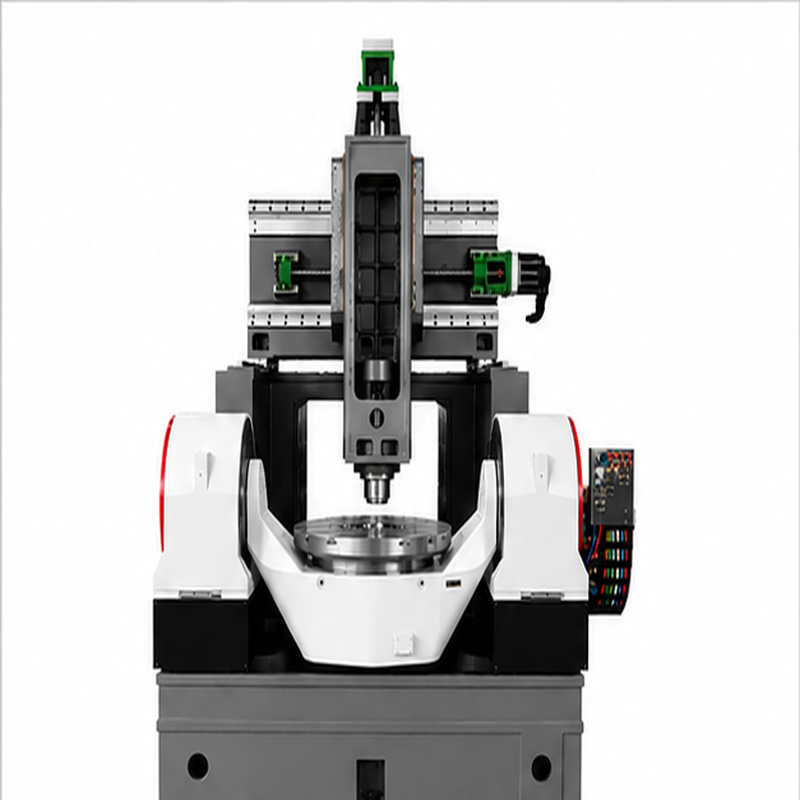

This CNC machining center is engineered for precision manufacturing where machining stability, accuracy, and flexibility are essential. The machine combines a robust mechanical structure with a precision motion system to provide reliable performance during continuous industrial operation.

The spacious machining area and rotary worktable provide greater flexibility for positioning different types of workpieces. The vertical spindle design allows efficient material removal while maintaining smooth and controlled cutting performance.

With its integrated mechanical and electrical systems, the machine can handle a wide range of machining processes and is suitable for both prototype production and batch manufacturing.

The equipment can be configured according to different workpiece sizes, materials, machining processes, spindle requirements, and automation needs, making it a flexible solution for modern metalworking applications.

Main Advantages

Stable structure for heavy-duty machining
Precise positioning and repeatable movement
Flexible rotary workpiece positioning
Efficient machining of complex components
Suitable for continuous industrial production
Flexible configuration according to customer requirements
Compatible with different tooling and machining processes

Worktable

Item	G-400	G-500	G-630	G-800	G-1400	Unit
Table Size	320	400	500	630	1200	mm
A-Axis Tilting Angle	±110	±110	±110	±110	±110	°
C-Axis Rotation Angle	360	360	360	360	360	°
A-Axis Rotation Speed	100	100	80	80	50	rpm
C-Axis Rotation Speed	200	200	120	120	100	rpm
Max Table Load	100	250	450	850	2000	kg

Travel

Item	G-400	G-500	G-630	G-800	G-1400	Unit
X-Axis Travel	400	500	600	800	1400	mm
Y-Axis Travel	600	650	800	900	1400	mm
Z-Axis Travel	350	450	480	600	900	mm
90° Y Front Travel	350	400	450	550	750	mm
Spindle Nose to Table Surface	470	570	630	720	1020	mm
Clearance	120	120	90	120	120	mm

Spindle

Item	G-400	G-500	G-630	G-800	G-1400	Unit
Taper Type	HSKE40 / E50 / A63	HSK A63	HSK A63	HSK A63	HSK A63	—
Speed Range	30,000	20,000	20,000	20,000	20,000	rpm
Spindle Power	9	20	35	45	45	kW
Rated Torque	14	33	48	100	100	Nm

Feed System

Item	G-400	G-500	G-630	G-800	G-1400	Unit
Rapid Traverse (X/Y/Z)	30	36	36	36	24	m/min
Ball Screw Spec	3210/3210/3210	3212/4012/3212	4012/5012/4012	4012/5512/4012	4012/5512/4012	—
Linear Guideways	35/35/35	35/45/35	35×2 / 45×4 / 35×2	45/45/45	45/55/45	—
Servo Motor Torque	20/30/20	25/35/25	30/35/30	30/35/30	35/45/35	N·m
Feed Rate (X/Y/Z)	15	15	15	15	15	m/min

Tool Magazine

Item	G-400	G-500	G-630	G-800	G-1400	Unit
Tool Holder Type	HSKE40	HSK A63	HSK A63	HSK A63	HSK A63	—
Tool Selection Method	Bi-directional shortest path selection	Same	Same	Same	Same	—
Tool Capacity	20 / 18	32	32 / 48	32 / 48	32 / 48	tools
Max Tool Length	100	300	300	300	300	mm
Max Tool Weight	3	8	8	8	10	kg
Max Tool Diameter (full tool)	Ø50	Ø70	Ø70	Ø70	Ø70	mm
Max Tool Diameter (adjacent empty slot)	Ø65	Ø120	Ø120	Ø120	Ø125	mm

Positioning Accuracy

Item	G-400	G-500	G-630	G-800	G-1400	Unit
X/Y/Z (300mm)	0.005	0.005	0.005	0.005	0.005	mm
A-Axis	±5	±5	±5	±5	±5	arc-sec
C-Axis	±5	±5	±5	±5	±5	arc-sec

Repeat Positioning Accuracy

Item	G-400	G-500	G-630	G-800	G-1400	Unit
X/Y/Z (300mm)	0.003	0.003	0.003	0.003	0.003	mm
A-Axis	<4	<4	<4	<4	<4	arc-sec
C-Axis	<4	<4	<4	<4	<4	arc-sec

Machine Data

Item	G-400	G-500	G-630	G-800	G-1400	Unit
Machine Weight	4,800	9,500	13,000	17,000	26,000	kg
Machine Dimensions (L×W×H, excl. chip conveyor)	2200×2900×2300	2700×3500×2900	2960×4200×3350	3300×4600×3600	4500×5500×4000	mm

Core Components

The G-500 adopts premium mechanical and electrical components to ensure long-term machining accuracy and operational reliability.

High-Speed Built-in Spindle
Precision A/C Rotary Table
High-Precision Ball Screws
Roller Linear Guideways
Automatic Tool Changer (ATC)
High-Performance Servo Motors
Intelligent CNC Controller
Automatic Lubrication System
Efficient Cooling System

Typical Applications

This CNC machining equipment can be used for automotive components, industrial machinery parts, aluminum components, stainless steel parts, molds, mechanical housings, precision brackets, flanges, and other metal components.

It is particularly suitable for manufacturers looking for a flexible CNC machining solution with high stability, repeatable accuracy, and efficient production performance.
