G-500

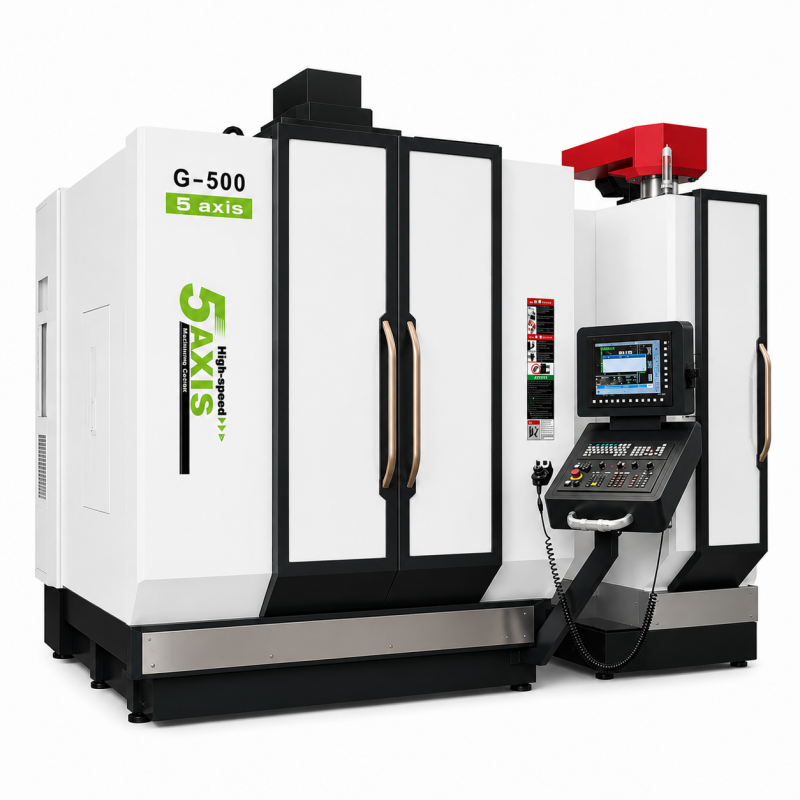

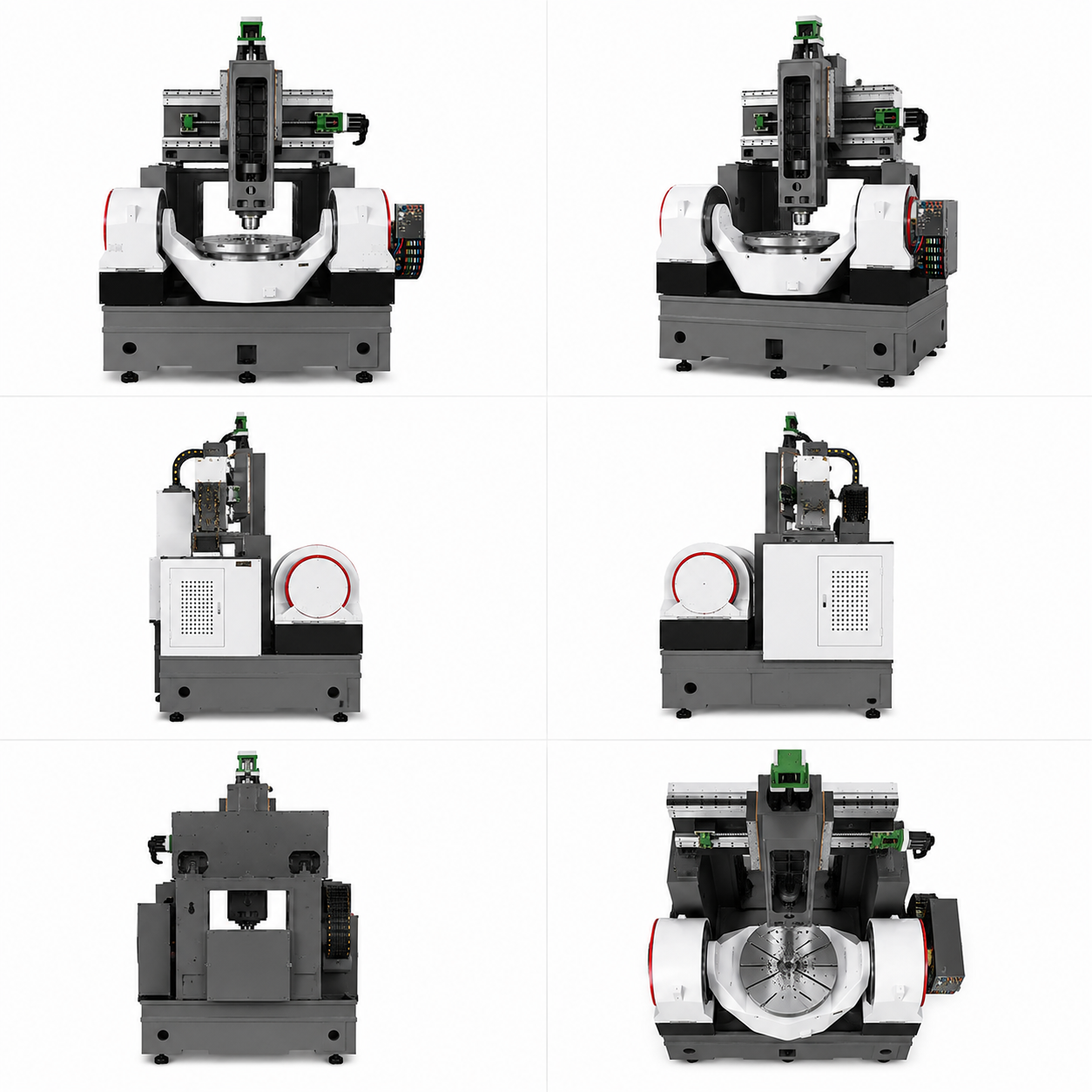

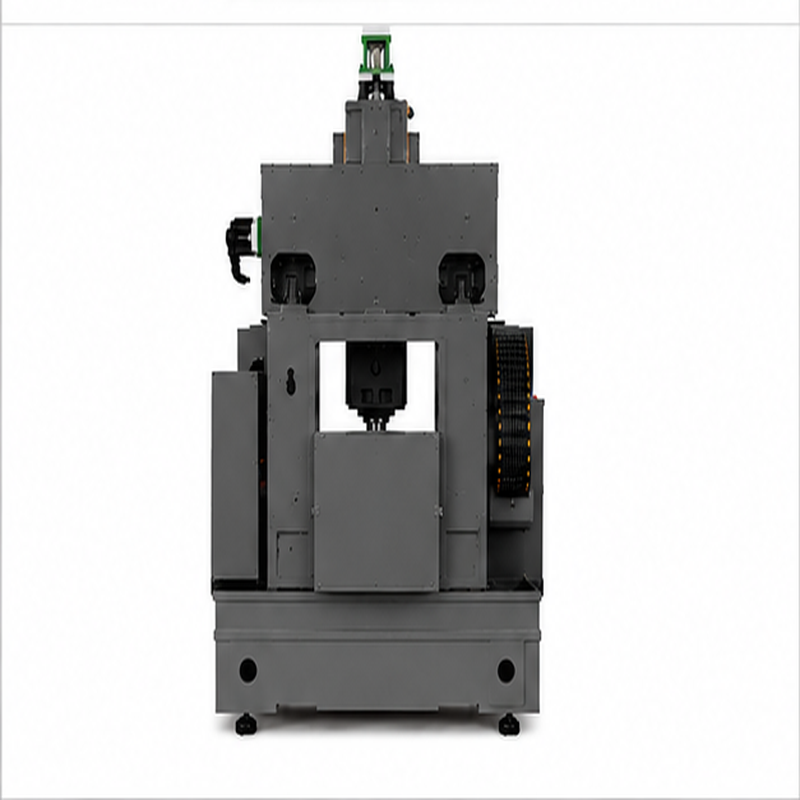

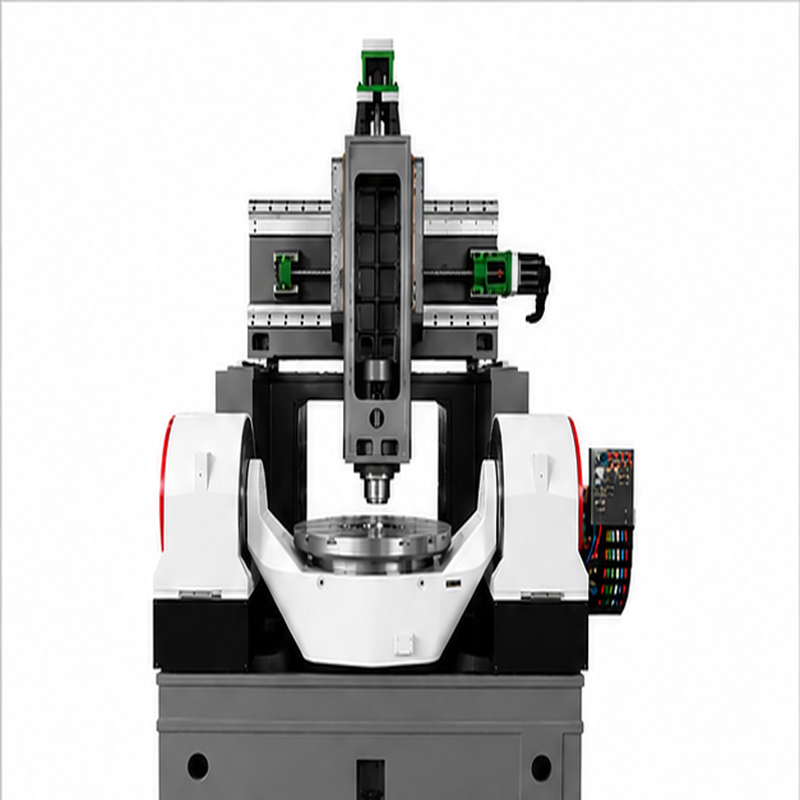

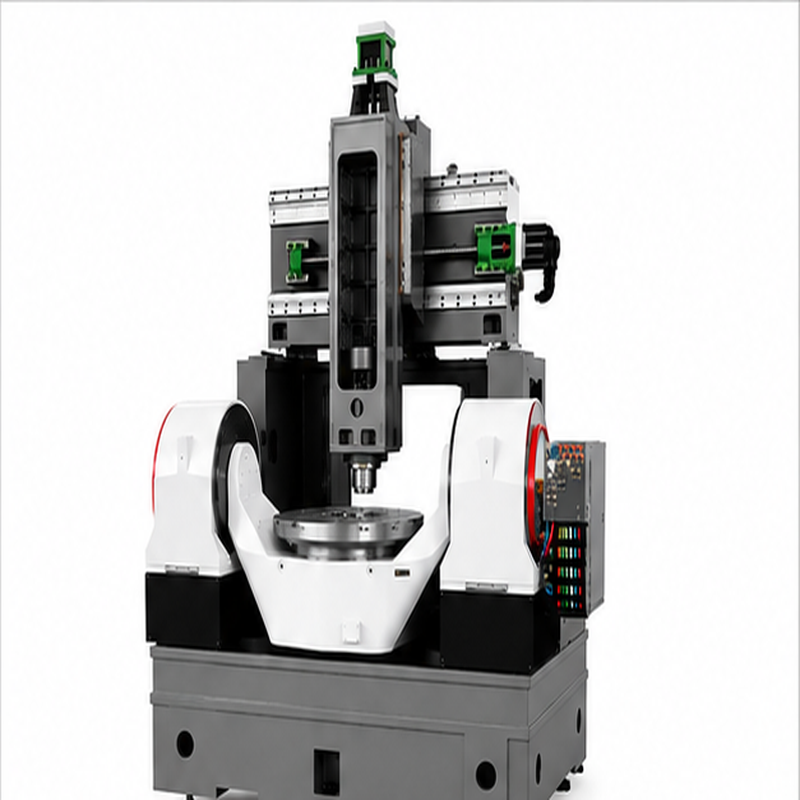

The G-500 5-Axis CNC Machining Center is designed for high-precision and efficient machining of complex metal components. With simultaneous multi-axis machining capability, the machine can complete multiple machining operations in a single setup, helping reduce repositioning time and improve machining accuracy.
The 5-axis machining system provides flexible access to complex surfaces and difficult-to-reach areas, making it suitable for machining molds, automotive components, aerospace parts, precision mechanical components, aluminum parts, steel parts and other complex workpieces.
The G-500 features a rigid machine structure, high-speed CNC control, automatic tool changing and flexible machining capabilities. It is suitable for both prototype production and continuous batch manufacturing.
5-axis simultaneous CNC machining
High precision and excellent machining stability
Multi-surface machining in a single setup
Reduced workpiece repositioning and setup time
Automatic tool changing system
Rigid machine structure for heavy-duty machining
Suitable for complex 3D surfaces and precision components
Ideal for aluminum, stainless steel, steel, copper and other metal materials
Suitable for mold, automotive, aerospace and general machinery industries
The G-500 can be used for machining complex mechanical parts, molds, automotive components, aerospace components, aluminum alloy parts, precision fixtures, shafts, housings and other customized metal components.
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Table Size | 320 | 400 | 500 | 630 | 1200 | mm |
A-Axis Tilting Angle | ±110 | ±110 | ±110 | ±110 | ±110 | ° |
C-Axis Rotation Angle | 360 | 360 | 360 | 360 | 360 | ° |
A-Axis Rotation Speed | 100 | 100 | 80 | 80 | 50 | rpm |
C-Axis Rotation Speed | 200 | 200 | 120 | 120 | 100 | rpm |
Max Table Load | 100 | 250 | 450 | 850 | 2000 | kg |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X-Axis Travel | 400 | 500 | 600 | 800 | 1400 | mm |
Y-Axis Travel | 600 | 650 | 800 | 900 | 1400 | mm |
Z-Axis Travel | 350 | 450 | 480 | 600 | 900 | mm |
90° Y Front Travel | 350 | 400 | 450 | 550 | 750 | mm |
Spindle Nose to Table Surface | 470 | 570 | 630 | 720 | 1020 | mm |
Clearance | 120 | 120 | 90 | 120 | 120 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Taper Type | HSKE40 / E50 / A63 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Speed Range | 30,000 | 20,000 | 20,000 | 20,000 | 20,000 | rpm |
Spindle Power | 9 | 20 | 35 | 45 | 45 | kW |
Rated Torque | 14 | 33 | 48 | 100 | 100 | Nm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Rapid Traverse (X/Y/Z) | 30 | 36 | 36 | 36 | 24 | m/min |
Ball Screw Spec | 3210/3210/3210 | 3212/4012/3212 | 4012/5012/4012 | 4012/5512/4012 | 4012/5512/4012 | — |
Linear Guideways | 35/35/35 | 35/45/35 | 35×2 / 45×4 / 35×2 | 45/45/45 | 45/55/45 | — |
Servo Motor Torque | 20/30/20 | 25/35/25 | 30/35/30 | 30/35/30 | 35/45/35 | N·m |
Feed Rate (X/Y/Z) | 15 | 15 | 15 | 15 | 15 | m/min |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Tool Holder Type | HSKE40 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Tool Selection Method | Bi-directional shortest path selection | Same | Same | Same | Same | — |
Tool Capacity | 20 / 18 | 32 | 32 / 48 | 32 / 48 | 32 / 48 | tools |
Max Tool Length | 100 | 300 | 300 | 300 | 300 | mm |
Max Tool Weight | 3 | 8 | 8 | 8 | 10 | kg |
Max Tool Diameter (full tool) | Ø50 | Ø70 | Ø70 | Ø70 | Ø70 | mm |
Max Tool Diameter (adjacent empty slot) | Ø65 | Ø120 | Ø120 | Ø120 | Ø125 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | mm |
A-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
C-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | mm |
A-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
C-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Machine Weight | 4,800 | 9,500 | 13,000 | 17,000 | 26,000 | kg |
Machine Dimensions (L×W×H, excl. chip conveyor) | 2200×2900×2300 | 2700×3500×2900 | 2960×4200×3350 | 3300×4600×3600 | 4500×5500×4000 | mm |
The G-500 adopts premium mechanical and electrical components to ensure long-term machining accuracy and operational reliability.
High-Speed Built-in Spindle

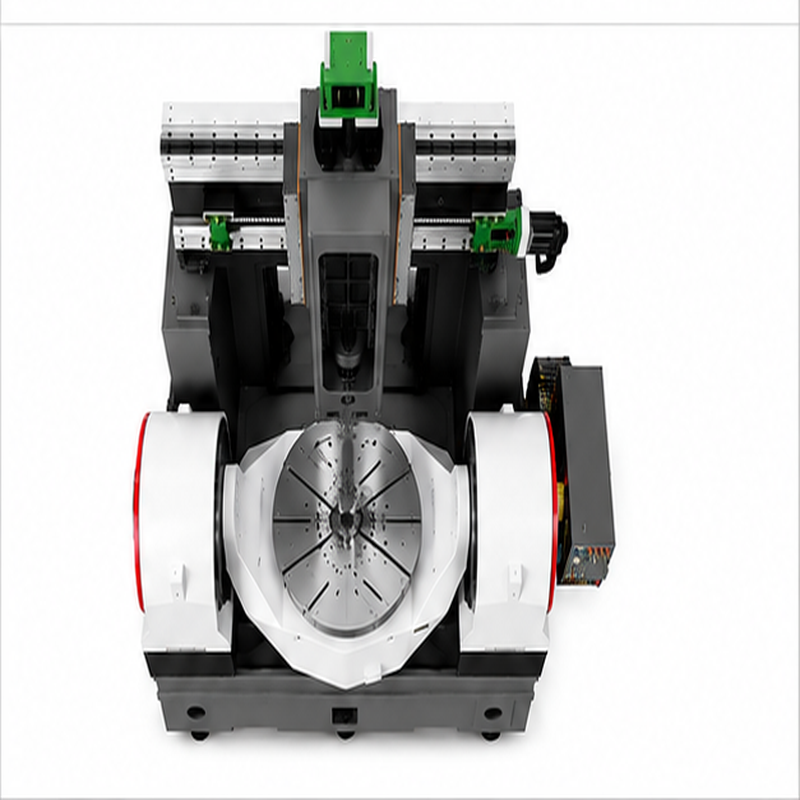

Precision A/C Rotary Table
High-Precision Ball Screws
Roller Linear Guideways
Automatic Tool Changer (ATC)
High-Performance Servo Motors
Intelligent CNC Controller
Automatic Lubrication System
Efficient Cooling System
This CNC machining equipment can be used for automotive components, industrial machinery parts, aluminum components, stainless steel parts, molds, mechanical housings, precision brackets, flanges, and other metal components.
It is particularly suitable for manufacturers looking for a flexible CNC machining solution with high stability, repeatable accuracy, and efficient production performance.
