G-630

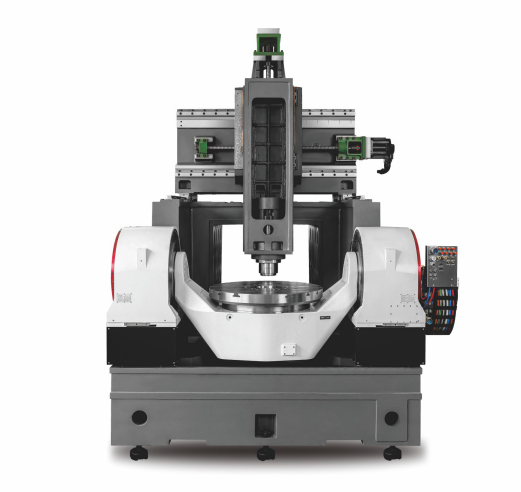

The G-630 5-Axis CNC Machining Center is designed for simultaneous 5-axis machining of medium and large complex workpieces requiring exceptional accuracy, rigidity, and productivity. By integrating the X, Y, Z linear axes with the A and C rotary axes, the machine performs multi-face and complex contour machining in a single setup, minimizing repositioning errors while maximizing machining efficiency.
Built with a rigid machine structure, high-torque spindle, precision rotary table, and advanced CNC control system, the G-630 delivers outstanding cutting stability, dynamic performance, and long-term reliability. It is the ideal machining solution for aerospace, automotive, mold & die, medical, energy, and precision engineering applications.
The G-630 combines high rigidity, powerful cutting capability, and high-speed precision machining to meet the demanding requirements of modern manufacturing. Designed for machining larger and heavier workpieces than compact models, it offers exceptional stability during heavy-duty cutting while maintaining excellent positioning accuracy and surface finish.
Simultaneous 5-Axis CNC Machining
High-Torque HSK-A63 Spindle
High-Rigidity Machine Structure
Precision A/C Rotary Table
One-Setup Complete Machining
High-Speed Linear Motion System
Precision Ball Screw Drive
Roller Linear Guideways
Intelligent CNC Control System
Automatic Tool Changer (ATC)
Excellent Thermal Stability
High Dynamic Response
Superior Positioning Accuracy
Optimized Chip Removal Design
Easy Maintenance
The G-630 is widely used in precision manufacturing industries including:
Aircraft structural parts, impellers, turbine components, compressor housings, aerospace brackets, and precision aluminum or titanium parts.
Injection molds, die-casting molds, stamping dies, graphite electrodes, and complex cavity machining.
Engine components, transmission housings, EV battery components, suspension systems, and lightweight structural parts.
Orthopedic implants, surgical devices, medical instruments, and precision medical components.
Automation equipment, robotics, energy equipment, semiconductor components, and precision mechanical parts.
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Table Size | 320 | 400 | 500 | 630 | 1200 | mm |
A-Axis Tilting Angle | ±110 | ±110 | ±110 | ±110 | ±110 | ° |
C-Axis Rotation Angle | 360 | 360 | 360 | 360 | 360 | ° |
A-Axis Rotation Speed | 100 | 100 | 80 | 80 | 50 | rpm |
C-Axis Rotation Speed | 200 | 200 | 120 | 120 | 100 | rpm |
Max Table Load | 100 | 250 | 450 | 850 | 2000 | kg |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X-Axis Travel | 400 | 500 | 600 | 800 | 1400 | mm |
Y-Axis Travel | 600 | 650 | 800 | 900 | 1400 | mm |
Z-Axis Travel | 350 | 450 | 480 | 600 | 900 | mm |
90° Y Front Travel | 350 | 400 | 450 | 550 | 750 | mm |
Spindle Nose to Table Surface | 470 | 570 | 630 | 720 | 1020 | mm |
Clearance | 120 | 120 | 90 | 120 | 120 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Taper Type | HSKE40 / E50 / A63 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Speed Range | 30,000 | 20,000 | 20,000 | 20,000 | 20,000 | rpm |
Spindle Power | 9 | 20 | 35 | 45 | 45 | kW |
Rated Torque | 14 | 33 | 48 | 100 | 100 | Nm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Rapid Traverse (X/Y/Z) | 30 | 36 | 36 | 36 | 24 | m/min |
Ball Screw Spec | 3210/3210/3210 | 3212/4012/3212 | 4012/5012/4012 | 4012/5512/4012 | 4012/5512/4012 | — |
Linear Guideways | 35/35/35 | 35/45/35 | 35×2 / 45×4 / 35×2 | 45/45/45 | 45/55/45 | — |
Servo Motor Torque | 20/30/20 | 25/35/25 | 30/35/30 | 30/35/30 | 35/45/35 | N·m |
Feed Rate (X/Y/Z) | 15 | 15 | 15 | 15 | 15 | m/min |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Tool Holder Type | HSKE40 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Tool Selection Method | Bi-directional shortest path selection | Same | Same | Same | Same | — |
Tool Capacity | 20 / 18 | 32 | 32 / 48 | 32 / 48 | 32 / 48 | tools |
Max Tool Length | 100 | 300 | 300 | 300 | 300 | mm |
Max Tool Weight | 3 | 8 | 8 | 8 | 10 | kg |
Max Tool Diameter (full tool) | Ø50 | Ø70 | Ø70 | Ø70 | Ø70 | mm |
Max Tool Diameter (adjacent empty slot) | Ø65 | Ø120 | Ø120 | Ø120 | Ø125 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | mm |
A-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
C-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | mm |
A-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
C-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Machine Weight | 4,800 | 9,500 | 13,000 | 17,000 | 26,000 | kg |
Machine Dimensions (L×W×H, excl. chip conveyor) | 2200×2900×2300 | 2700×3500×2900 | 2960×4200×3350 | 3300×4600×3600 | 4500×5500×4000 | mm |
The G-500 adopts premium mechanical and electrical components to ensure long-term machining accuracy and operational reliability.
High-Speed Built-in Spindle
Precision A/C Rotary Table
High-Precision Ball Screws
Roller Linear Guideways
Automatic Tool Changer (ATC)
High-Performance Servo Motors
Intelligent CNC Controller
Automatic Lubrication System
Efficient Cooling System
The G-630 is equipped with high-quality components to ensure maximum machining accuracy and long-term reliability.
High-Speed HSK-A63 Built-in Spindle
Precision A/C Rotary Table
High-Precision Ball Screw Transmission
Roller Linear Guideways
Automatic Tool Changer (ATC)
High-Performance Servo Motors
Intelligent CNC Control System
Automatic Lubrication System
High-Efficiency Cooling System
Perform complex multi-surface machining in one setup, reducing fixture changes and improving machining accuracy.
The 35 kW spindle and 48 Nm torque provide excellent cutting capability for aluminum, steel, stainless steel, titanium alloys, and other engineering materials.
The optimized structural design ensures excellent stability during high-speed and heavy-duty machining.
High-precision ball screws, roller guideways, and a precision rotary table deliver exceptional positioning accuracy and repeatability.
Reduced setup time, faster machining cycles, and increased production efficiency make the G-630 ideal for both prototype and mass production.
Renishaw Workpiece Probe
Tool Measurement System
Through-Spindle Coolant (TSC)
Chip Conveyor
Oil Mist Collector
Automatic Door
Rotary Scale Feedback
Automatic Tool Monitoring
High-Speed Spindle Upgrade
Automation Interface for Robotic Loading
The G-630 is ideal for aerospace, automotive, mold & die, medical devices, industrial equipment, robotics, and precision engineering.
It is suitable for aluminum, carbon steel, stainless steel, titanium alloys, copper, graphite, engineering plastics, and other non-ferrous materials.
Yes. The machine supports continuous simultaneous 5-axis interpolation for complex surfaces and precision multi-face machining.
Yes. Different spindle configurations, CNC control systems, probing systems, coolant options, and automation solutions can be configured according to production requirements.
