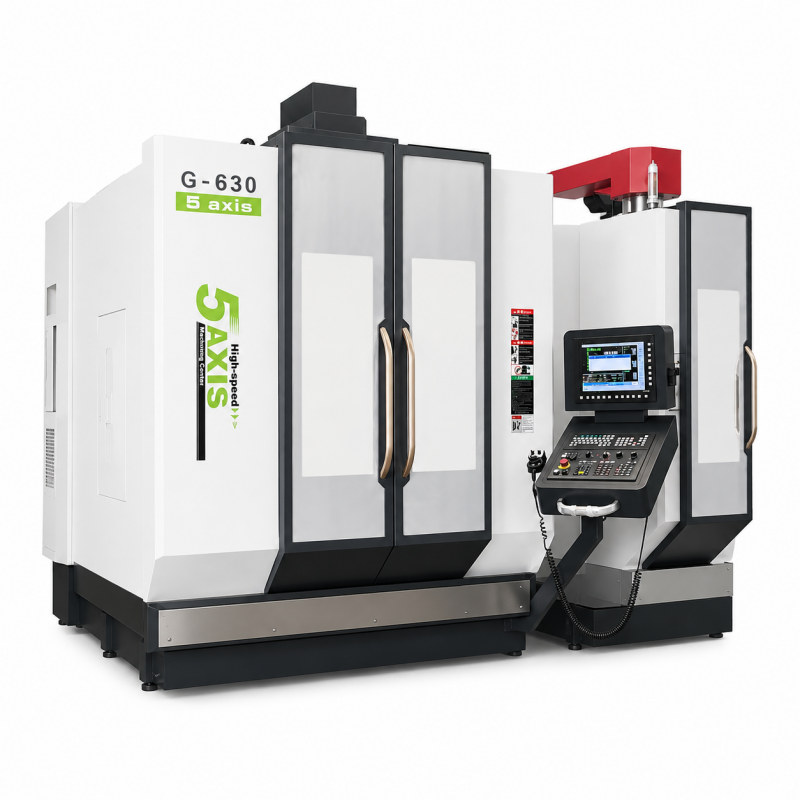

G-630
The G-630 5-Axis CNC Machining Center is a high-performance machining solution designed for precision machining of complex metal components, curved surfaces and multi-sided workpieces.
Equipped with a 630 mm-class 5-axis rotary table, the machine combines X, Y and Z linear axes with A and C rotary axes to provide flexible 5-axis machining capabilities. Complex workpieces can be machined from multiple directions in a single setup, reducing repositioning operations and improving machining efficiency and accuracy.
The G-630 features a rigid machine structure, high-precision transmission system and advanced CNC control. It is suitable for continuous machining of aluminum, steel, stainless steel, copper, titanium and other metal materials.
The machine is widely used for aerospace components, automotive parts, precision molds, impellers, blades, pump bodies, valve bodies, mechanical components and other complex precision parts.
5-axis simultaneous CNC machining
630 mm-class rotary table
High-rigidity machine structure
High-precision machining performance
Multi-surface machining in a single setup
Reduced workpiece repositioning
Suitable for complex 3D surfaces
Automatic tool changing system
Advanced CNC control system
Suitable for prototype and batch production
The G-630 is suitable for machining complex components used in:
Aerospace
Automotive
Mold manufacturing
Precision machinery
Energy equipment
Industrial automation
Medical equipment
Engineering machinery
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Table Size | 320 | 400 | 500 | 630 | 1200 | mm |
A-Axis Tilting Angle | ±110 | ±110 | ±110 | ±110 | ±110 | ° |
C-Axis Rotation Angle | 360 | 360 | 360 | 360 | 360 | ° |
A-Axis Rotation Speed | 100 | 100 | 80 | 80 | 50 | rpm |
C-Axis Rotation Speed | 200 | 200 | 120 | 120 | 100 | rpm |
Max Table Load | 100 | 250 | 450 | 850 | 2000 | kg |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X-Axis Travel | 400 | 500 | 600 | 800 | 1400 | mm |
Y-Axis Travel | 600 | 650 | 800 | 900 | 1400 | mm |
Z-Axis Travel | 350 | 450 | 480 | 600 | 900 | mm |
90° Y Front Travel | 350 | 400 | 450 | 550 | 750 | mm |
Spindle Nose to Table Surface | 470 | 570 | 630 | 720 | 1020 | mm |
Clearance | 120 | 120 | 90 | 120 | 120 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Taper Type | HSKE40 / E50 / A63 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Speed Range | 30,000 | 20,000 | 20,000 | 20,000 | 20,000 | rpm |
Spindle Power | 9 | 20 | 35 | 45 | 45 | kW |
Rated Torque | 14 | 33 | 48 | 100 | 100 | Nm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Rapid Traverse (X/Y/Z) | 30 | 36 | 36 | 36 | 24 | m/min |
Ball Screw Spec | 3210/3210/3210 | 3212/4012/3212 | 4012/5012/4012 | 4012/5512/4012 | 4012/5512/4012 | — |
Linear Guideways | 35/35/35 | 35/45/35 | 35×2 / 45×4 / 35×2 | 45/45/45 | 45/55/45 | — |
Servo Motor Torque | 20/30/20 | 25/35/25 | 30/35/30 | 30/35/30 | 35/45/35 | N·m |
Feed Rate (X/Y/Z) | 15 | 15 | 15 | 15 | 15 | m/min |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Tool Holder Type | HSKE40 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Tool Selection Method | Bi-directional shortest path selection | Same | Same | Same | Same | — |
Tool Capacity | 20 / 18 | 32 | 32 / 48 | 32 / 48 | 32 / 48 | tools |
Max Tool Length | 100 | 300 | 300 | 300 | 300 | mm |
Max Tool Weight | 3 | 8 | 8 | 8 | 10 | kg |
Max Tool Diameter (full tool) | Ø50 | Ø70 | Ø70 | Ø70 | Ø70 | mm |
Max Tool Diameter (adjacent empty slot) | Ø65 | Ø120 | Ø120 | Ø120 | Ø125 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | mm |
A-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
C-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | mm |
A-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
C-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Machine Weight | 4,800 | 9,500 | 13,000 | 17,000 | 26,000 | kg |
Machine Dimensions (L×W×H, excl. chip conveyor) | 2200×2900×2300 | 2700×3500×2900 | 2960×4200×3350 | 3300×4600×3600 | 4500×5500×4000 | mm |
The G-500 adopts premium mechanical and electrical components to ensure long-term machining accuracy and operational reliability.
High-Speed Built-in Spindle
Precision A/C Rotary Table
High-Precision Ball Screws
Roller Linear Guideways
Automatic Tool Changer (ATC)
High-Performance Servo Motors
Intelligent CNC Controller
Automatic Lubrication System
Efficient Cooling System
The G-630 is equipped with high-quality components to ensure maximum machining accuracy and long-term reliability.
High-Speed HSK-A63 Built-in Spindle
Precision A/C Rotary Table
High-Precision Ball Screw Transmission
Roller Linear Guideways
Automatic Tool Changer (ATC)
High-Performance Servo Motors
Intelligent CNC Control System
Automatic Lubrication System
High-Efficiency Cooling System
Perform complex multi-surface machining in one setup, reducing fixture changes and improving machining accuracy.
The 35 kW spindle and 48 Nm torque provide excellent cutting capability for aluminum, steel, stainless steel, titanium alloys, and other engineering materials.
The optimized structural design ensures excellent stability during high-speed and heavy-duty machining.
High-precision ball screws, roller guideways, and a precision rotary table deliver exceptional positioning accuracy and repeatability.
Reduced setup time, faster machining cycles, and increased production efficiency make the G-630 ideal for both prototype and mass production.
Renishaw Workpiece Probe
Tool Measurement System
Through-Spindle Coolant (TSC)
Chip Conveyor
Oil Mist Collector
Automatic Door
Rotary Scale Feedback
Automatic Tool Monitoring
High-Speed Spindle Upgrade
Automation Interface for Robotic Loading
The G-630 is ideal for aerospace, automotive, mold & die, medical devices, industrial equipment, robotics, and precision engineering.
It is suitable for aluminum, carbon steel, stainless steel, titanium alloys, copper, graphite, engineering plastics, and other non-ferrous materials.
Yes. The machine supports continuous simultaneous 5-axis interpolation for complex surfaces and precision multi-face machining.
Yes. Different spindle configurations, CNC control systems, probing systems, coolant options, and automation solutions can be configured according to production requirements.
