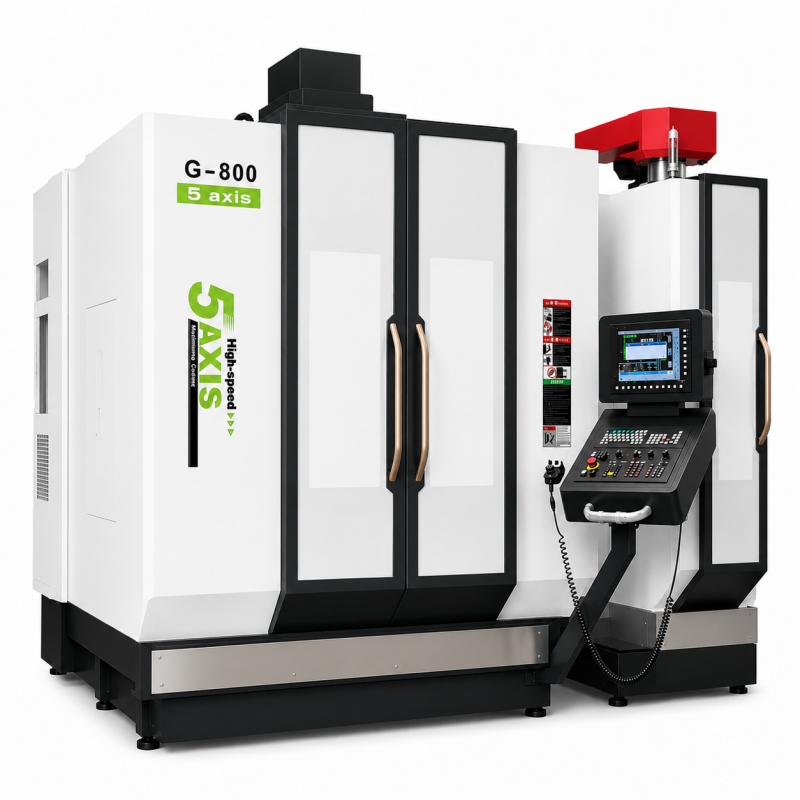

The G-800 5-Axis CNC Machining Center is a high-performance CNC machine designed for precision machining of automotive components and complex metal parts.
With advanced 5-axis simultaneous machining technology, the G-800 can machine multiple surfaces and complex geometries in a single setup. This helps reduce workpiece repositioning, improve machining accuracy and increase overall production efficiency.
The machine is suitable for machining a wide range of automotive components, including engine parts, transmission components, steering parts, suspension components, brake components, automotive housings, brackets and other precision metal parts.
The G-800 features a rigid machine structure, high-precision spindle system and advanced CNC control, providing stable performance for both high-speed machining and continuous production.
5-axis simultaneous CNC machining
Designed for automotive parts machining
High rigidity and machining stability
High-precision machining for complex components
Multi-surface machining in a single setup
Reduced setup and repositioning time
Suitable for aluminum, steel, stainless steel and other metals
Automatic tool changing system
Suitable for prototype development and mass production
Flexible solution for complex automotive components
The G-800 can be used for machining:
Engine Components
Transmission Parts
Gearbox Housings
Steering Components
Suspension Parts
Brake Components
Automotive Brackets
Automotive Housings
Wheel Components
Aluminum Automotive Parts
Precision Mechanical Components
Complex Structural Parts
5-Axis CNC Machining Center – Technical Specifications
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Table Size | 320 | 400 | 500 | 630 | 1200 | mm |
A-Axis Tilting Angle | ±110 | ±110 | ±110 | ±110 | ±110 | ° |
C-Axis Rotation Angle | 360 | 360 | 360 | 360 | 360 | ° |
A-Axis Rotation Speed | 100 | 100 | 80 | 80 | 50 | rpm |
C-Axis Rotation Speed | 200 | 200 | 120 | 120 | 100 | rpm |
Max Table Load | 100 | 250 | 450 | 850 | 2000 | kg |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X-Axis Travel | 400 | 500 | 600 | 800 | 1400 | mm |
Y-Axis Travel | 600 | 650 | 800 | 900 | 1400 | mm |
Z-Axis Travel | 350 | 450 | 480 | 600 | 900 | mm |
90° Y Front Travel | 350 | 400 | 450 | 550 | 750 | mm |
Spindle Nose to Table Surface | 470 | 570 | 630 | 720 | 1020 | mm |
Clearance | 120 | 120 | 90 | 120 | 120 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Taper Type | HSKE40 / E50 / A63 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Speed Range | 30,000 | 20,000 | 20,000 | 20,000 | 20,000 | rpm |
Spindle Power | 9 | 20 | 35 | 45 | 45 | kW |
Rated Torque | 14 | 33 | 48 | 100 | 100 | Nm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Rapid Traverse (X/Y/Z) | 30 | 36 | 36 | 36 | 24 | m/min |
Ball Screw Spec | 3210/3210/3210 | 3212/4012/3212 | 4012/5012/4012 | 4012/5512/4012 | 4012/5512/4012 | — |
Linear Guideways | 35/35/35 | 35/45/35 | 35×2 / 45×4 / 35×2 | 45/45/45 | 45/55/45 | — |
Servo Motor Torque | 20/30/20 | 25/35/25 | 30/35/30 | 30/35/30 | 35/45/35 | N·m |
Feed Rate (X/Y/Z) | 15 | 15 | 15 | 15 | 15 | m/min |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Tool Holder Type | HSKE40 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Tool Selection Method | Bi-directional shortest path selection | Same | Same | Same | Same | — |
Tool Capacity | 20 / 18 | 32 | 32 / 48 | 32 / 48 | 32 / 48 | tools |
Max Tool Length | 100 | 300 | 300 | 300 | 300 | mm |
Max Tool Weight | 3 | 8 | 8 | 8 | 10 | kg |
Max Tool Diameter (full tool) | Ø50 | Ø70 | Ø70 | Ø70 | Ø70 | mm |
Max Tool Diameter (adjacent empty slot) | Ø65 | Ø120 | Ø120 | Ø120 | Ø125 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | mm |
A-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
C-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | mm |
A-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
C-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Machine Weight | 4,800 | 9,500 | 13,000 | 17,000 | 26,000 | kg |
Machine Dimensions (L×W×H, excl. chip conveyor) | 2200×2900×2300 | 2700×3500×2900 | 2960×4200×3350 | 3300×4600×3600 | 4500×5500×4000 | mm |
The G-500 adopts premium mechanical and electrical components to ensure long-term machining accuracy and operational reliability.
High-Speed Built-in Spindle
Precision A/C Rotary Table
High-Precision Ball Screws
Roller Linear Guideways
Automatic Tool Changer (ATC)
High-Performance Servo Motors
Intelligent CNC Controller
Automatic Lubrication System
Efficient Cooling System
High-Power HSK-A63 Built-in Spindle
Precision A/C Rotary Table
Heavy-Duty Ball Screw Drive System
Roller Linear Guideways
Automatic Tool Changer (ATC)
High-Performance Servo Motors
Advanced CNC Control System
Automatic Lubrication System
High-Efficiency Cooling System
With 800 × 900 × 600 mm travels and an 850 kg table load, the G-800 is designed for larger and heavier workpieces.
The 45 kW spindle with 100 Nm rated torque provides excellent cutting capability for steel, stainless steel, titanium alloys, aluminum, and other engineering materials.
High-precision rotary axes, ball screws, and linear guideways ensure superior positioning accuracy and repeatability.
Simultaneous 5-axis machining reduces setups, shortens production cycles, and improves machining efficiency.
The rigid machine structure delivers excellent vibration resistance and stable machining performance during demanding operations.
