G-800

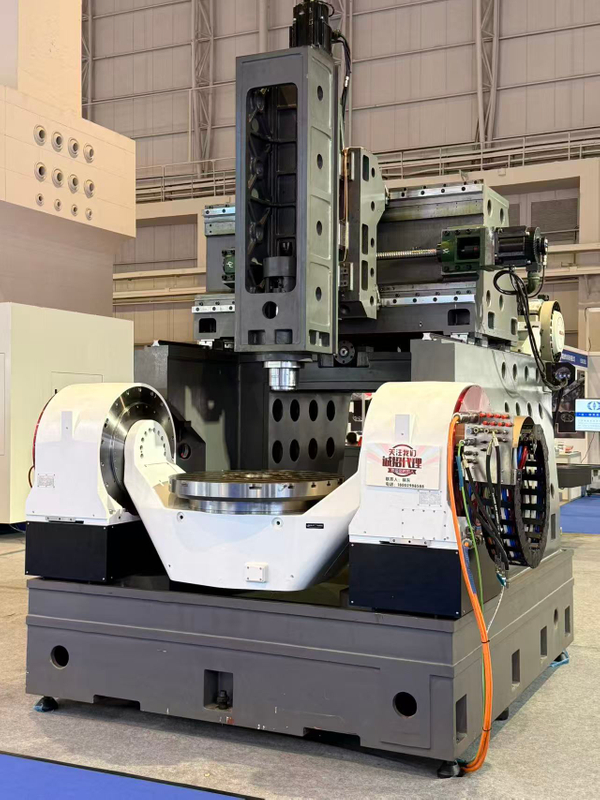

The G-800 5-Axis CNC Machining Center is designed for high-precision machining of medium to large complex components requiring exceptional rigidity, accuracy, and cutting performance. Equipped with simultaneous 5-axis machining technology, it enables complete multi-face machining in a single setup, improving productivity while reducing positioning errors and production time.
Featuring a 630 mm rotary table, an 850 kg maximum table load, and generous X/Y/Z travels of 800 × 900 × 600 mm, the G-800 provides outstanding stability for machining larger and heavier workpieces. Combined with a high-power spindle, precision rotary table, and intelligent CNC control system, it delivers reliable performance for demanding manufacturing applications.
The G-800 is engineered for manufacturers requiring high rigidity, large machining capacity, and consistent precision. Its robust structure and powerful spindle make it suitable for both high-speed finishing and heavy-duty cutting, providing exceptional flexibility for complex part production.
Simultaneous 5-Axis CNC Machining
630 mm Precision Rotary Table
850 kg Maximum Table Load
High-Power HSK-A63 Spindle
High-Rigidity Machine Structure
One-Setup Complete Machining
Precision Ball Screw Drive System
Heavy-Duty Roller Linear Guideways
Intelligent CNC Control System
Automatic Tool Changer (ATC)
Excellent Thermal Stability
Superior Dynamic Performance
High Positioning Accuracy
Optimized Chip Removal Design
The G-800 is widely used for manufacturing complex, high-value components in:
Aircraft structural components, engine housings, impellers, compressor parts, and titanium alloy components.
Large injection molds, die-casting molds, precision mold cores, and complex cavity machining.
Engine blocks, gearbox housings, suspension components, EV battery housings, and lightweight structural parts.
Medical implants, surgical instruments, orthopedic devices, and precision medical components.
Robotics, automation equipment, semiconductor components, energy equipment, and heavy industrial machinery.
5-Axis CNC Machining Center – Technical Specifications
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Table Size | 320 | 400 | 500 | 630 | 1200 | mm |
A-Axis Tilting Angle | ±110 | ±110 | ±110 | ±110 | ±110 | ° |
C-Axis Rotation Angle | 360 | 360 | 360 | 360 | 360 | ° |
A-Axis Rotation Speed | 100 | 100 | 80 | 80 | 50 | rpm |
C-Axis Rotation Speed | 200 | 200 | 120 | 120 | 100 | rpm |
Max Table Load | 100 | 250 | 450 | 850 | 2000 | kg |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X-Axis Travel | 400 | 500 | 600 | 800 | 1400 | mm |
Y-Axis Travel | 600 | 650 | 800 | 900 | 1400 | mm |
Z-Axis Travel | 350 | 450 | 480 | 600 | 900 | mm |
90° Y Front Travel | 350 | 400 | 450 | 550 | 750 | mm |
Spindle Nose to Table Surface | 470 | 570 | 630 | 720 | 1020 | mm |
Clearance | 120 | 120 | 90 | 120 | 120 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Taper Type | HSKE40 / E50 / A63 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Speed Range | 30,000 | 20,000 | 20,000 | 20,000 | 20,000 | rpm |
Spindle Power | 9 | 20 | 35 | 45 | 45 | kW |
Rated Torque | 14 | 33 | 48 | 100 | 100 | Nm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Rapid Traverse (X/Y/Z) | 30 | 36 | 36 | 36 | 24 | m/min |
Ball Screw Spec | 3210/3210/3210 | 3212/4012/3212 | 4012/5012/4012 | 4012/5512/4012 | 4012/5512/4012 | — |
Linear Guideways | 35/35/35 | 35/45/35 | 35×2 / 45×4 / 35×2 | 45/45/45 | 45/55/45 | — |
Servo Motor Torque | 20/30/20 | 25/35/25 | 30/35/30 | 30/35/30 | 35/45/35 | N·m |
Feed Rate (X/Y/Z) | 15 | 15 | 15 | 15 | 15 | m/min |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Tool Holder Type | HSKE40 | HSK A63 | HSK A63 | HSK A63 | HSK A63 | — |
Tool Selection Method | Bi-directional shortest path selection | Same | Same | Same | Same | — |
Tool Capacity | 20 / 18 | 32 | 32 / 48 | 32 / 48 | 32 / 48 | tools |
Max Tool Length | 100 | 300 | 300 | 300 | 300 | mm |
Max Tool Weight | 3 | 8 | 8 | 8 | 10 | kg |
Max Tool Diameter (full tool) | Ø50 | Ø70 | Ø70 | Ø70 | Ø70 | mm |
Max Tool Diameter (adjacent empty slot) | Ø65 | Ø120 | Ø120 | Ø120 | Ø125 | mm |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | mm |
A-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
C-Axis | ±5 | ±5 | ±5 | ±5 | ±5 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
X/Y/Z (300mm) | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | mm |
A-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
C-Axis | <4 | <4 | <4 | <4 | <4 | arc-sec |
Item | G-400 | G-500 | G-630 | G-800 | G-1400 | Unit |
|---|---|---|---|---|---|---|
Machine Weight | 4,800 | 9,500 | 13,000 | 17,000 | 26,000 | kg |
Machine Dimensions (L×W×H, excl. chip conveyor) | 2200×2900×2300 | 2700×3500×2900 | 2960×4200×3350 | 3300×4600×3600 | 4500×5500×4000 | mm |
The G-500 adopts premium mechanical and electrical components to ensure long-term machining accuracy and operational reliability.
High-Speed Built-in Spindle
Precision A/C Rotary Table
High-Precision Ball Screws
Roller Linear Guideways
Automatic Tool Changer (ATC)
High-Performance Servo Motors
Intelligent CNC Controller
Automatic Lubrication System
Efficient Cooling System
High-Power HSK-A63 Built-in Spindle
Precision A/C Rotary Table
Heavy-Duty Ball Screw Drive System
Roller Linear Guideways
Automatic Tool Changer (ATC)
High-Performance Servo Motors
Advanced CNC Control System
Automatic Lubrication System
High-Efficiency Cooling System
With 800 × 900 × 600 mm travels and an 850 kg table load, the G-800 is designed for larger and heavier workpieces.
The 45 kW spindle with 100 Nm rated torque provides excellent cutting capability for steel, stainless steel, titanium alloys, aluminum, and other engineering materials.
High-precision rotary axes, ball screws, and linear guideways ensure superior positioning accuracy and repeatability.
Simultaneous 5-axis machining reduces setups, shortens production cycles, and improves machining efficiency.
The rigid machine structure delivers excellent vibration resistance and stable machining performance during demanding operations.
