| Quantity: | |
|---|---|
HN-QX3000(C)
| Content | Parameter |
|---|---|
| Power Supply Voltage | 380V ±10%, 50/60Hz AC |
| Total Power Consumption | < 11kw |
| Placement Environment | Flat, vibration-free, no impact |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | ≤ 80% |
| Content | Parameter |
|---|---|
| Laser Average Power | 3000W |
| Power Instability | < 3% |
| Power Adjustment Range | 0-100% (gradually adjustable) |
| Focusing Spot Diameter | 0.1mm |
| Center Wavelength | 1080nm |
| Modulation Frequency | 10KHz-50KHz (gradually adjustable) |
| Fiber Length | 10/15m |
| Cleaning Mode | |
| Cooling Method | Water Cooling |
| Operating Temperature | 5°C to 40°C |

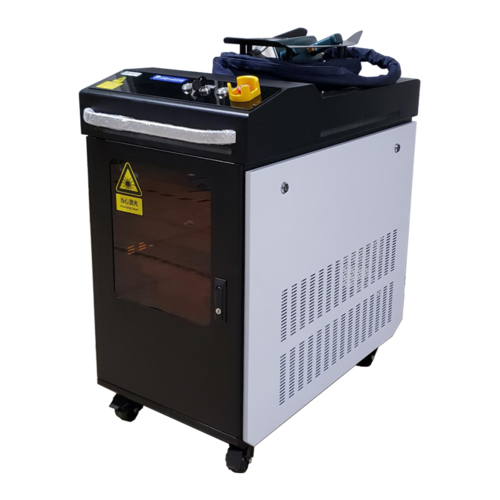

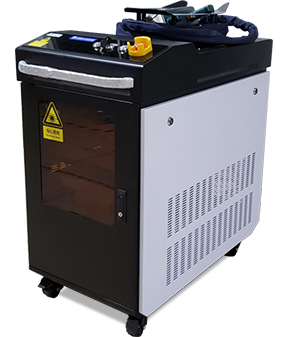

The HN-QX(C) Series laser cleaning system is a high-power laser cleaning machine that uses water cooling to maintain optimal operating temperatures. This series offers 1500W, 2000W, and 3000W power options, providing flexibility based on the cleaning needs of different workpieces. It is portable, making it suitable for both handheld operation and robotic arm integration. Here’s an overview of its key features and applications:
Key Features of the HN-QX(C) Series Laser Cleaning System:
Water Cooling System:
The water-cooling feature ensures that the laser system maintains a stable temperature, preventing overheating and ensuring continuous, reliable operation. This is especially important in high-power laser cleaning, where thermal management is crucial for maintaining efficiency and laser performance.
High Power Options:
1500W, 2000W, and 3000W: The availability of multiple power levels allows you to choose the best configuration based on the size and material of the workpiece to be cleaned. Higher power levels are particularly useful for heavier contaminants or large-scale cleaning applications.
The 3000W Handheld Laser Cleaning Machine is a powerful, industrial-grade tool designed to provide efficient rust removal, oil, grease, and coating removal from metal surfaces. Equipped with a water-cooling system and operating on 380V power, this machine offers high performance for demanding cleaning tasks, especially in industrial environments.
Key Features:
3000W Laser Power:
The 3000W laser power ensures robust cleaning capabilities, ideal for tackling heavy-duty applications. This power level allows for fast and thorough cleaning of large areas and tough contaminants like rust, paint, grease, and oil from metal surfaces such as steel, aluminum, copper, and more.
The higher power output makes it suitable for cleaning large and heavily contaminated surfaces or larger industrial equipment, making it perfect for industrial applications.
Handheld Design:
The handheld configuration provides excellent mobility, allowing operators to clean hard-to-reach areas with precision.
It is designed for easy maneuverability, making it ideal for cleaning complex geometries or areas that are difficult to access with larger stationary systems.
380V Power Supply:
The machine operates on a 380V power supply, providing sufficient power to drive the 3000W laser and ensure continuous high-efficiency performance in industrial settings.
380V is a standard power supply for many industrial facilities, making it compatible with existing electrical systems.
Water-Cooled System:
The water cooling system ensures that the laser system operates at an optimal temperature, preventing overheating during long periods of use.
This cooling mechanism improves the machine’s lifespan and efficiency by maintaining the system's temperature within the ideal range, even during demanding tasks.
It also enhances the overall reliability of the machine, preventing potential damage due to thermal stress.
Laser Cleaning Efficiency:
This laser cleaning machine utilizes high-intensity laser pulses that remove contaminants like rust, oil, paint, and coatings from metal surfaces effectively. The laser's energy is absorbed by the contaminant, causing it to vaporize, explode, or be blown away by the resulting pressure.
The laser beam is highly concentrated, providing a clean and precise surface without damaging the underlying metal.
No Consumables Required:
Unlike traditional cleaning methods (such as sandblasting or chemical cleaning), the laser cleaning process uses no consumables. There are no abrasive materials, solvents, or chemicals involved, which significantly reduces operational costs and environmental impact.
The eco-friendly nature of this method makes it a safe and cost-effective solution for cleaning metals without generating hazardous waste.
Minimal Maintenance:
The machine is designed with minimal maintenance needs, with a focus on long-lasting performance. The water-cooling system helps keep the laser components running at their best.
The no consumable approach means no abrasive materials, chemical disposal, or regular part replacements are necessary, reducing maintenance efforts and costs.
Versatile Applications:
Rust Removal: The machine is ideal for removing rust from industrial metal parts, steel structures, and machinery, restoring metal surfaces to their original condition.
Coating Removal: It effectively removes paint, oil, and other coatings from metal parts, preparing them for welding, coating, or painting.
Grease and Contaminant Removal: The laser cleaning machine is perfect for removing oil, grease, and dirt from engine parts, machinery, automotive components, and equipment.
Surface Preparation: It can also be used for surface preparation before processes like welding, galvanizing, or coating to ensure optimal adhesion and finish quality.
Safety Features:
Laser Safety: The system includes laser safety shields and protective gear (such as goggles) for operators to ensure safe operation.
Automatic Shutdown: The system is designed to automatically shut down in case of an overheat, ensuring safe operation during prolonged use.
Easy Operation:
The user interface is intuitive, with simple controls that allow operators to adjust laser power, focus, and cleaning speed with ease.
The handheld nature allows the operator to work with precision, handling a wide range of metal parts, from large machinery to small, intricate components.
Advantages:
High Power for Heavy-Duty Applications: The 3000W power makes it suitable for heavy-duty industrial applications, offering fast and efficient cleaning.
Eco-Friendly: No consumables or chemicals are needed, making the process environmentally friendly and cost-effective.
Portable and Versatile: The handheld design makes it easy to use in various industrial environments, allowing for high mobility and flexibility.
Cost-Efficient: Without the need for consumables and with minimal maintenance, this machine offers long-term savings.
Non-Destructive: It cleans the surface without causing damage to the material, maintaining the integrity of the metal.
Applications:
Automotive Industry: Removing rust, paint, and grease from automotive parts, such as engine components, chassis, and body parts.
Aerospace: Cleaning of aerospace parts like engine components, landing gear, and metal surfaces.
Manufacturing & Metalworking: Cleaning of metal parts before welding, coating, or painting.
Shipbuilding: Rust and paint removal from ship components, offshore equipment, and marine structures.
Construction: Cleaning steel beams, pipes, and other metal parts before assembly, painting, or galvanization.
Considerations:
Power Supply: Ensure the facility has access to 380V power, as this is required for the machine to function properly. Compatibility with the existing electrical system is crucial.
Operator Safety: Proper laser protection (goggles, shields) and safety procedures must be followed during operation.
Conclusion:
The 3000W Handheld Laser Cleaning Machine is a high-power, efficient, and versatile solution for rust removal, paint removal, grease, and oil removal from metal surfaces. With its water-cooled system and 380V power, it delivers robust performance for industrial cleaning applications, offering long-term savings, eco-friendliness, and precise cleaning capabilities. Whether you’re working with automotive parts, machinery, or aerospace components, this laser cleaner provides a safe, efficient, and cost-effective solution.
