DPH-1000/1500
Dapeng laser
8515809090

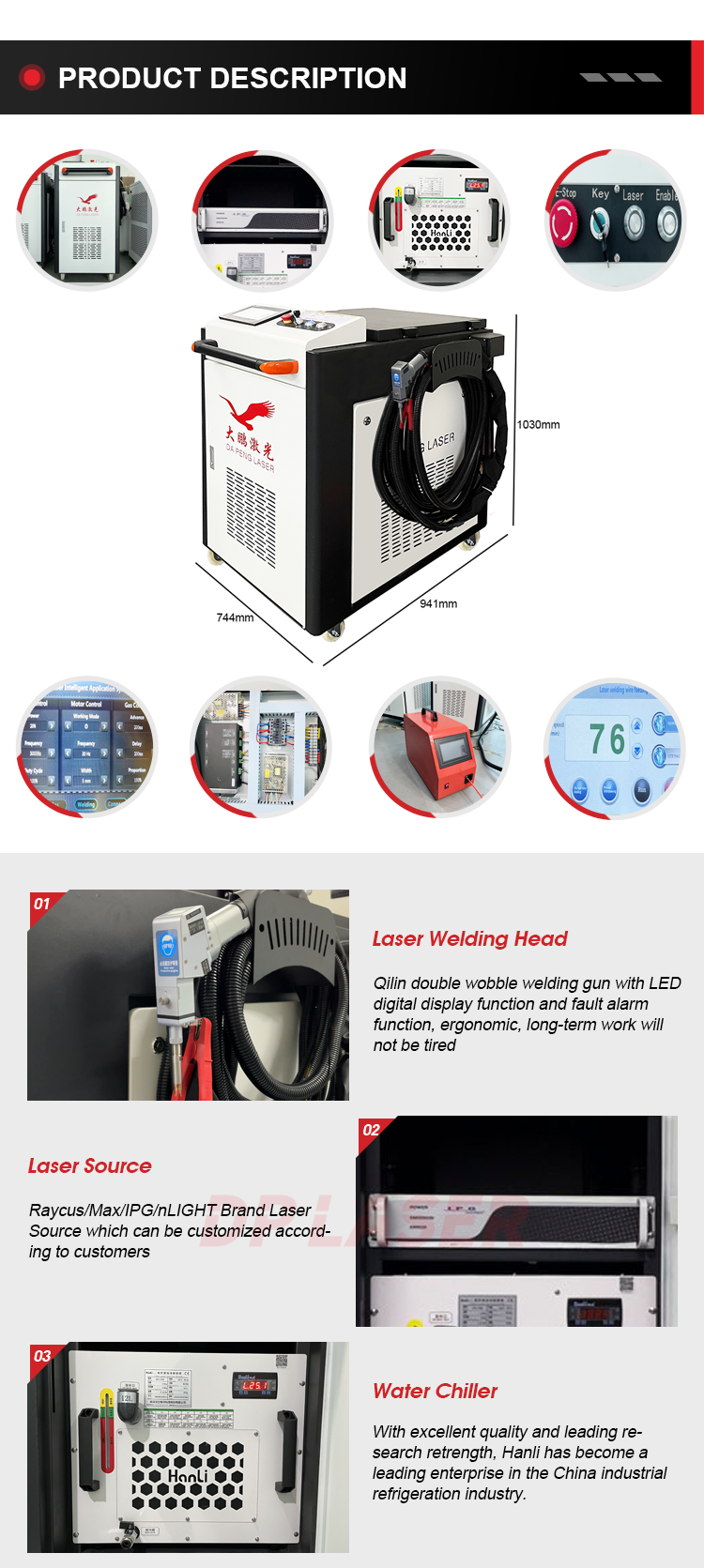

Handheld laser welding machine with wire feeder
| Model | DPH-1000-SCBD-W-CX | DPH-1500-SCBD-W-CX | DPH-2000-SCBZ-W-CX | DPH-3000-SCBZ-W-CX |
| Laser source type | Fiber source | Fiber source | Fiber source | Fiber source |
| Laser Out Power | 1000W | 1500W | 2000W | 3000W |
| Laser wavelength | 1070nm | 1070nm | 1070nm | 1070nm |
| Laser Source | Raycus/Max/IPG | Raycus/Max/IPG | Raycus/Max/IPG | Raycus/Max/IPG |
| Focal spot diameter | 0.1-3mm | 0.1-3mm | 0.1-3mm | 0.1-3mm |
| Laser frequency | 1-50Hz | 1-50Hz | 1-50Hz | 1-50Hz |
| Repeatability | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
| Machine operating temperature | 0~40℃ | 0~40℃ | 0~40℃ | 0~40℃ |
| Electricity demand | 220V | 220V | 220V/380V | 220V/380V |
| Cooling method | Water Chiller Hanli | Water Chiller Hanli | Water Chiller Hanli | Water Chiller Hanli |
| Continuous operating time | 24 hours | 24 hours | 24 hours | 24 hours |
| Weight | 230kg | 230kg | 230kg | 230kg |
| Dimensions | 95*75*103cm | 95*75*103cm | 126*75*111cm | 126*75*111cm |
| Laser control system | Depeng Touch screen | Depeng Touch screen | Depeng Touch screen | Depeng Touch screen |
Model features:
★High energy density, low heat input, small amount of thermal deformation, and narrow melting depth in the heat and heat affected zone of the melting zone.
★The cooling rate is high, so that the weld structure can be fine and the joint performance is good.
★ Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly improving work efficiency.
★The weld is fine, the penetration is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
★ No consumables, small size, flexible processing, low operating and maintenance costs
★The laser is transmitted through the optical fiber and can work with the assembly line or the robot.
Product advantages:
The laser welding machine adopts 500-1500 watt fiber laser source, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times that of YAG laser.
Application areas:
It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace, aviation, power battery and daily necessities industries.
Handheld laser welding machine in customer workshop https://youtu.be/cGhemuw8Pe8
