High Quality Cheap 1000w 2000w 1500w Mini Raycus Continuous Handheld Fiber Laser Welding Machine Portable Steel Lazer Welders

Views: 1     Author: hu     Publish Time: 2022-11-01      Origin: dapeng

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

High Quality Cheap 1000w 2000w 1500w Mini Raycus Continuous Handheld Fiber Laser Welding Machine Portable Steel Lazer Welders

Product Description

Specification
Model
DPH-1000
DPH-1500
DPH-2000
DPH-3000
Laser source type
Fiber source
Fiber source
Fiber source
Fiber source
Laser Out Power
1000W
1500W
2000W
3000W
Laser wavelength
1070nm
1070nm
1070nm
1070nm
Laser Source
Raycus/Max/IPG
Raycus/Max/IPG
Raycus/Max/IPG
Raycus/Max/IPG
Focal spot diameter
0.1-3mm
0.1-3mm
0.1-3mm
0.1-3mm
Laser frequency
1-50Hz
1-50Hz
1-50Hz
1-50Hz
Repeatability
±0.01mm
±0.01mm
±0.01mm
±0.01mm
Machine operating temperature
0~40℃
0~40℃
0~40℃
0~40℃
Electricity demand
220V/380V
220V/380V
220V/380V
220V/380V
Cooling method
Water Chiller Hanli
Water Chiller Hanli
Water Chiller Hanli
Water Chiller Hanli
Continuous operating time
24 hours
24 hours
24 hours
24 hours
Weight
150kg
150kg
150kg
150kg
Dimensions
120*60*104cm
120*60*104cm
120*60*104cm
120*60*104cm
Laser control system
Depeng Touch screen
Depeng Touch screen
Depeng Touch screen
Depeng Touch screen

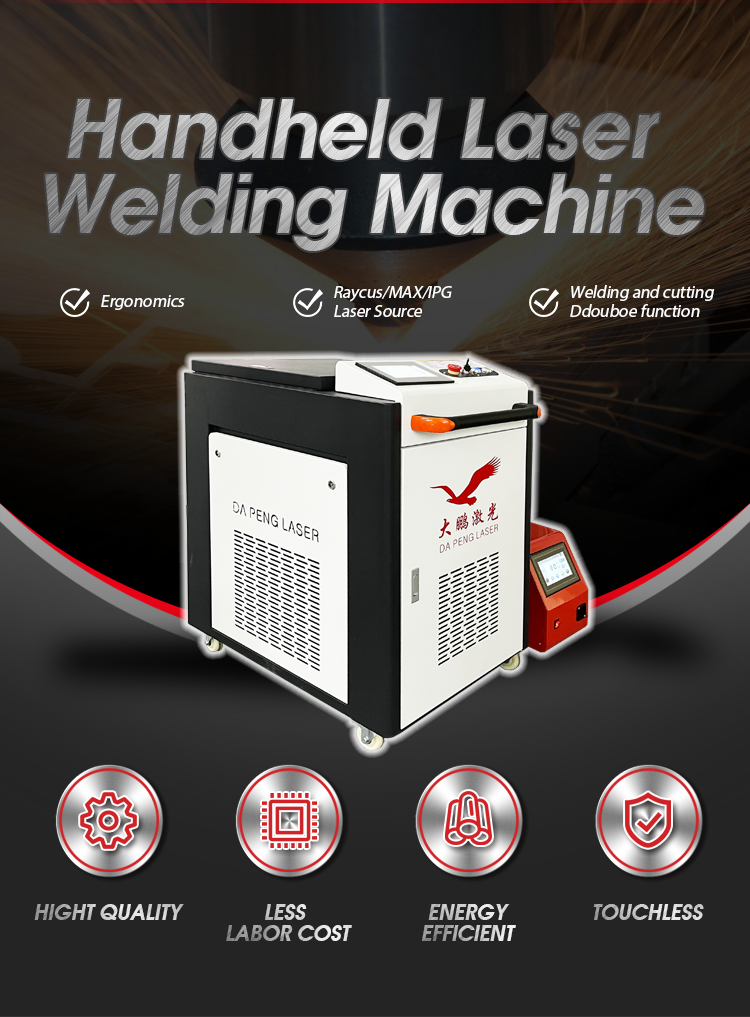

Features:
Dapeng laser handheld welding machine with simple design and nice looking , size only 120*60*104cm. Adopts world-class laser source, better beam quality and excellent welding performance. It's very easy to operate, equipped with one-key start function. All parameters are controlled by touch screen, the welding spot size is adjustable. The welding head has dual motor optional, welding path workable for straight line"-", "S" and "O" type. A full set of original welding nozzles and protective lenses are included with the package. Machine sold with automatic wire feeding system, which can weld wider gap and high welding strength requirments.
Click here to contact us for more information
Company Profile
Shenzhen Dapeng Laser Technology Co, Ltd. was established in 2011. It is a laser equipment high-tech enterprise that integrates R&D, manufacturing, sales and service. It is dedicated to laser process R&D, laser equipment design R&D, production, technical support, service and consulting. Our company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc, applied to electronics, IC chips, electrical appliances, lighting fixtures, jewelry, hardware tools, sanitary ware, instruments Instrumentation, automobile and motorcycle accessories, mobile phone communications components, molds, precision machinery, medical equipment, IT digital, metal housing, military aviation components, garment leather, craft gifts, advertising decoration, models, cookware, kitchen utensils and other industries. Dapeng laser product quality are stable and reliable, with a professional R & D team, while pursuing excellent quality, Dapeng laser also provides customers with timely, comfortable pre-sale, sales, after-sales service and excellent cost-effective products. Dapeng Laser has won the trust and praise of customers by implementing the business philosophy of "helping customers succeed, creating value models, and building industrial laser equipment industry to serve high-end brands". Customers are located throughout the country and overseas. In 2016, sold more than 5,000 laser equipment. Our company has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services.
