Metal Deburring Machine Metal Deburring Machines

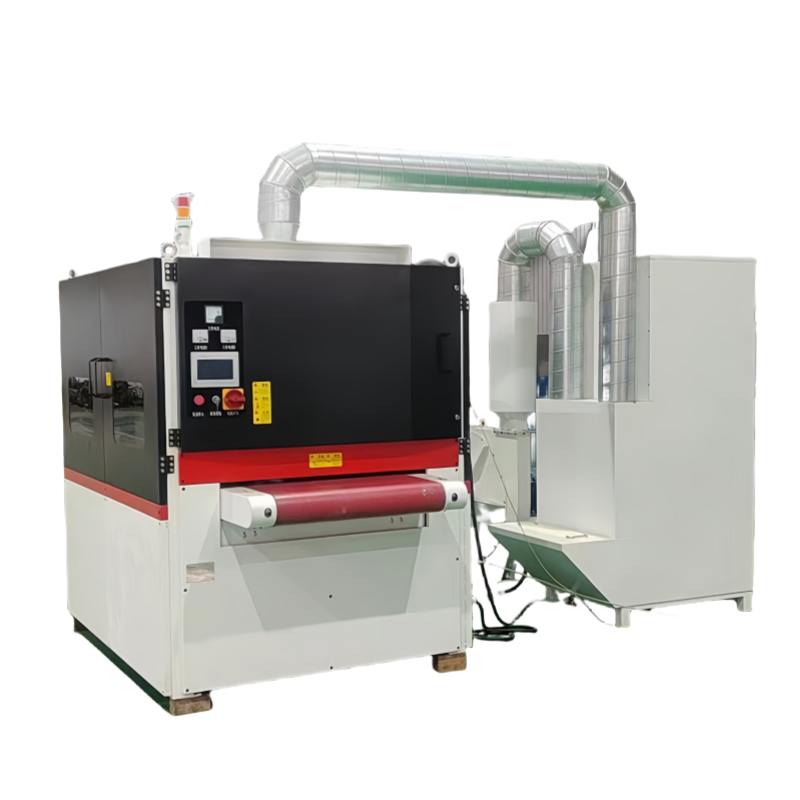

Metal Deburring Machine – 800mm Working Width with 4 Deburring Wheels

✅ Product Description:

This metal deburring machine is specially designed for precision edge deburring and rounding of sheet metal parts, especially after laser cutting. With a working width of 800mm and a deburring system consisting of 4 high-performance deburring wheels, it ensures consistent edge quality, efficient burr removal, and smooth surface finishing.

Key Features:

• Working Width: 800mm (customizable)

• Deburring Wheels: 1 set with 4 rotary wheels for high-efficiency processing

• Applications: Deburring, edge rounding, oxide layer removal, and surface preparation

• Material Compatibility: Stainless steel, carbon steel, aluminum, copper, and other non-ferrous metals

• Process Type: Dry or wet (optional)

• Minimum Part Size: 50mm × 50mm

• Processing Thickness: 0.8mm – 80mm

• Edge Radius Achievable: R1 to R2mm (depending on brushes and settings)

⚙️ Performance Highlights:

• Uniform edge rounding across all sides, including inner holes and contours

• High throughput, suitable for batch processing of laser-cut parts

• Optional vacuum bed or magnetic table for part fixation during processing

• Frequency-controlled motor for adjustable brush speed

• Long service life and low maintenance cost

• PLC + HMI touchscreen for intelligent operation and parameter storage

Typical Applications:

• Laser cut part deburring and finishing

• Pre-treatment before powder coating or painting

• Oxide film and slag removal for improved weld prep

• Suitable for parts from laser, plasma, flame, or punching operations

Optional Add-ons:

• Dust extraction or wet dust collection system

• In-feed/out-feed conveyor tables

• Custom abrasive brushes (nylon, ceramic, SiC, etc.)

• Servo-controlled brush compensation for consistent pressure
