Mopa Color Dynamic Marker Raycus Metal Fiber Laser 20W 30W 50W Metal Engraving Machinery With Rotary

Views: 0     Author: 胡     Publish Time: 2018-09-17      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

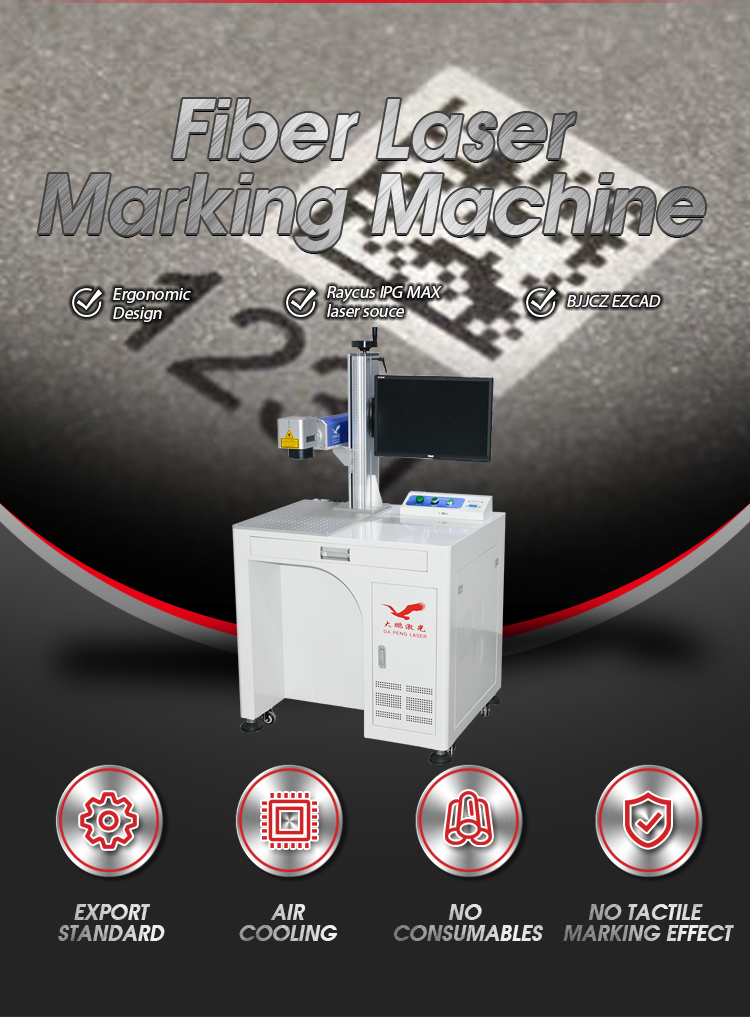

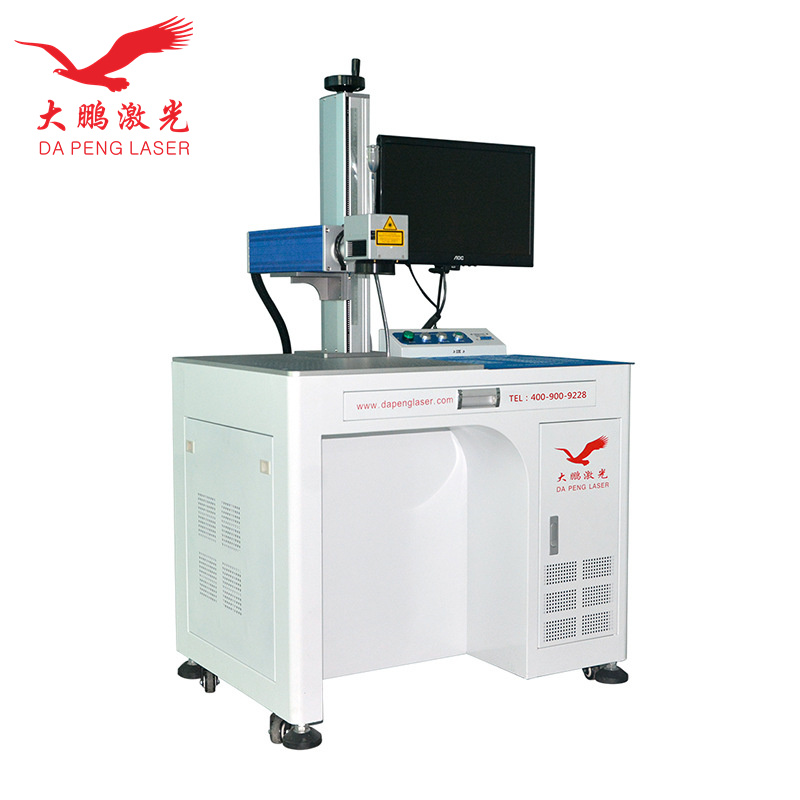

Mopa Color Mask Dynamic Marker Raycus Metal Fiber Laser 20W 30W 50W Metal Engraving Machinery With Rotary
Specification
Model
FC-20
FC-30
FC-50
FC-100
Laser source type
Fiber source
Fiber source
Fiber source
Fiber source
Laser Out Power
20W
30W
50W
100W
Laser wavelength
1064nm
1064nm
1064nm
1064nm
Laser Source
Raycus/Max/IPG
Raycus/Max/IPG
Raycus/Max/IPG
Raycus/Max/IPG
Optional Marking Area
150mm*150mm,180mm*180mm,200mm*200mm,300mm*300mm
150mm*150mm,180mm*180mm,200mm*200mm,300mm*300mm
150mm*150mm,180mm*180mm,200mm*200mm,300mm*300mm
150mm*150mm,180mm*180mm,200mm*200mm,300mm*300mm
Laser frequency
<0.6KW
<0.6KW
<0.6KW
<0.6KW
Repeatability
±0.002mm
±0.002mm
±0.002mm
±0.002mm
Machine operating temperature
0~40℃
0~40℃
0~40℃
0~40℃
Electricity demand
Ac220V±10%.
50HZ.5Amp
Ac220V±10%.
50HZ.5Amp
Ac220V±10%.
50HZ.5Amp
Ac220V±10%.
50HZ.5Amp
Cooling method
Air cooled
Air cooled
Air cooled
Air cooled
Continuous operating time
24 hours
24 hours
24 hours
24 hours
Weight
130kg
130kg
130kg
130kg
Dimensions
80*65*142cm
80*65*142cm
80*65*142cm
80*65*142cm

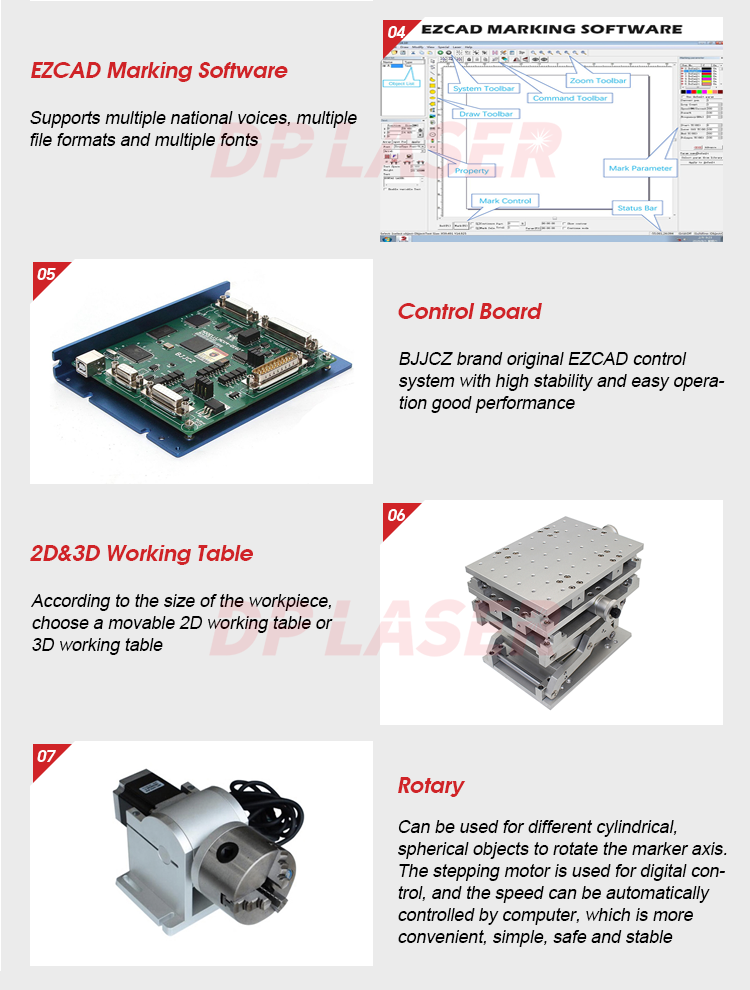

Software
EZCAD
EZCAD
EZCAD
EZCAD
True Type Fonts
Single Stroke Fonts
Elliptical Text
Sequential Serial Numbers
Customizable Auto Dating
Barcodes
QR Codes and Data Matrix
UID Wizard
Logo
Photo Quality Images - JPG, TIF, GIF
Corel Draw, Adobe Illustrator
Raster Graphics
Vector Graphics
CAD Files

Metal Industry, Jewelry Factories, Hardware Tools, Electronics Components, Auto Parts, Mobile & Accessories, Clock&Watches,Planting Coating Materials, Spray Material, Plastic, Spectacles,etc.
Stainless Steel
Steel
Aluminum, Carbide
Nickel
Titanium
Cast Iron
Chrome
Painted Metal Alloys
Multi-Coated Metals
Plastics/Rubber
Backlit Buttons
Polycarbonate
PVC
Composites
Many more materials
Features:

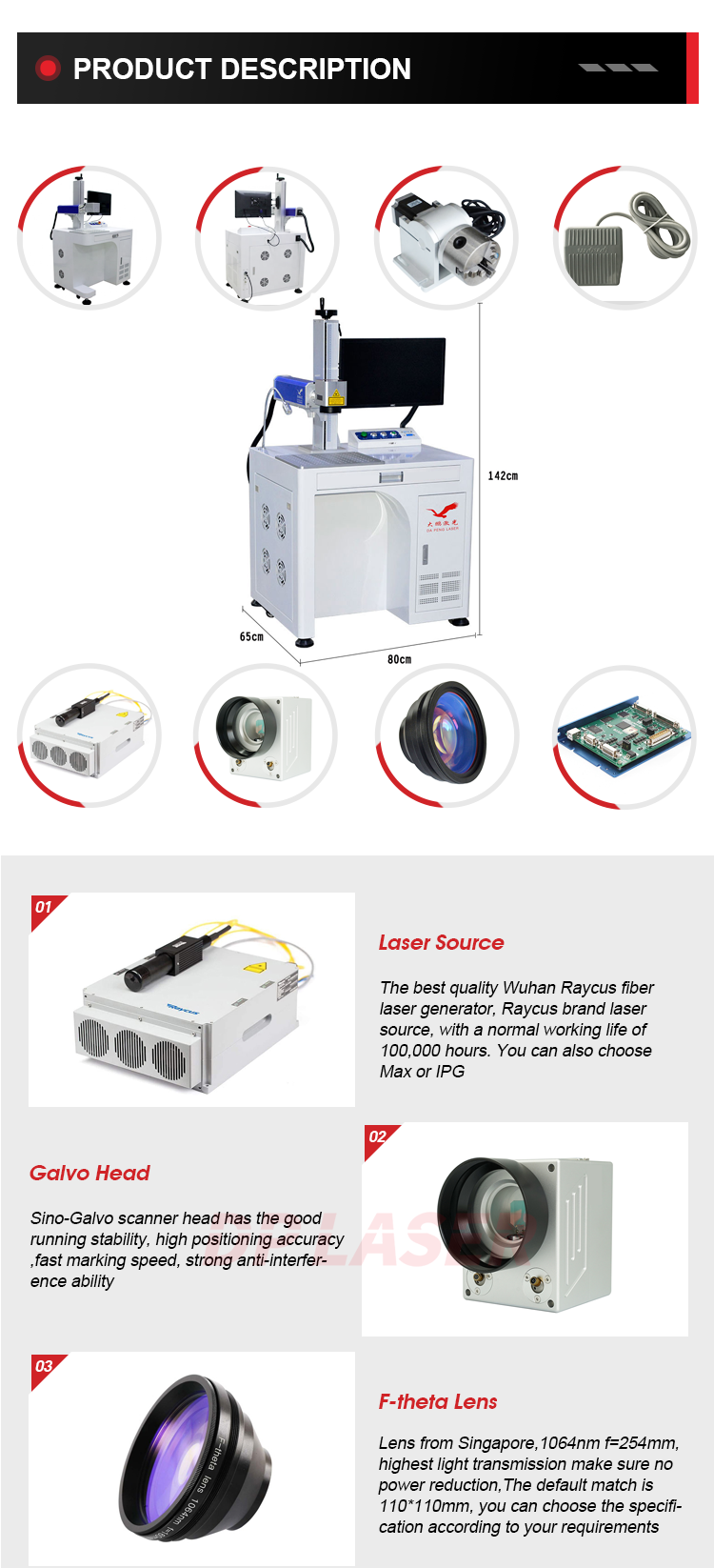

>> MOPA Fiber Laser Marking Machine
Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
High Precision: Re-position precision is 0.002mm
High Speed: Imported scanning system makes the scanning speed is up to 7m/s
Easily Operating:Afford the specific coding software based on Windows, You can input and output by computer according to edit in the both of the specific coding software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
High Reliability: MTBF>100,000 hours
Energy Saving: The efficiency of optic-electrical converting is up to 30%
Low Running Cost: No wearing part. Free maintaining.
>>MOPA Fiber Laser Marking Machine Applicable Material:
All metal,engineering plastics,electroplat coating materials,coating ,aterials,spraying materials,plastic rubber,epoxy
resin,ceramics etc
>> MOPA Fiber Laser Marking Machine Applicable Industry:
Phone key,light penetration key,electronic parts and components,integrated circuit(IC),electrician electric
appliance,communication products,sanitary wares,tool accessories,gasses and watches,jewellry,auto parts,buckles,kitchenware and stainless steel products industries.
