Portable Electrode Equipment Parts Manufacturing Machinery Laser Welder Welding Machine With Handheld Welding

Views: 0     Author: 胡     Publish Time: 2022-12-06      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description：
High Quality Portable 500w 800W 1000w 1500w Desktop Continuous Raycus Welder Handheld Fiber Laser Welding Machine
Specification：
Model
DPH-500
DPH-800
DPH-1000
DPH-1500
Laser source type
Fiber source
Fiber source
Fiber source
Fiber source
Laser Out Power
500W
800W
1000W
1500W
Laser wavelength
1070nm
1070nm
1070nm
1070nm
Laser Source
Raycus/Max/IPG
Raycus/Max/IPG
Raycus/Max/IPG
Raycus/Max/IPG
Focal spot diameter
0.1-3mm
0.1-3mm
0.1-3mm
0.1-3mm
Laser frequency
1-50Hz
1-50Hz
1-50Hz
1-50Hz
Repeatability
±0.01mm
±0.01mm
±0.01mm
±0.01mm
Machine operating temperature
0~40℃
0~40℃
0~40℃
0~40℃
Electricity demand
220V/380V
220V/380V
220V/380V
220V/380V
Cooling method
Water Chiller Hanli
Water Chiller Hanli
Water Chiller Hanli
Water Chiller Hanli
Continuous operating time
24 hours
24 hours
24 hours
24 hours
Weight
150kg
150kg
150kg
150kg
Dimensions
120*60*104cm
120*60*104cm
120*60*104cm
120*60*104cm
Laser control system
Depeng Touch screen
Depeng Touch screen
Depeng Touch screen
Depeng Touch screen
Features:

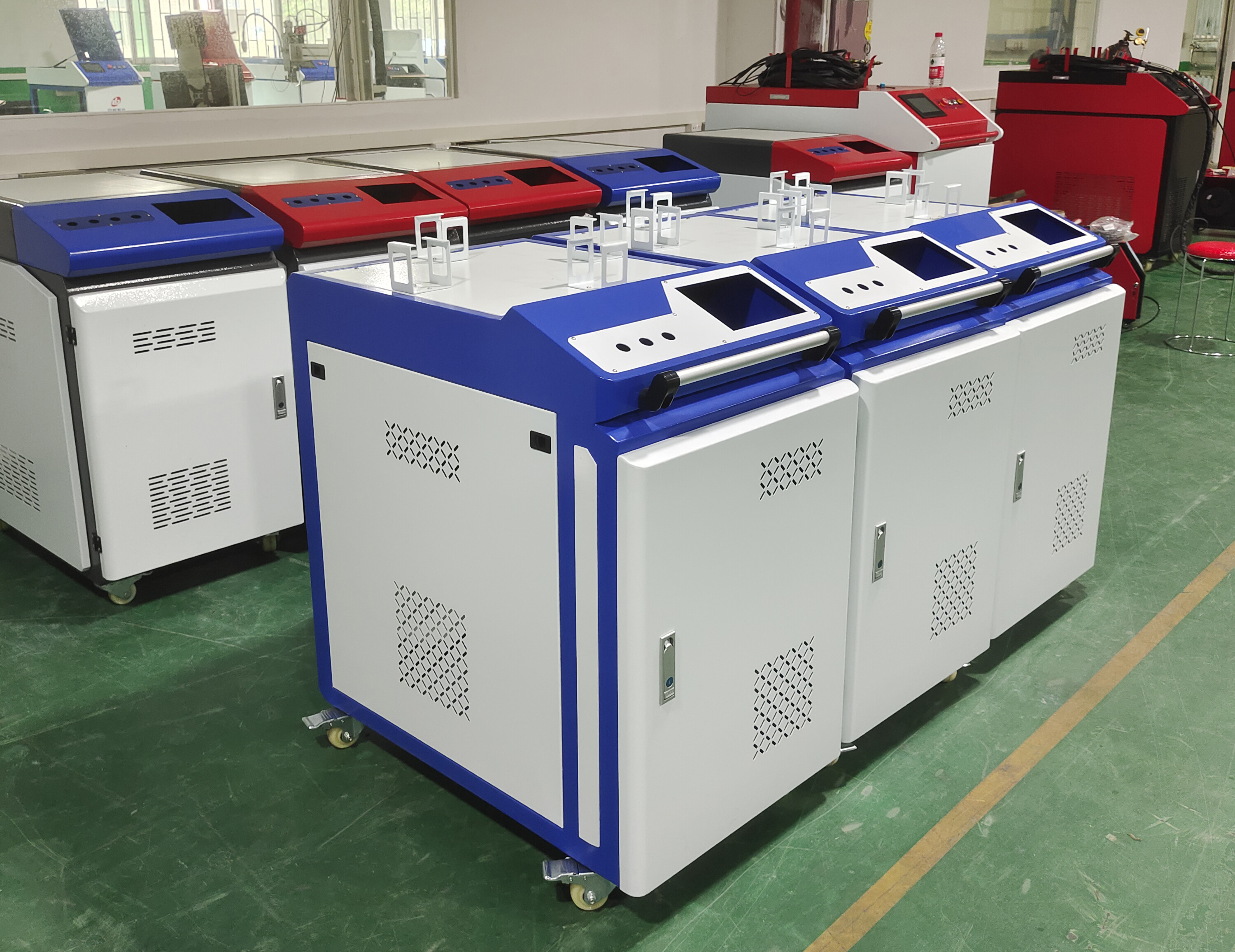

Dapeng laser handheld welding machine with simple design and nice looking , size only 120*60*104cm. Adopts world-class laser source, better beam quality and excellent welding performance. It's very easy to operate, equipped with one-key start function. All parameters are controlled by touch screen, the welding spot size is adjustable. The welding head has dual motor optional, welding path workable for straight line"-", "S" and "O" type. A full set of original welding nozzles and protective lenses are included with the package. Machine sold with automatic wire feeding system, which can weld wider gap and high welding strength requirments.
