handheld portable laser cleaning machine 50W 100W laser cleaner for metal rust paint oil removal

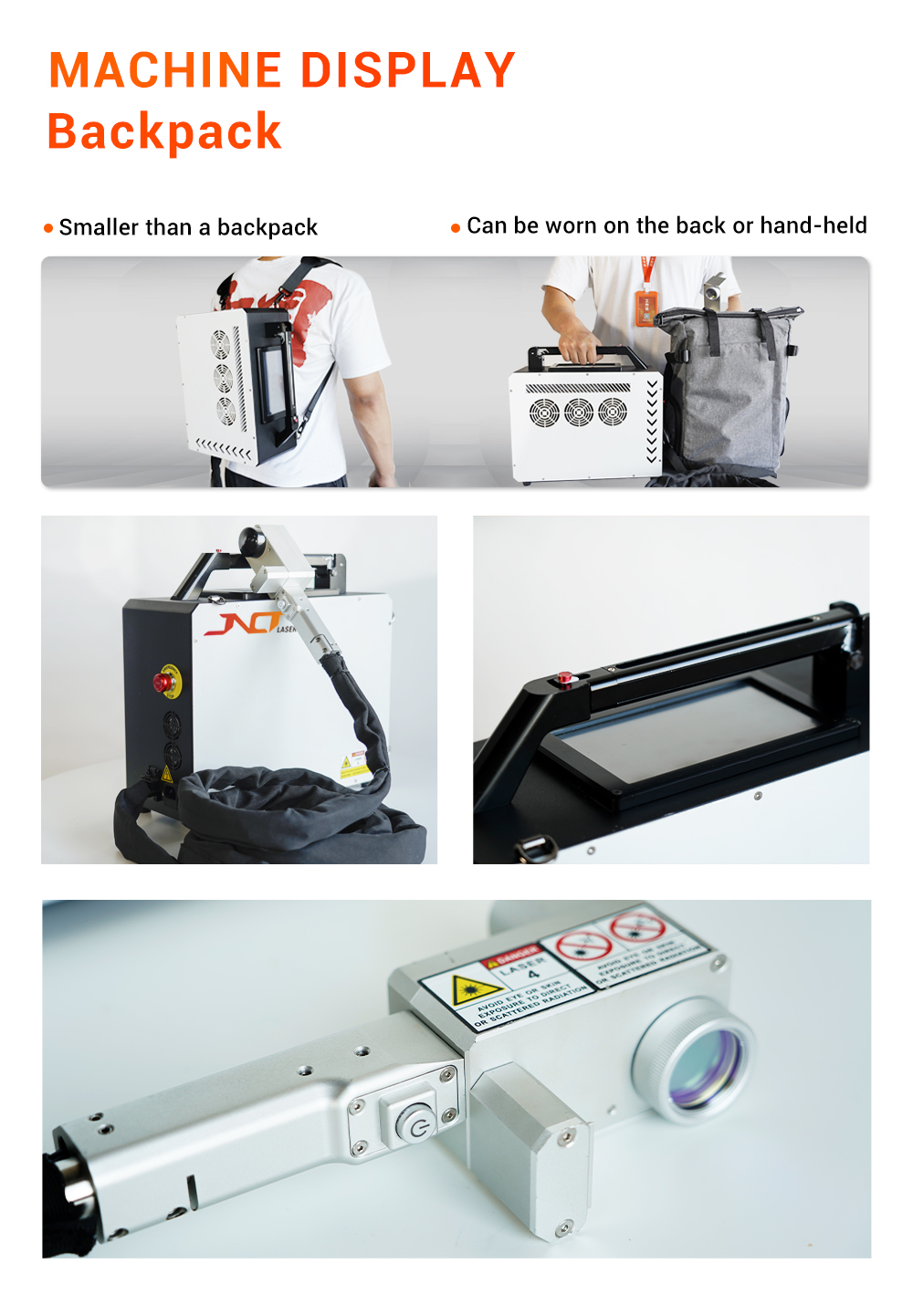

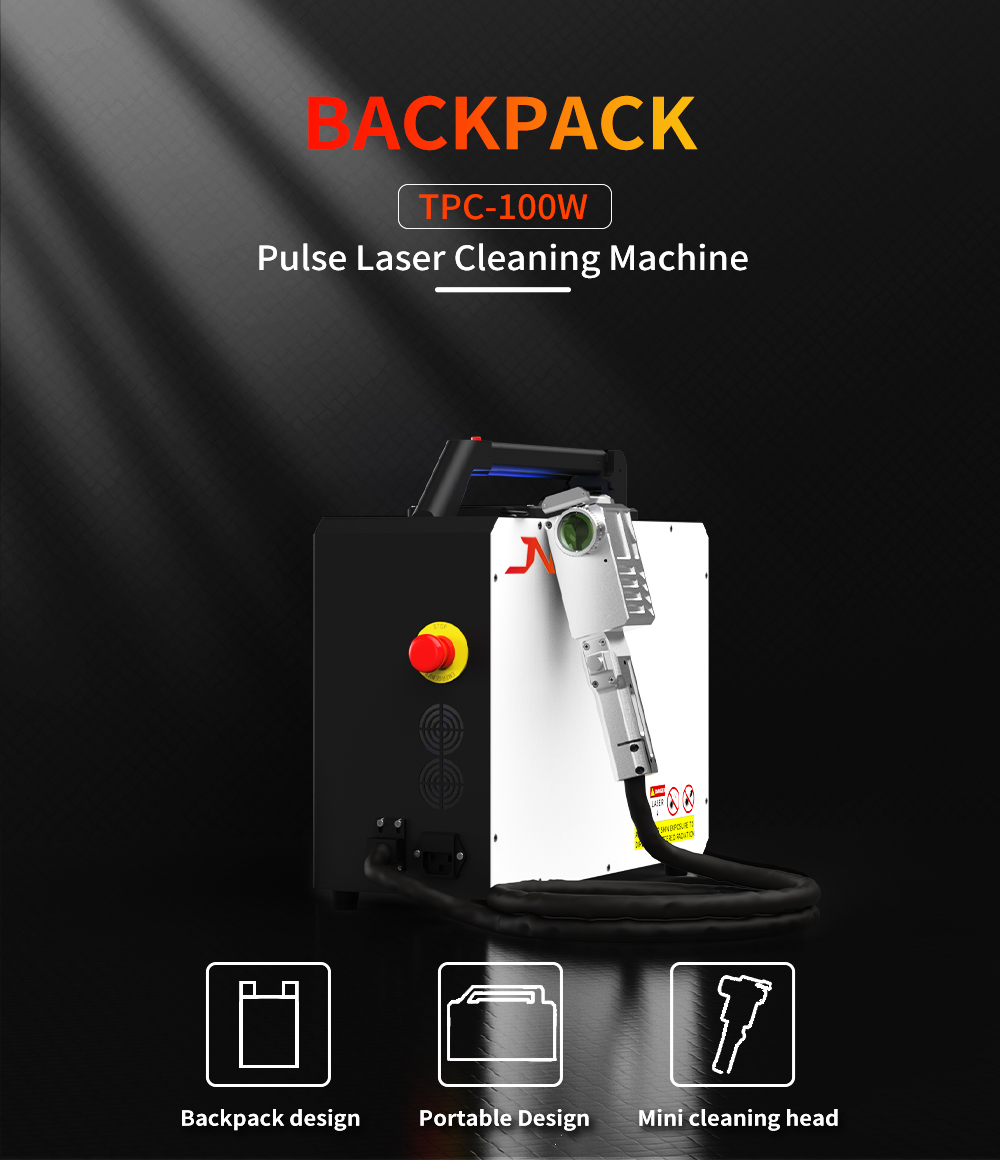

This 100W BACKPACK new mini laser pulse laser cleaning machine is small and portable, the cleaning process is very simple and fast, the design is compact, and the weight of the whole machine is only 10kg.With a backpack style design, you can carry it on your back to clean places that other large equipment cannot reach, such as outdoor work at heights, corner cleaning, etc. Mainly used for laser graffiti clean, weld cleaning and metal primer removal.
The 50W laser cleaning machine is a mini laser cleaning machine, which is only the size of A4 paper in length and width, only 8kg in full weight, can be lifted by a single finger, and can be backpacked, which was unimaginable a year ago. Today we have achieved this goal.
Semiconductor processing, roller, precision parts, welding seam. Laser derusting can replace pickling and phosphating cleaning equipment, and can also be used for stainless steel weld bead spot cleaning, titanium alloy cleaning, and weldment cleaning.
The original intention of the P-50 is to serve the two major application scenarios of the domestic and international markets: weld bead cleaning and urban graffiti. The overall power of the product is 230W, the average output power is 50W, the full power frequency is 45KHZ, and the beam quality m<1.6. It can effectively remove the black and rust paint layer of the weld bead.
The overall size of the machine is 280 * 220 * 122mm, which is equivalent to the size of A4 paper. The net weight of the chassis is 6.8kg, and the overall weight of the machine with the 5th generation mini laser head and optical fiber cable is 8kg. Whether it is handheld, shoulder back, or fixed in the station, it looks small. On the premise of ensuring the full range of functions, we have done the utmost miniaturization to make the chassis easy to carry and transport.
The knapsack type laser cleaning system integrates light volume, simple operation, efficient cleaning, non-contact and pollution-free. It can effectively remove oil stains, stains, dirt, rust, coatings, plating, etc. on the surface of the workpiece, meet the cleaning requirements of complex modeling and fine positioning in the industrial processing field, and achieve a higher cleaning effect.
