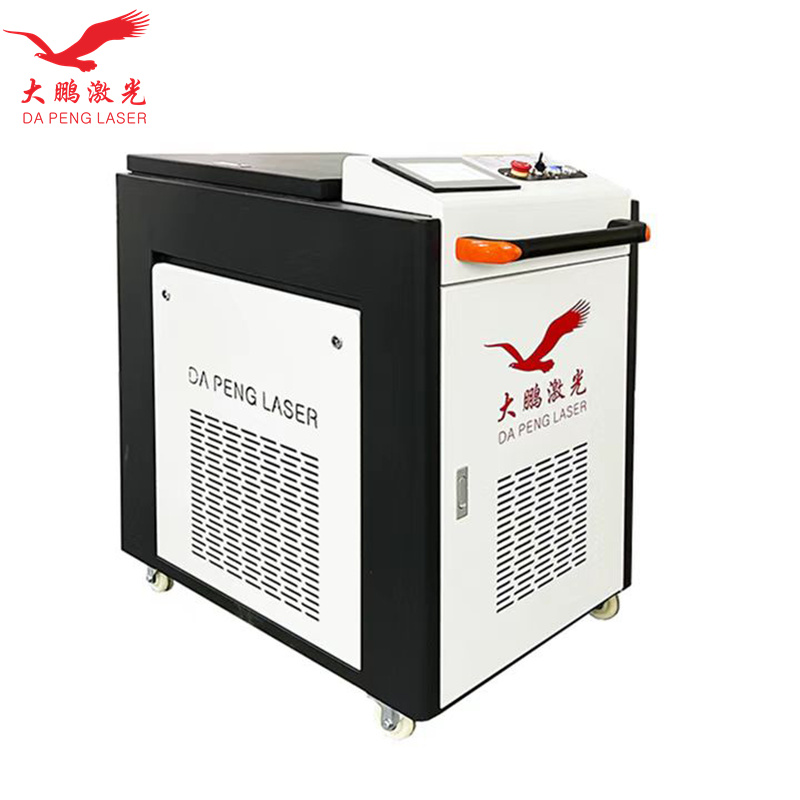

Industrial 1000W 1500W 2000W Metal Oil Grease Old Paint Dust Cleaner Rust Removal Handheld Laser Cleaning Machine
Specification:
Model
DP-CL1000-SC-W-CX
DP-CL1500-SC-W-CX
DP-CL2000-SC-W-CX
Laser source type
Fiber source
Fiber source
Fiber source
Laser Out Power
1000W
1500W
2000W
Laser wavelength
1070nm
1070nm
1070nm
Laser Source
Raycus/Max/IPG/nLIGHT
Raycus/Max/IPG/nLIGHT
Raycus/Max/IPG/nLIGHT
Focal spot diameter
0.1-3mm
0.1-3mm
0.1-3mm
Laser frequency
1-50Hz
1-50Hz
1-50Hz
Repeatability
±0.01mm
±0.01mm
±0.01mm
Machine operating temperature
0~40℃
0~40℃
0~40℃
Electricity demand
220V
220V
220V/380V
Cooling method
Water Chiller Hanli
Water Chiller Hanli
Water Chiller Hanli
Continuous operating time
24 hours
24 hours
24 hours
Weight
230kg
230kg
230kg
Dimensions
1030*941*744mm
1030*941*744mm
1030*941*744mm
Laser control system
Depeng Touch screen
Depeng Touch screen
Depeng Touch screen
Features:
1)Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves, thermal stress, etc., causing surface materials to sublimate and evaporate. 2)The focused laser beam is capable of accurately evaporating surface objects or dirt. 3)Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface. 4)By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.
Main Advantages:
1. Fast and concentrated pulses with enormous power impact and gasification of residues on the surface; 2. Laser pulses are verysuitable for the removal of organic matter, such as residues in the tire mold fouling; 3. The impact of a short period of timewill not cause metal surface heating, no damage to the substrate. 4. Clean or remove the surface paint layer quickly and cleanly; 5. Accurate cleaning and paint removal effect; 6. No damage to the base material.

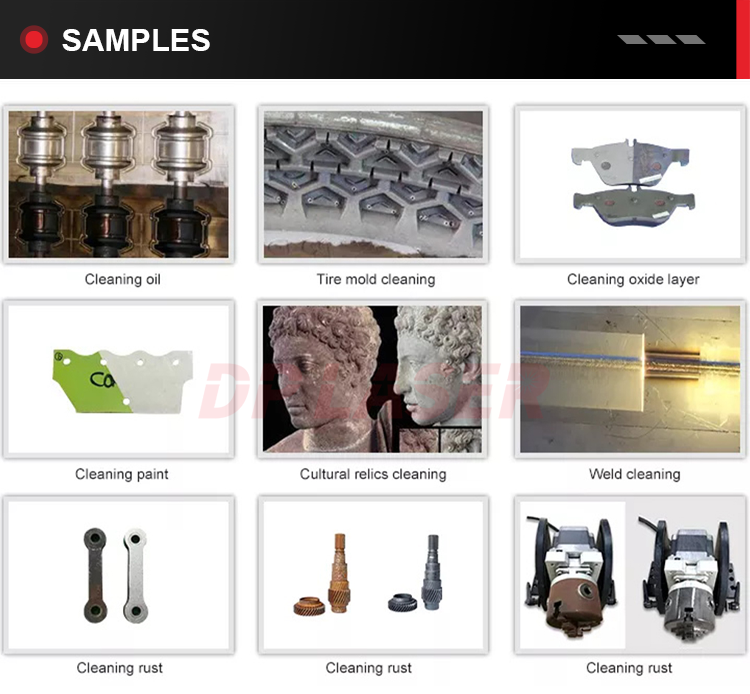

Cleaning Fiber laser cleaning head has a good cleaning effect on iron, carbon steel plate, stainless steel plate, mold steel gear, aluminum plate, paint layer and other materials. The laser cleaning mode can clean the oxide layer, remove the paint on the surface, clean the surface oil, stains and dit, clean the rubber mold residue. Meet the requirements for equipment cleaning in the shipbuilding industry, auto parts, rubber molds, machine tools, environmental protection industries and other fields.
