MSP-L1000R

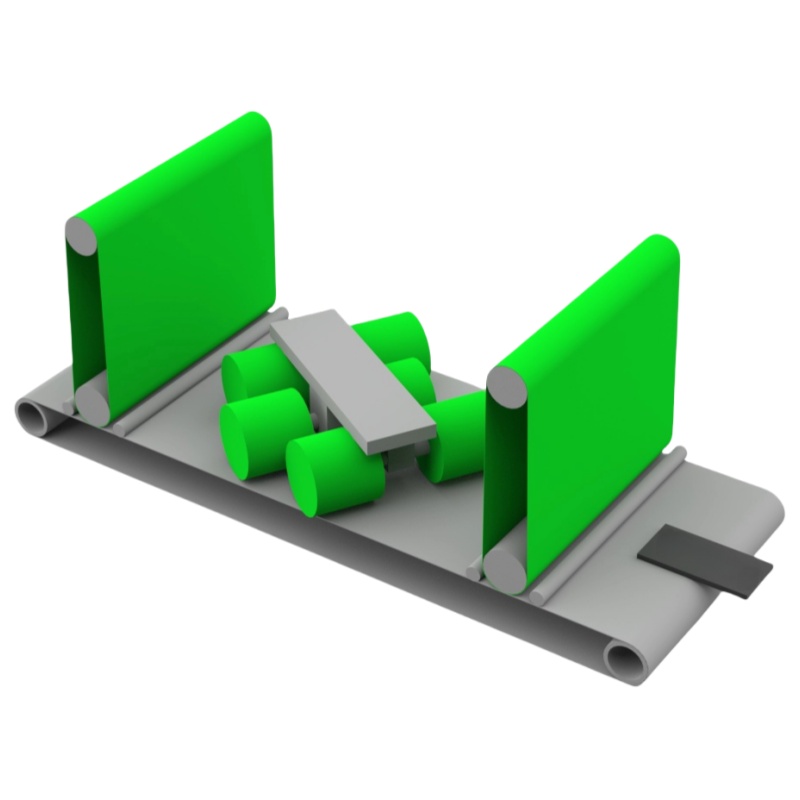

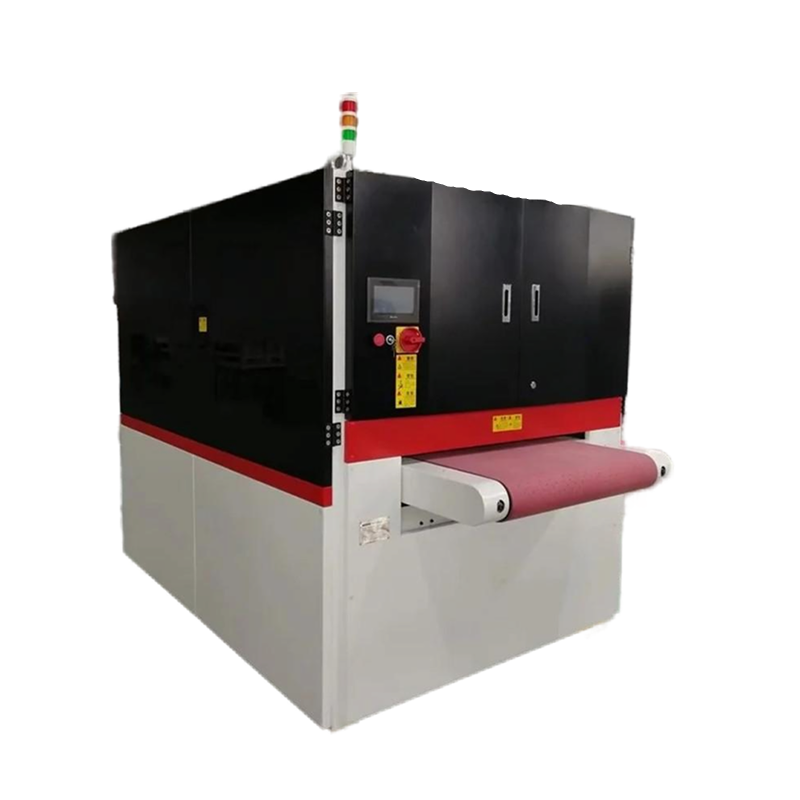

The Three-Station Sanding Belt + Hammer Disc + Sanding Belt Deburring & Surface Treatment Machine is designed for heavy slag removal, deburring, edge rounding, and satin finishing of metal parts, particularly those processed via plasma, flame, or laser cutting. This machine utilizes a combination of sanding belts, hammer discs, and brushes to efficiently remove burrs, smooth sharp edges, and provide a polished satin finish on a variety of materials, including steel, aluminum, and stainless steel.
It is equipped with advanced servo-driven systems for precise adjustments, ensuring optimal surface treatment. The adjustable feed speed, sanding belt speed, and brush rotation speed allow for flexible processing, meeting the demands of different part sizes and material types.
Heavy Slag Removal: Ideal for effectively removing slag from plasma and flame-cut parts.
Deburring: Efficiently removes burrs from edges and holes, improving part quality and safety.
Edge Rounding: Smooths sharp edges, providing safety and enhancing the aesthetic appearance of the parts.
Satin Finishing: Produces a uniform satin finish for a clean and polished surface.
Material Types: Works with various materials such as steel, aluminum, and stainless steel.
Processing Versatility: Capable of handling a wide range of part sizes and material thicknesses.
| Specification | Details |
|---|---|
| Material | Steel, Aluminum, Stainless Steel |
| Process | Heavy Slag Removal, Deburring, Edge Rounding, Satin Finishing |
| Processing Width | ≤ 1020 mm |
| Processing Thickness | 1 ~ 80 mm |
| Total Power | 46.35 kW |
| Sanding Belt Dimensions | 1910 mm x 1050 mm |
| Brush Diameter | Φ300 mm x 300 mm |
| Conveyor Feeding Speed | 0.5 ~ 6 m/min (Variable Frequency) |
| Sanding Belt Speed | Approx. 14 m/s |
| Brush Rotation Speed (Self Rotation) | 8 ~ 26 m/s (Variable Frequency) |
| Brush Revolution Speed (Planetary Rotation) | 1 ~ 15 rpm (Variable Frequency) |
| Brush Planetary Axial Head Count | 1 |
| Brush Planetary Self-Rotation Head Count | 6 |
| Thickness Servo Adjustment Precision | 0.01 mm |
| Brush Compensation Servo Adjustment Precision | 0.01 mm |
| Grinding Consumables | Hammer Disc Brush, Sanding Belt, Brushes |
| Material Thickness | 0.5 ~ 80 mm |
| Min. Part Dimensions | 50 x 50 mm (flat parts, thickness 0.5 ~ 10 mm) |
| Max Material Weight | 500 kg |
| Conveyor Speed | 0.5 ~ 6.0 m/min (Variable Frequency) |
| Min. Deduster Requirement | 5000 m³/h |
| Machine Weight | Approx. 700 kg |
| Holder System | Magnetic (Vacuum Optional) |
High Efficiency: Capable of processing parts quickly with adjustable feed speeds (0.5 ~ 6 m/min).
Precision: The machine offers servo-driven adjustments for thickness and brush compensation, providing high precision (0.01 mm).
Versatility: It can process a wide variety of materials and part sizes, ranging from 0.5 mm to 80 mm in thickness, and parts as small as 50 x 50 mm.
Advanced Dust Control: Equipped with a high-efficiency dust extraction system (5000 m³/h), ensuring a clean and safe working environment.
Durability: The robust design, with a weight of approximately 700 kg, ensures long-lasting and reliable operation.
Enhanced Part Quality: The machine removes burrs and sharp edges, improving both the safety and visual appeal of the parts.
Cost-Effective: Reduces the need for manual labor, improving production efficiency and reducing costs.
Flexible Processing: Capable of processing a variety of metal types and thicknesses, making it suitable for various industries, including automotive, aerospace, metal fabrication, and more.
Safety and Environmental Protection: The magnetic holder system, along with the optional vacuum system, ensures secure handling and effective dust collection.
