MSP-DL1000

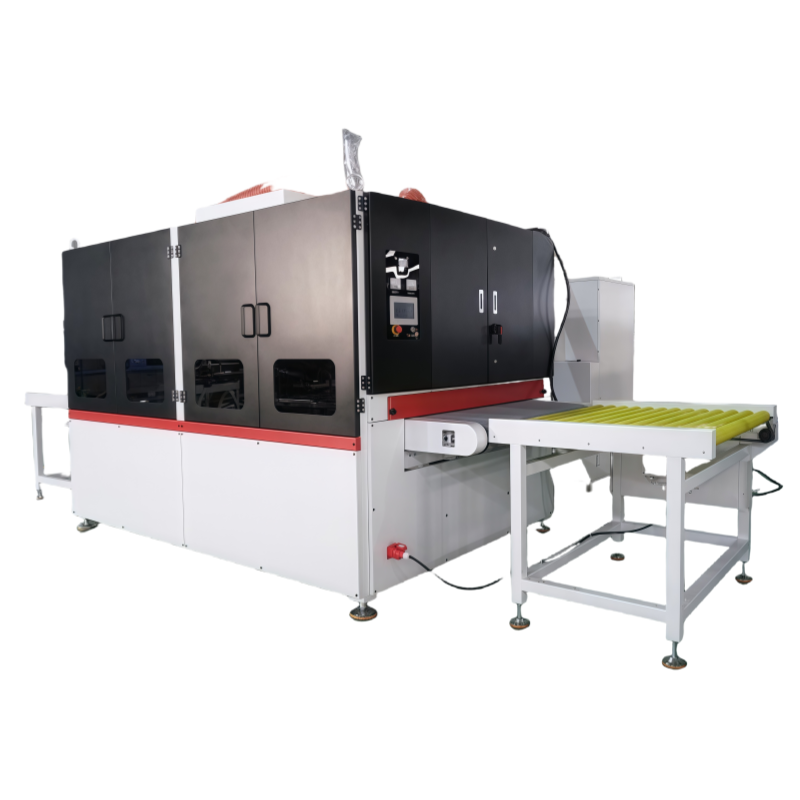

1000mm Heavy-Duty Deburring and Chamfering Machine specifications and functions
| Parameter | Specification/Description |
|---|---|
| Processing Materials | Stainless steel, carbon steel, aluminum plate, copper plate, various non-ferrous metals |
| Processing Width | ≤1020mm |
| Processing Thickness | 1~80mm |
| Minimum Processing Size | 50mm × 50mm (For non-perforated workpieces, thickness 0.5~10mm) |
| Total Machine Power | 50.35KW |
| Feeding Speed | 0.5~6m/min (Adjustable via frequency converter) |
| Abrasive Belt Speed | Approx. 14m/s |
| Rotary Brush Self-Rotation Speed | 8~26m/s (Adjustable via frequency converter) |
| Rotary Brush Orbital Rotation Speed | 1~15r/min (Adjustable via frequency converter) |
| Planetary Rotary Brush Orbiting Heads | 1 |
| Planetary Rotary Brush Self-Rotating Heads | 6 |
| Servo Adjustment Precision for Processing Thickness | 0.01mm |
| Servo Adjustment Precision for Brush Compensation | 0.01mm |
| Abrasive Consumables | Steel hammer disk brush + abrasive belt + rotary brush |
| Dust Extraction Volume | 4000m³/h |
| Machine Dimensions | L3600mm × W2150mm × H2500mm |
| Total Machine Weight | Approx. 4.5T |

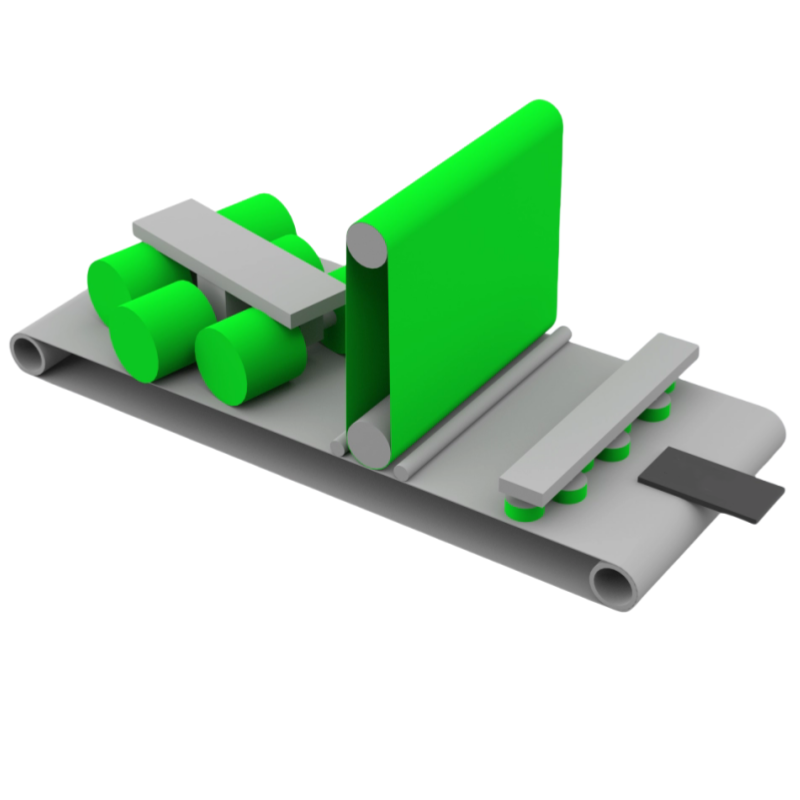

Steel Hammer Disk Brush Station: Removes surface slag and heavy burrs through impact.
Abrasive Belt Station: Eliminates residual burrs and performs surface sanding.
Universal Rotary Brush Station:
Composed of 6 sets of omnidirectional abrasive pad rotary brushes in counter-rotation & orbiting mode
Efficiently deburrs edges and inner holes with no dead zones
Creates a uniform R-chamfer effect, adjustable R-radius
Conveyor System:
Strong vacuum adsorption secures small workpieces (≥50mm × 50mm)
Variable speed control to accommodate different processing needs
Dust Extraction System:
Equipped with a wet dust collector, efficiently handling grinding dust
Uses water spray dust settlement for clean air discharge, meeting environmental standards
Increased Production Efficiency: Continuous feed processing meets high-volume production demands.
Improved Product Quality: Ensures consistency and surface finish superior to manual processing.
Reduced Processing Costs: Lower unit area processing costs compared to manual operations.
Safe & Environmentally Friendly: Efficient dust collection system improves the working environment and ensures operator safety.
| Consumable Type | Specification/Material |
|---|---|
| Steel Hammer Disk Brush | Φ162mm |
| Abrasive Belt | 1910 × 1050mm |
| Abrasive Pad Rotary Brush | Φ300mm × 300mm |
| Optional Abrasives | Ceramic abrasive belts, zirconium oxide belts, aluminum oxide belts, 3M Cubitron belts |
| Heavy-Duty Slag Removal Disc | Suitable for removing heavy burrs after flame or plasma cutting |
| Scotch-Brite Abrasive Belt | For fine sanding and polishing applications |
