MSP-L1350

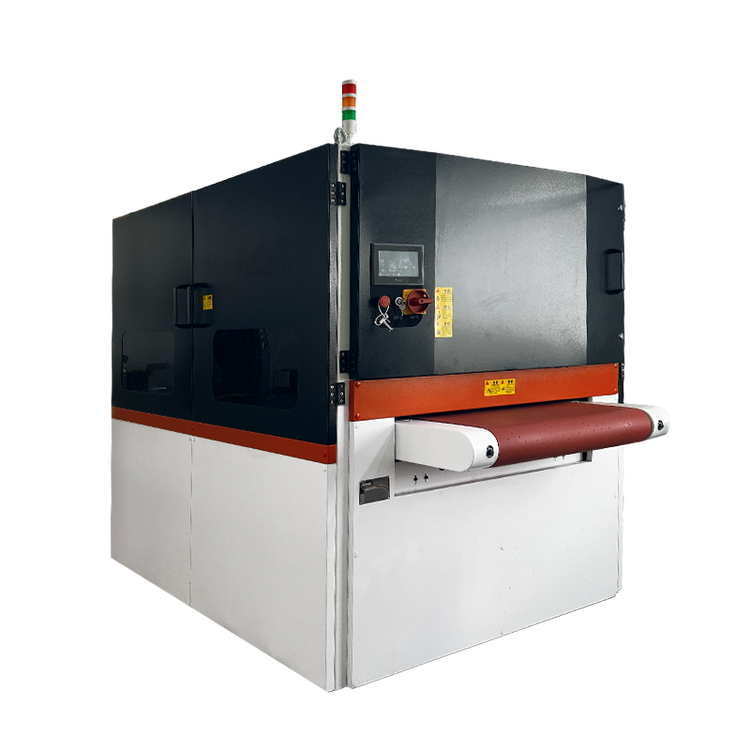

The 1350mm Deburring and Edge Rounding Machine is designed to efficiently remove burrs formed during flame cutting, laser cutting, plasma cutting, shearing, punching, and waterjet cutting processes. It ensures sharp edges are rounded and surfaces are smoothed, significantly enhancing both the safety and aesthetic of metal parts.

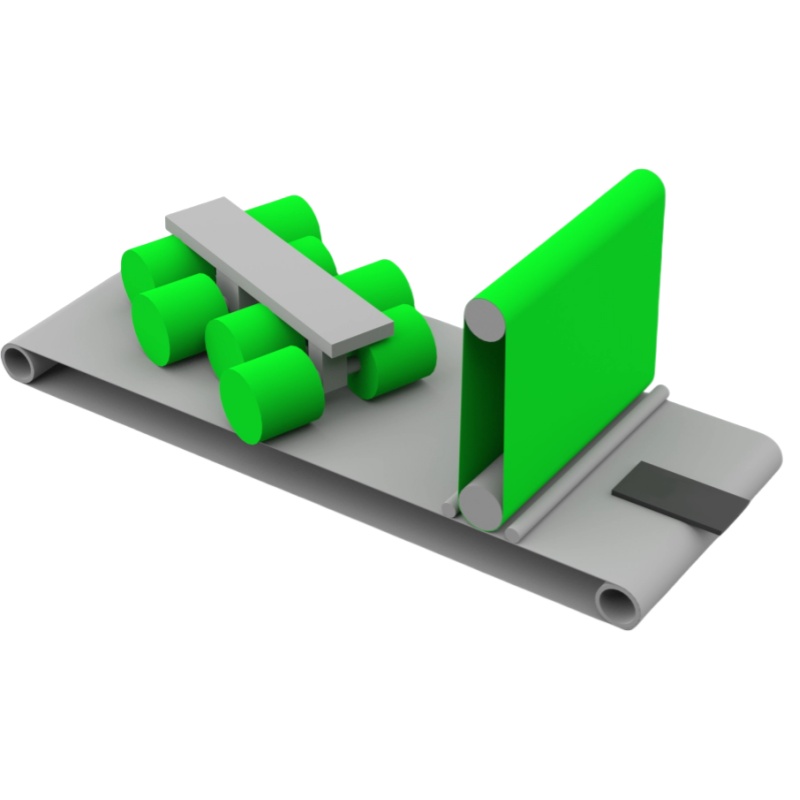

Equipped with high-performance abrasive belt and flap wheel stations, this machine is suitable for steel, aluminum, and stainless steel materials, delivering consistent results across various part sizes and thicknesses.
This machine is ideal for:
Laser cut parts
Plasma cut parts
Flame cut metal components
Sheared and punched sheets
Waterjet cut metal
Burr and sharp edge removal
Edge rounding (up to R2.0 possible depending on configuration)
Surface smoothing and preparation for further processing (coating, painting, welding)
It is widely used in:
Metal fabrication workshops
Automotive and chassis part production
Electrical enclosures and cabinet manufacturing
Steel service centers
Industrial parts processing
| Features | Details |
|---|---|
| Material | Steel, Aluminum, Stainless Steel |
| Process | Deburring, Edge Rounding |
| Material Thickness | 0 – 80 mm |
| Max. Material Width | 1350 mm |
| Min. Part Dimensions | 50 x 50 mm |
| Holder System | Magnetic (Vacuum Optional) |
| Abrasive Belt Size | Φ1910 mm × 1350 mm |
| Flap Wheels Quantity | 8 pcs |
| Flap Wheel Dimensions | Ø300 mm × 400 mm |
| Sanding Belt Type | Heavy-duty industrial sanding belt |
| Machine Type | Dry deburring and rounding machine |
| Application Industries | Sheet metal, fabrication, automotive |
The 1350mm Deburring and Edge Rounding Machine is designed to efficiently remove burrs formed during flame cutting, laser cutting, plasma cutting, shearing, punching, and waterjet cutting processes. It ensures sharp edges are rounded and surfaces are smoothed, significantly enhancing both the safety and aesthetic of metal parts.
Equipped with high-performance abrasive belt and flap wheel stations, this machine is suitable for steel, aluminum, and stainless steel materials, delivering consistent results across various part sizes and thicknesses.
This machine is ideal for:
Laser cut parts
Plasma cut parts
Flame cut metal components
Sheared and punched sheets
Waterjet cut metal
Burr and sharp edge removal
Edge rounding (up to R2.0 possible depending on configuration)
Surface smoothing and preparation for further processing (coating, painting, welding)
It is widely used in:
Metal fabrication workshops
Automotive and chassis part production
Electrical enclosures and cabinet manufacturing
Steel service centers
Industrial parts processing
| Features | Details |
|---|---|
| Material | Steel, Aluminum, Stainless Steel |
| Process | Deburring, Edge Rounding |
| Material Thickness | 0 – 80 mm |
| Max. Material Width | 1350 mm |
| Min. Part Dimensions | 50 x 50 mm |
| Holder System | Magnetic (Vacuum Optional) |
| Abrasive Belt Size | Φ1910 mm × 1350 mm |
| Flap Wheels Quantity | 8 pcs |
| Flap Wheel Dimensions | Ø300 mm × 400 mm |
| Sanding Belt Type | Heavy-duty industrial sanding belt |
| Machine Type | Dry deburring and rounding machine |
| Application Industries | Sheet metal, fabrication, automotive |
