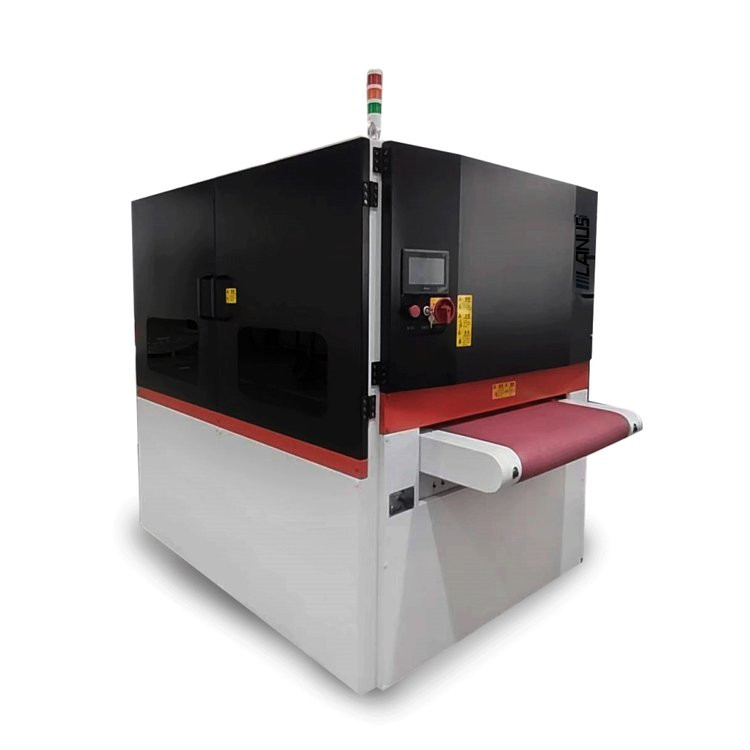

1350mm Deburring Machine for Lasered Punched And Nibbled Parts

1350mm Deburring Machine for Lasered, Punched, and Nibbled Parts

Configurable with 1 to 3 Grinding Stations

This high-performance sheet metal deburring and edge rounding machine is specially designed for processing laser-cut, punched, and nibbled parts. The machine offers flexible configuration options to meet various production and surface finishing requirements.

✅ Configuration Options:

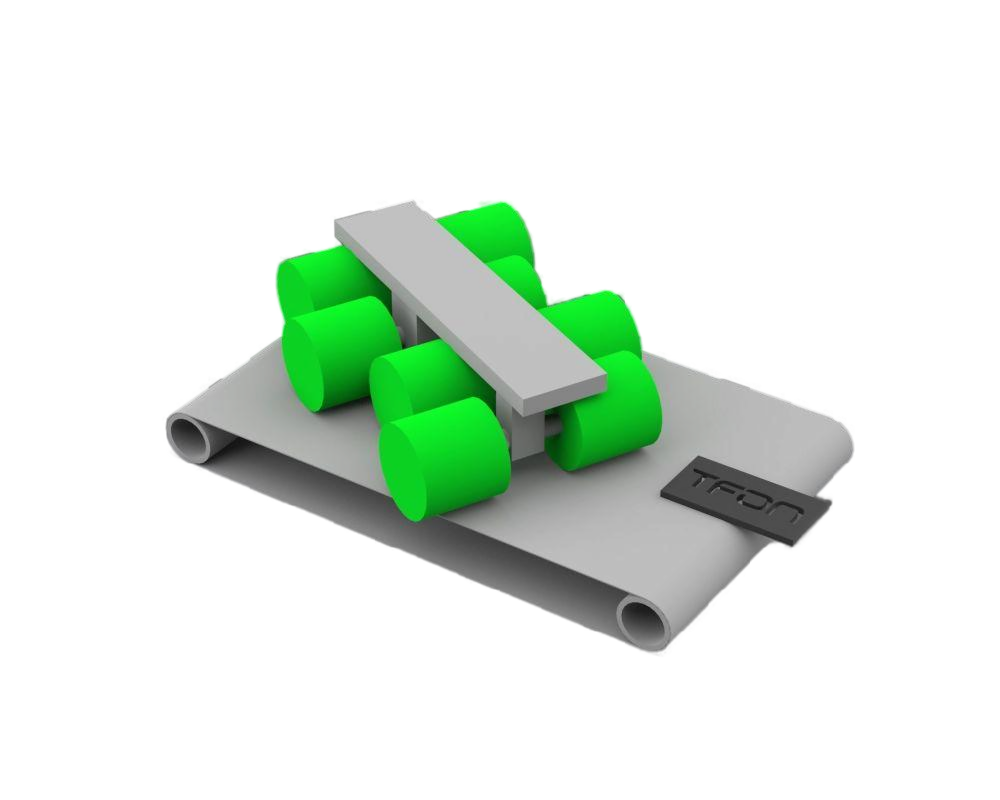

• 1-Head Model:

• Equipped with 1 Universal Rotating Brush Head

• Suitable for basic deburring and edge rounding

• Ideal for thin sheets and small batch processing

• 2-Head Model:

• Combination of 1 Wide Abrasive Belt + 1 Universal Brush Head

• Offers slag removal and uniform edge rounding

• Suitable for parts with heavier burrs or oxide layers

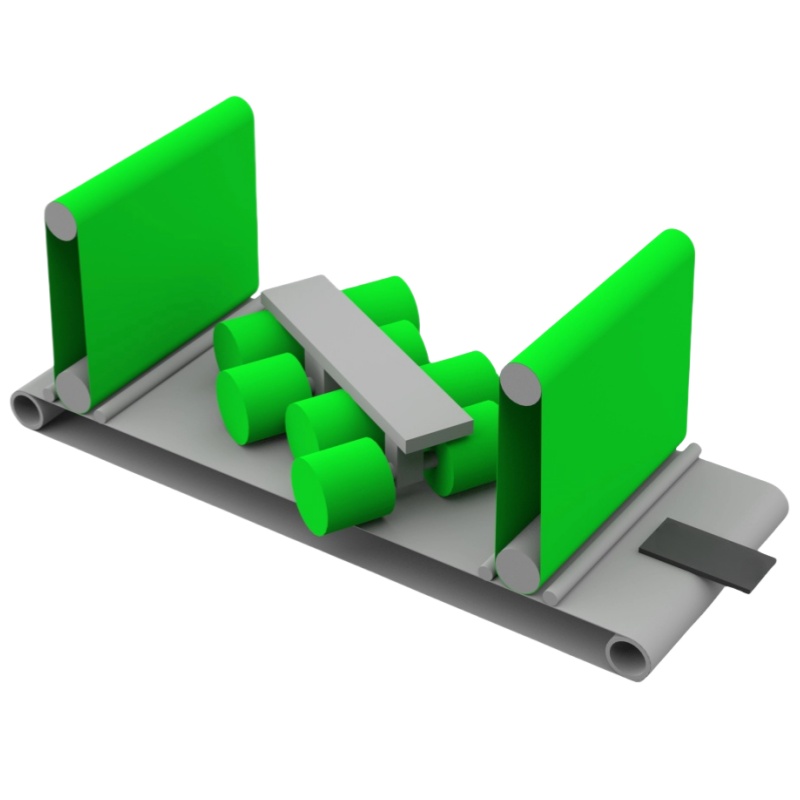

• 3-Head Model:

• Equipped with 2 Wide Abrasive Belts + 1 Universal Brush Head

• Enables aggressive grinding, fine deburring, and R2 edge rounding in a single pass

• Ideal for high-volume, precision metal finishing

Main Features:

• Working Width: 1350 mm

• Material Support: Carbon steel, stainless steel, aluminum, copper

• Processing Thickness: Typically 0.5 mm – 80 mm

• Minimum Part Size: Down to 50 mm × 50 mm (with vacuum table)

• Applications:

• Deburring

• Edge rounding (up to 2mm radius)

• Oxide layer removal

• Surface finishing / grain uniformity

• Conveyor System: Optional magnetic or vacuum hold-down for small parts

• User Interface: Intelligent touchscreen HMI with process memory

• Dust Collection: Integrated or external port for dry grinding

⚙️ Benefits:

• Modular design for scalable production needs

• Processes all four edges and inner contours in one pass

• Achieves consistent, high-quality finishes superior to manual work

• Low consumable and maintenance cost

• Increases production efficiency and improves safety
