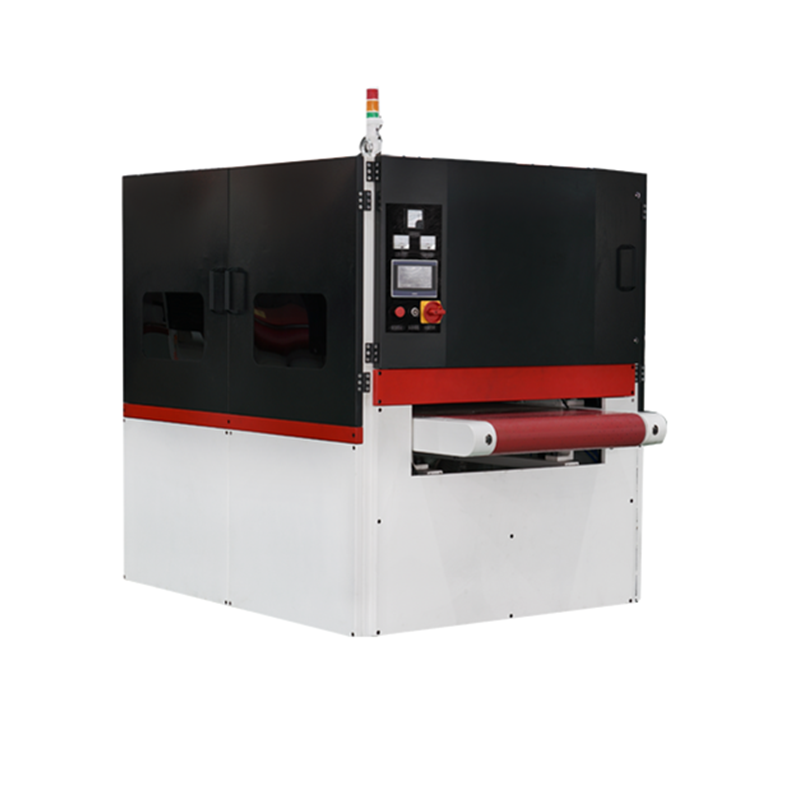

The 1350mm Universal Working Center is a versatile and high-performance machine designed specifically for deburring, finishing, and processing both ferrous (e.g., carbon steel, stainless steel) and non-ferrous materials (e.g., aluminum, copper). Its modular design and advanced features make it an ideal solution for industries requiring precise, high-quality surface treatment of large parts and materials.
Working Width: 1350 mm
Main Working Units: 1 to 4
Constant Pass-Line: Adjustable from 900 to 1000 mm (from floor)
Abrasive Belt Length: Φ1910mm × 1350mm
Maximum Part Weight: Up to 400 kg
Modular Configuration: Customizable with up to 4 internal working units and 2 auxiliary units
The 1350mm Universal Working Center is built for efficiency in deburring, surface finishing, oxide removal, and edge rounding. The machine can handle large parts, making it ideal for industries like automotive, aerospace, construction, and heavy machinery manufacturing.
Deburring:
Deburring refers to the process of removing sharp edges, burrs, or rough edges left on parts after cutting, punching, or other fabrication processes.
The machine is capable of efficiently deburring stainless steel, carbon steel, aluminum, and copper, ensuring smooth edges and removing unwanted material for both aesthetic and functional purposes.
Edge Rounding:
The machine can be configured with units that provide edge rounding, improving the safety and ergonomics of parts by rounding sharp edges with precise control, even on complex geometries.
This is especially important for aluminum and copper components where sharp edges can cause issues during further processing or assembly.
Oxide Removal:
The machine is well-suited for oxide removal, particularly on stainless steel and aluminum. Oxide layers form on metal surfaces during high-temperature processes such as welding or laser cutting. The deslagging unit and sectioned pads work together to remove these contaminants, leaving a clean surface ready for additional processing like polishing or coating.
Surface Finishing:
For industries that require high-quality surface finishes, the Scotch Brite unit, longitudinal brushes, and planetary units work to achieve a consistent finish across large workpieces. These units provide a uniform, fine surface finish, ideal for aesthetic purposes or components that require high standards of surface integrity.
Modular Configuration:
Thanks to the modular design, this working center can be tailored to meet specific application needs. Whether it's deslagging, polishing, deburring, or oxide removal, you can insert the required units for each application, making the machine extremely adaptable.
The system allows for up to 4 internal working units and 2 auxiliary units (e.g., rotary brush head carousel, planetary unit) for maximum flexibility.
Deslagging Unit:
Removes heavy slag and burrs formed during laser cutting, flame cutting, or other high-temperature processes.
Cylinder:
For abrasive processing of large surfaces, removing burrs and smoothing rough edges on metal plates.
Sectioned Pad:
A specialized pad that works for delicate applications, especially for polishing or finishing in tight or irregular shapes.
Longitudinal Brush:
Brushes designed for the finishing of long, linear surfaces, ensuring consistent removal of contaminants and edges.
Scotch Brite™:
A finishing unit that provides a uniform and smooth finish on parts made of stainless steel, aluminum, and other materials.
Longitudinal Brush with Abrasive Inserts:
Combines brushing and abrasive action for more aggressive material removal and surface finishing.
Planetary Unit:
A flexible unit that uses multiple brushes to remove burrs, polish surfaces, and finish edges in a uniform pattern.
Vertical Cross Brushes:
These brushes are ideal for fine finishing and polishing tasks, especially for parts that require multiple angular orientations.
Rotary Brush Head Carousel:
A specialized carousel system for rotating brush heads that handle complex geometries and provide even, consistent finishing across all workpieces.
Stainless Steel:
The system excels in oxide removal, deburring, and polishing of stainless steel, which is commonly used in the food, medical, and automotive industries.
Carbon Steel:
Works effectively in deburring, oxide removal, and finishing of carbon steel, which is widely used in construction, machinery, and tooling.
Aluminum:
Ideal for edge rounding, deburring, and surface finishing of aluminum components, commonly found in aerospace, automotive, and electronics manufacturing.
Copper:
Copper components benefit from smooth finishing, oxide removal, and deburring, critical for electrical components and HVAC systems.
The 1350mm Universal Working Center for Deburring and Finishing is a highly adaptable and robust machine designed for industrial applications requiring heavy-duty deburring, oxide removal, edge rounding, and surface finishing. Its ability to process large parts weighing up to 400 kg and its modular design make it an excellent choice for high-volume manufacturing environments, including those in the automotive, aerospace, and construction industries. The machine ensures consistent results, reducing operating costs and consumable wear while optimizing the production process.
