G120P/G170P/G240P

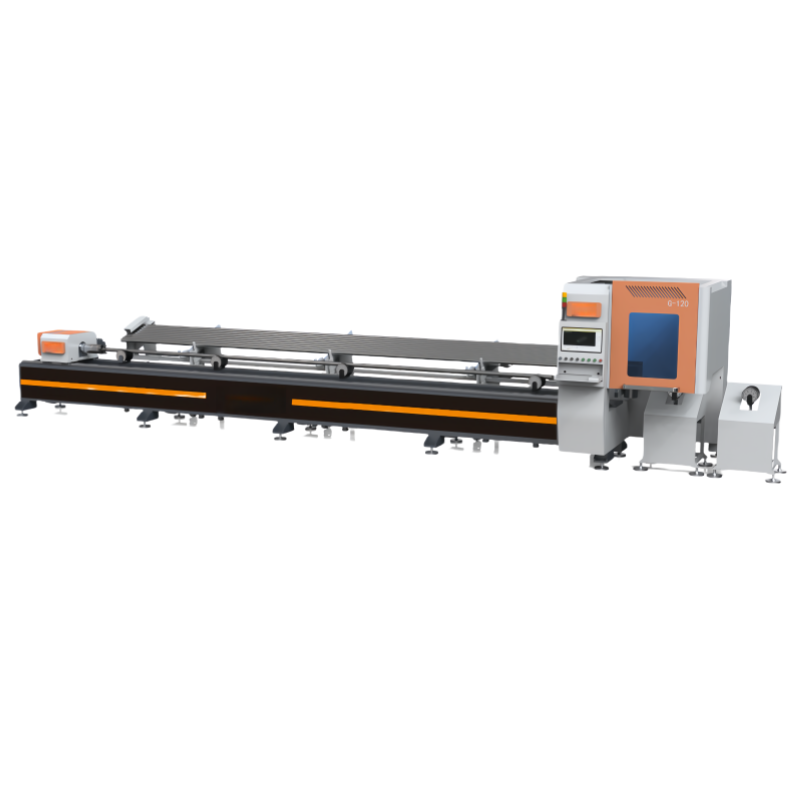

Machine Name: G120P/G170P/G240P 3D Laser Tube Cutting Machine
Key Features:
Fully Automated Feeding System: Saves time and labor, with a simple structure and easy operation.
Increased Efficiency: Cutting efficiency is 5-6 times faster than regular tube cutting machines.
Minimal Scrap: Reduced blind spots for leftover material, saving material costs and reducing post-processing steps.
Control Over Scrap Length: Scrap length can be controlled to zero, drastically reducing material waste.
Adaptive Cutting: Equipped with an integrated height adjuster to handle deformed tubes effortlessly.
Machine Bed Structure:
Compact Design: The machine's compact structure minimizes space usage while maintaining stability and high cutting speeds. It’s built with rigorous welding and annealing processes to ensure long-term stability and accuracy, suitable for 24/7 industrial use without deformation.
Automatic and Semi-Automatic Feeding Systems:
Automatic Feeding System: Full automation for more efficient handling.
Semi-Automatic Feeding System: Easier and less costly feeding for smaller setups.
Top-Quality Laser Generator:
Laser Source: Chuangxin/Reci brand, known for modular design and stable performance.
Customization: Fiber optic customization allows for different cutting needs, adaptable to various industries.
Laser Cutting Head: Compatible with multiple laser sources, providing efficient, high-quality cutting.
Cooling System:
Hanli Brand: Stainless steel circulation pumps and advanced control systems for temperature precision. Ensures optimal cooling for the laser machine to prevent overheating.
Machine Specifications:
| Model | G120P | G170P | G240P |
|---|---|---|---|
| Laser Power (W) | 1500-6000 | 1500-6000 | 1500-6000 |
| Cutting Tube Diameter (mm) | Φ: 10-120, □: 10-120 | Φ: 10-170, □: 10-170 | Φ: 10-240, □: 10-240 |
| Repeatability (mm) | ±0.02 | ±0.02 | ±0.02 |
| Cutting Tube Range (mm) | ≈6250 | ≈6250 | ≈6250 |
| Machine Dimensions (mm) | 8856 x 1365 x 2172 | 8856 x 1365 x 2172 | 8856 x 1365 x 2172 |
| Weight (T) | ≈3.5 | ≈3.5 | ≈4.5 |
| Acceleration (G) | ≈1.6 | ≈1.3 | ≈1.0 |
| Scrap Length (mm) | ≈60 | ≈80 | ≈100 |
Standard Accessories:
Fiber Laser Generator: MAX/Reci
Laser Cutting Head: Jiaqiang/Osprey/Bocis
Control System: BaiChu FSCUT3000

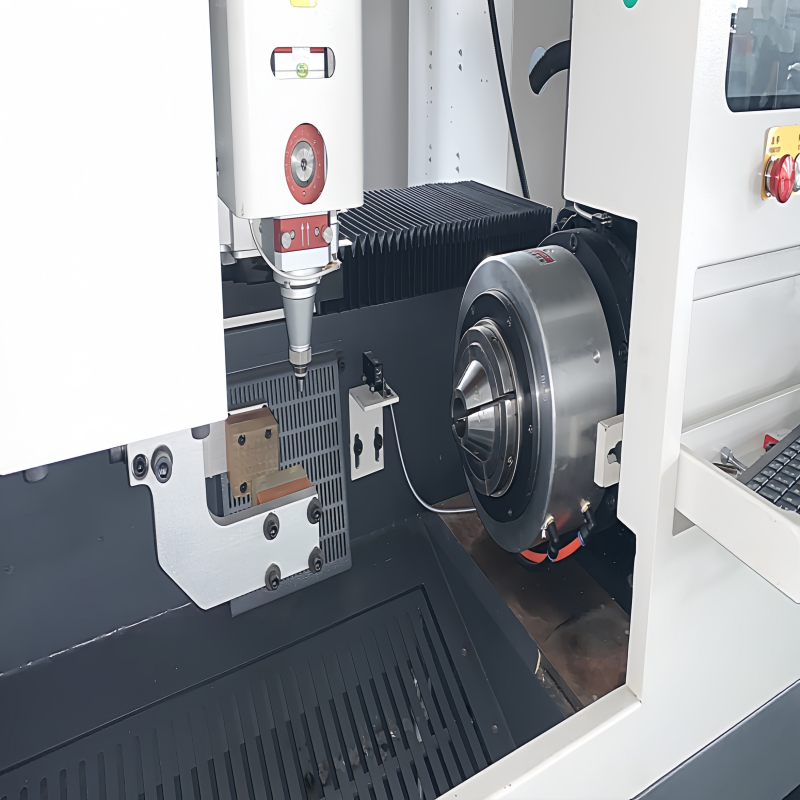

Precision Chuck: Precision pneumatic chuck with a high repeatability of 0.01 mm.
Cooling System: Hanli Brand Chiller
Operating Environment:
Laser Environment Requirements: Temperature between 15°C and 35°C, relative humidity under 85%.
Electrical Requirements: 380V/50Hz with short circuit protection.
Grounding: Equipment should be grounded, with a resistance of no more than 4Ω.
Air Supply: Compressed air must meet the specified pressure for both regular and assistive gases.
